The Agricut Series is Spearhead’s entry level topper offering reliability, performance and value for money, and is ideal for vegetation maintenance in agricultural and amenity applications.

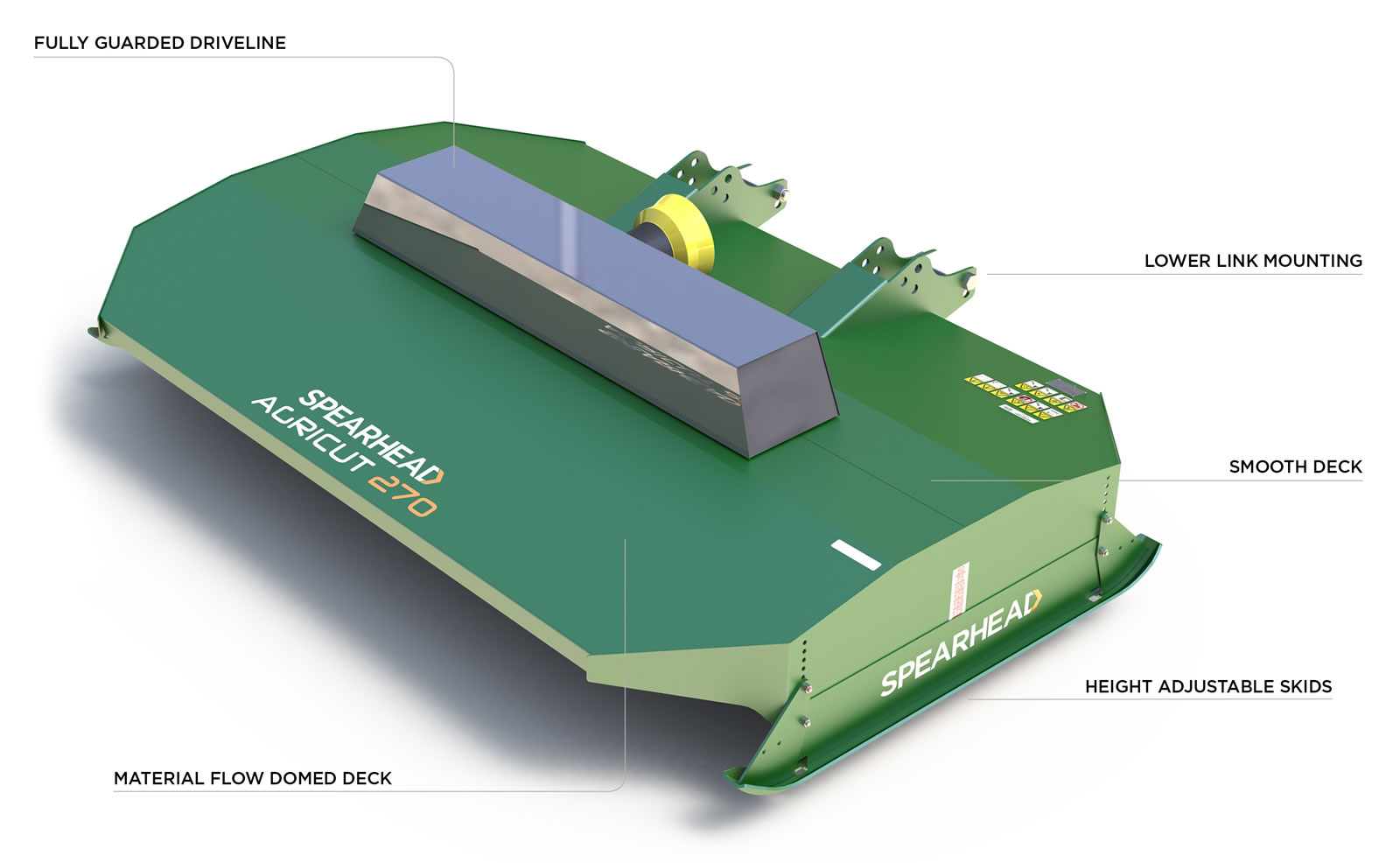

Benefiting from a smooth deck, the streamlined design is both sleek and easy to clean, whilst the free swinging special high-lift blades reduce shock loading through the drivetrain and provide suction to lift the material into the cutting zone. Cut height is easily adjusted by the simple movement of two parabolic skids mounted either side of the deck.

With working widths from 1.8 to 2.7 metres, including a 2.4 metre offset model the Agricut is ideal for those seeking a high output topper at an economical price.




AGRICULTURE
PASTURE
AMENITY
LIGHT SCRUB

Features

  • Heavy Duty Driveline – Through hardened blade carriers and blades to withstand hard impact and working conditions
  • Parabolic Adjustable Skids – Smooth skid to ensure an anti-scalping finish with adjustable cutting height between 3 and 9 cm

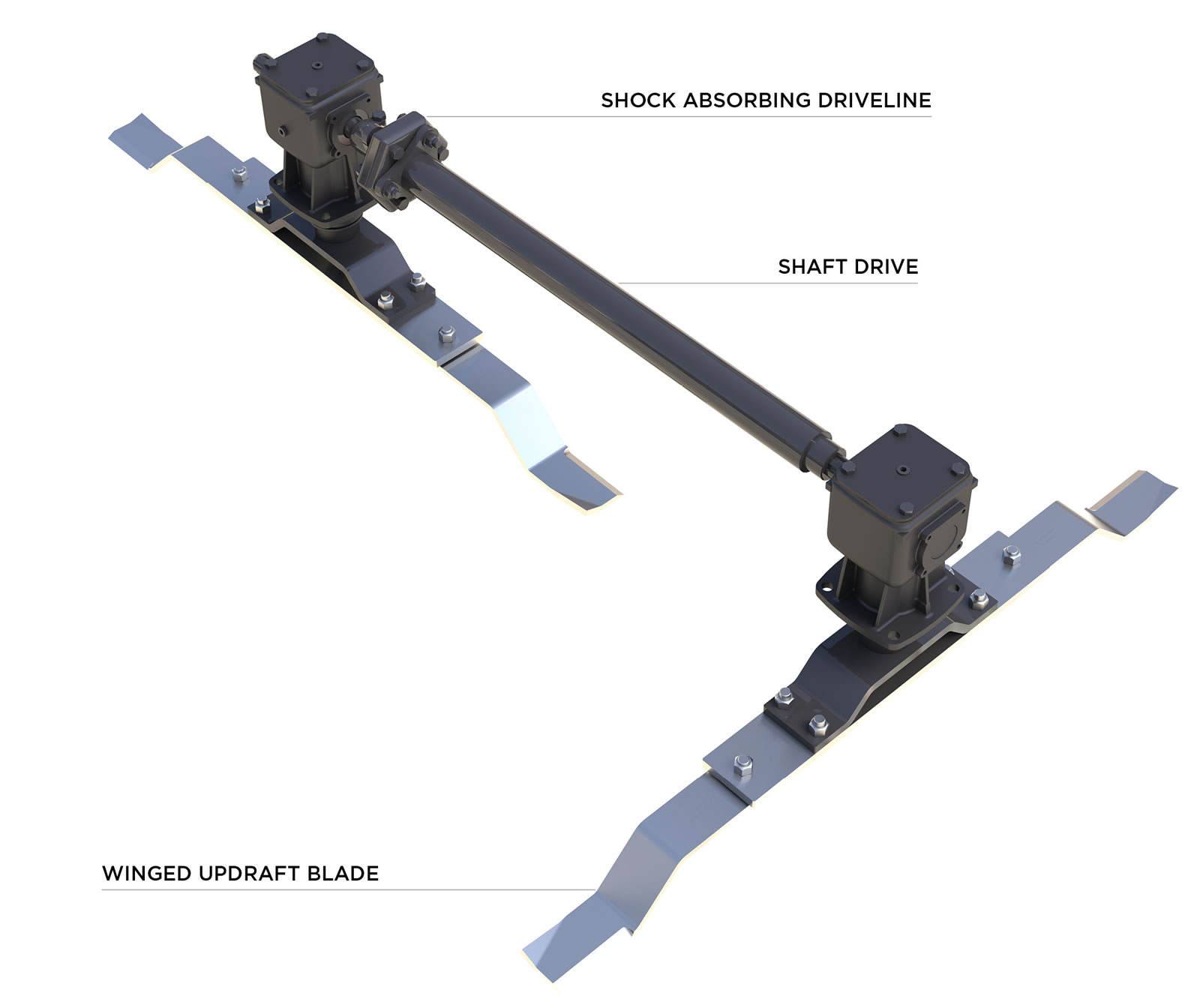

  • Shock Absorbing Driveline – The driveline is protected by shock absorbing rubber couplings with free-swinging special high-lift blades
  • Adjustable headstock – Agricut 180 and 270 feature three position, movable headstock. The Agricut 240 features a fixed offset ability

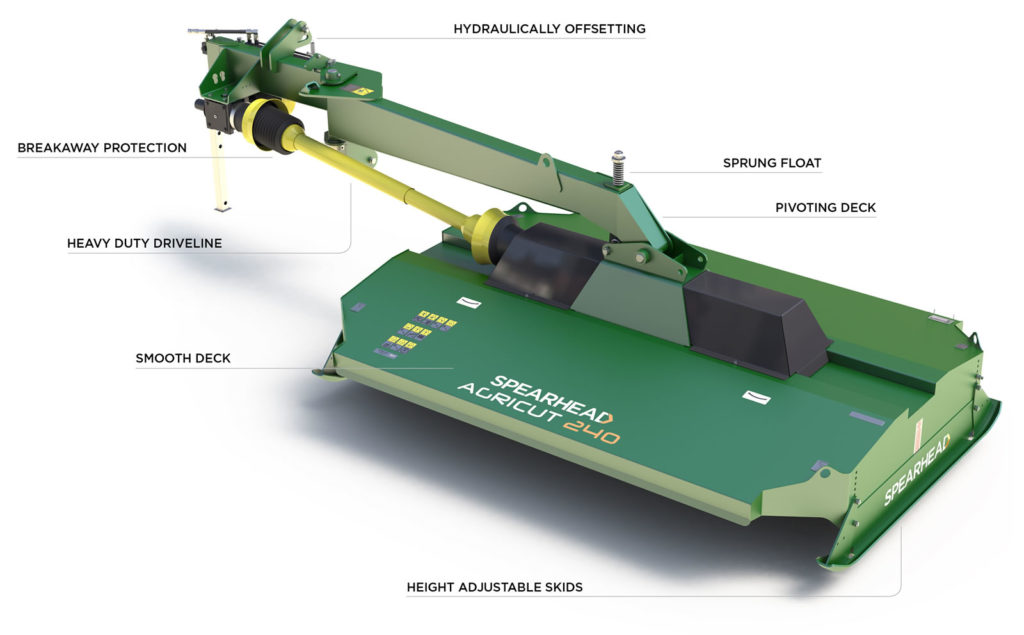

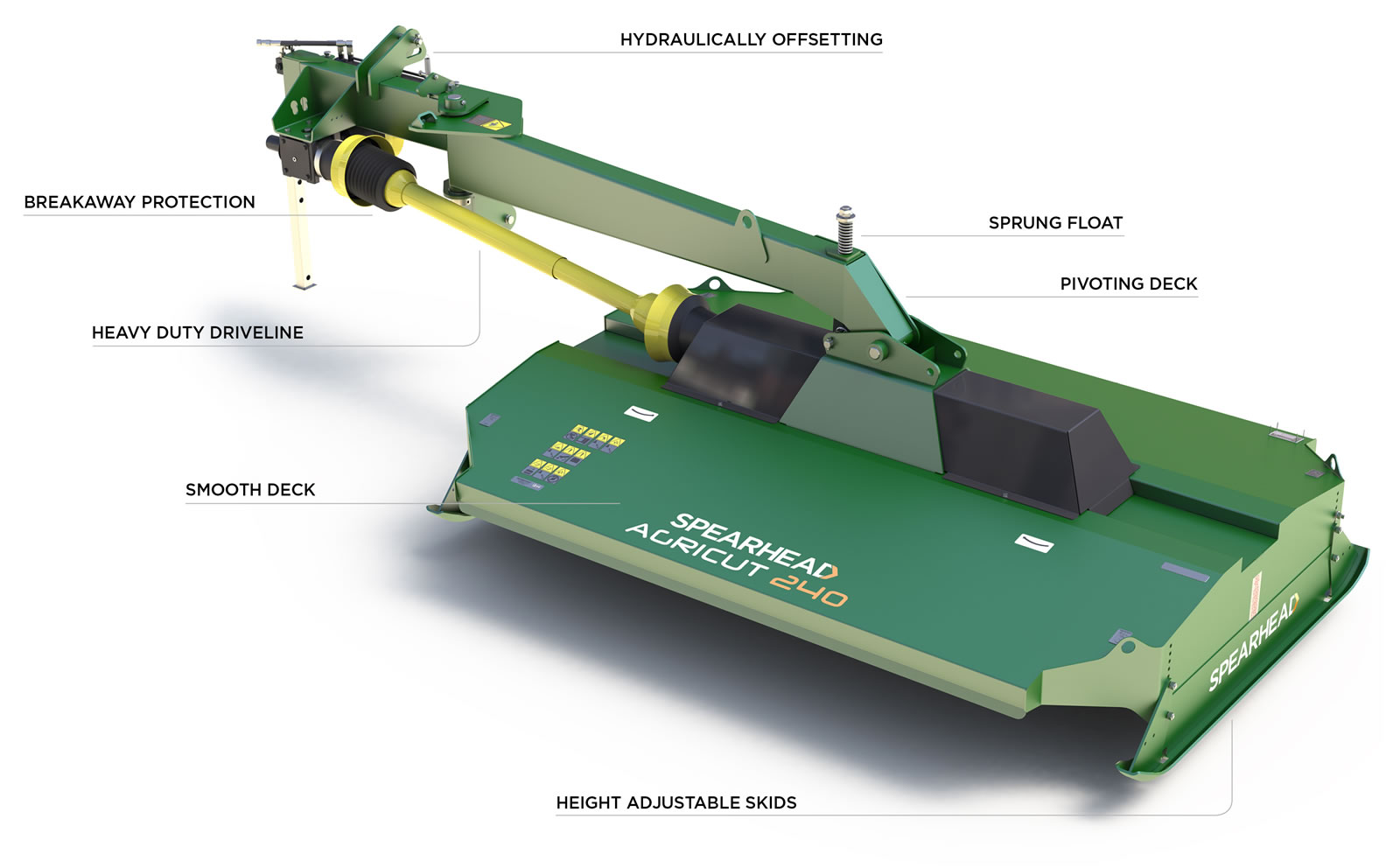

AGRICUT 240 OFFSET DRIVELINE

AGRICUT 240 OFFSET DRIVELINE

Specifications

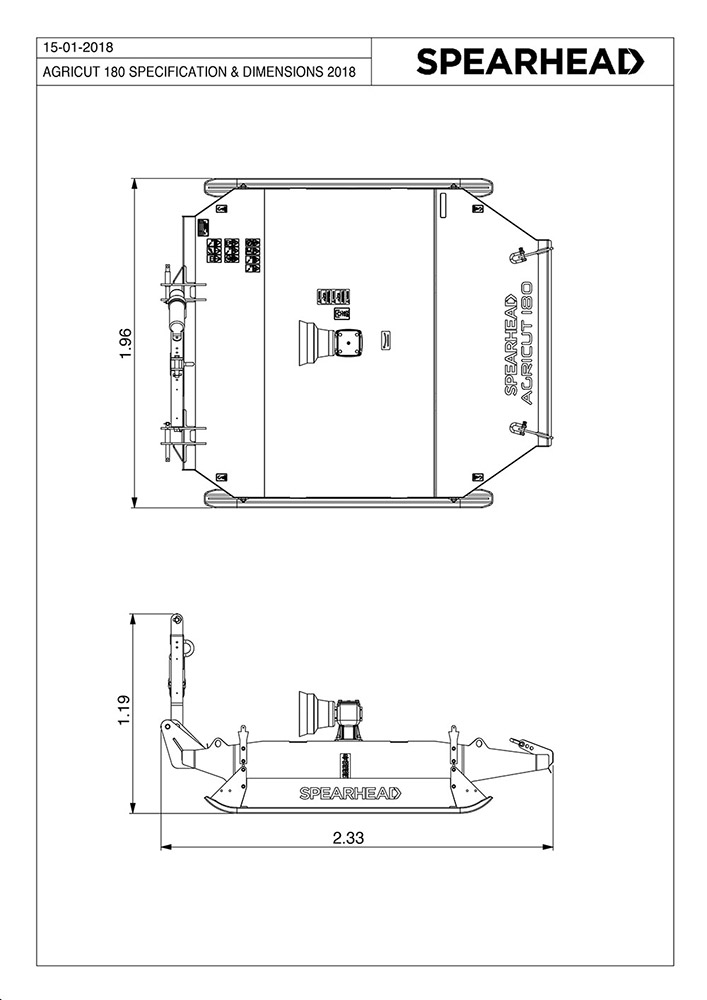

Machine weight: 290kg / 640lbs
Hitch: Category 1 and 2
Cutting width: 1.79m / 70.5″
Overall width: 1.96m / 77″
Overall length: 2.33m / 91.75″
Deck Height*: 0.42m/16.5″
Cutting height: 30mm – 150mm (1.25″ – 6″)
Cutting capacity: 30mm (1 3/16″)
Maximum Offset Distance: 0.22m / 8.6″
Recommended Tractor HP: 30hp / 22kW
Power Take-off Speed: 540rpm
Gearbox [rotor gearbox (x1)]: Beveled gears with Cast Iron housing
Input shaft: 1 3/4″ – 6 spline input shaft and 40mm output shaft
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 0.8m litres / 1.7 pints
Deck construction: All welded construction
Deck material thickness: 3mm (0.12″)
Side skirt material thickness: 4mm (0.16″)
Skid construction: Replaceable bolt on skid
Blades (2): Boron Alloy Steel. Free swinging, low friction
Blades bolts: M16 C/W Shank Grade 8.8
Blades tip speed: 74mps / 14567fpm
Driveline: ASAE Category 3
Driveline Protection: Shear bolt

*Underside of deck to skid
**Dependent on conditions

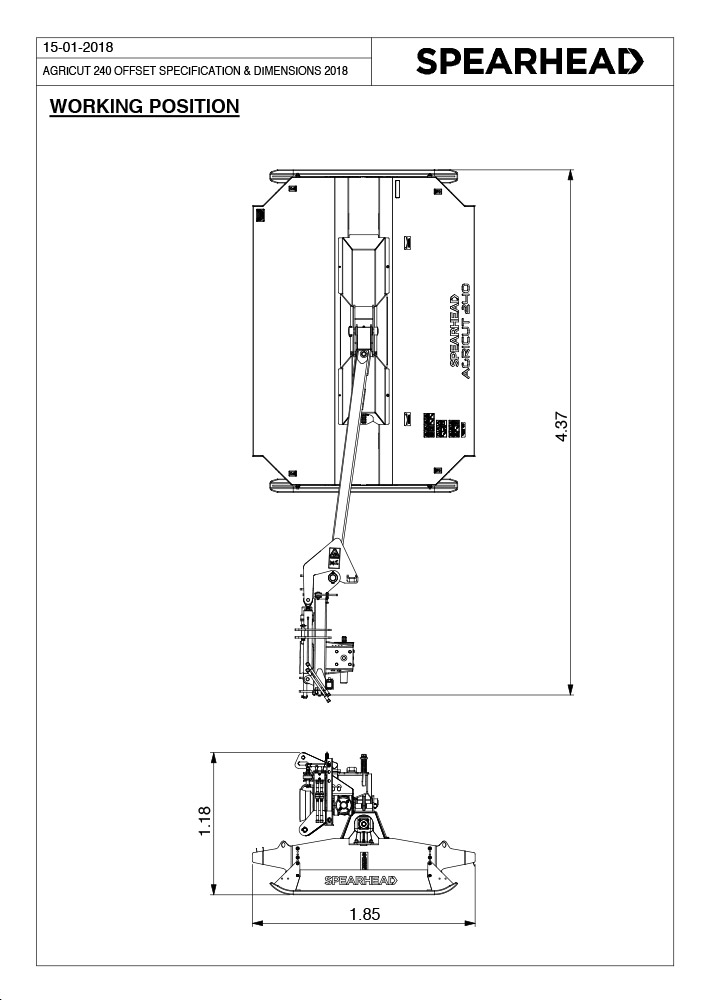

Machine weight: 550kg / 1213lbs
Hitch: Category 2
Cutting width: 2.51m / 98″
Working overall width: 1.96m / 77″
Working overall length: 2.33m / 92″
Transport overall width: 1.84m / 73″
Transport overall length: 3.68m / 145″
Deck height*: 0.42m / 17″
Cutting height: 30mm – 150mm (1 3/16″ – 6″)
Cutting capacity: 30mm (1 3/16″)
Maximum offset distance (from centre of tractor): 4.35m / 171 “
Recommended tractor HP: 30hp / 22kW
Power take-off speed: 540rpm
Gearbox [(x3)]: Cast Iron housing
Input shaft: 1 3/4″ – 6 spline input shaft
Gearbox Lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 0.8m litres / 1.7 pints
Deck construction: All welded construction
Deck material thickness: 3mm (1/8″)
Side skirt material thickness: 4mm (3/16″)
Skid Construction: Replaceable bolt on skid
Blades (4): Boron Alloy Steel. Free swinging, low friction
Blades bolts: M16 C/W shank grade 8.8
Blades tip speed: 69mps / 13582fpm
Driveline: ASAE Category 3
Driveline protection: Shear bolt

*Underside of deck to skid
**Dependent on conditions

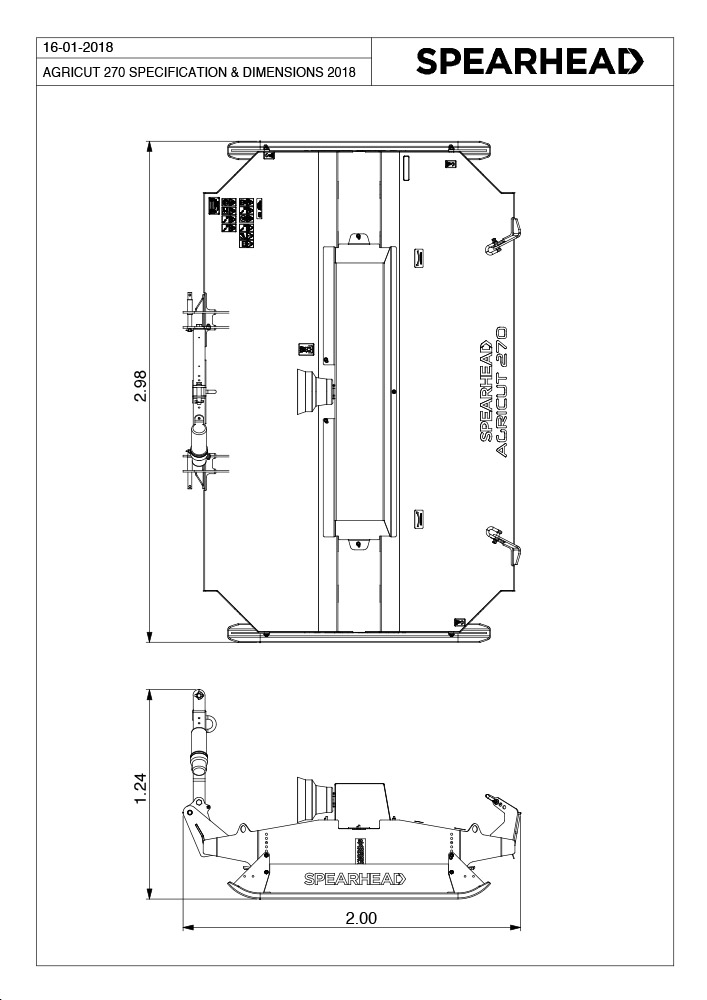

Machine weight: 430kg / 948lbs
Hitch: Category 2
Cutting width: 2.80m / 71″
Working overall width: 2.98m / 117″
Working overall length: 2.04m / 81″
Deck Height*: 0.42m / 17″
Cutting height: 30mm – 150mm (1 3/16″ – 6″)
Cutting capacity: 30mm (1 3/16″)
Recommended Tractor HP: 30hp / 22kW
Power Take-off Speed: 540rpm
Gearbox [(x3)]: Cast Iron housing
Input shaft: 1 3/4″ – 6 spline input shaft
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 0.8m litres / 1.7 pints
Deck construction: All welded construction
Deck material thickness: 3mm (1/8″)
Side skirt material thickness: 4mm (3/16″)
Skid construction: Replaceable bolt on skid
Blades (4): Boron Alloy Steel. Free swinging, low friction
Blades Bolts: M16 C/W shank grade 8.8
Blades Tip Speed: 77mps / 15157fpm
Driveline: ASAE Category 3
Driveline Protection: Shear bolt

*Underside of deck to skid
**Dependent on conditions
