The Spearhead Rolliflail mower is designed for light-duty amenity mowing and gives a high-quality finish in material up to 20mm. It excels in parkland, golf course, orchard and topping applications and is the perfect choice for mounting on compact tractors.

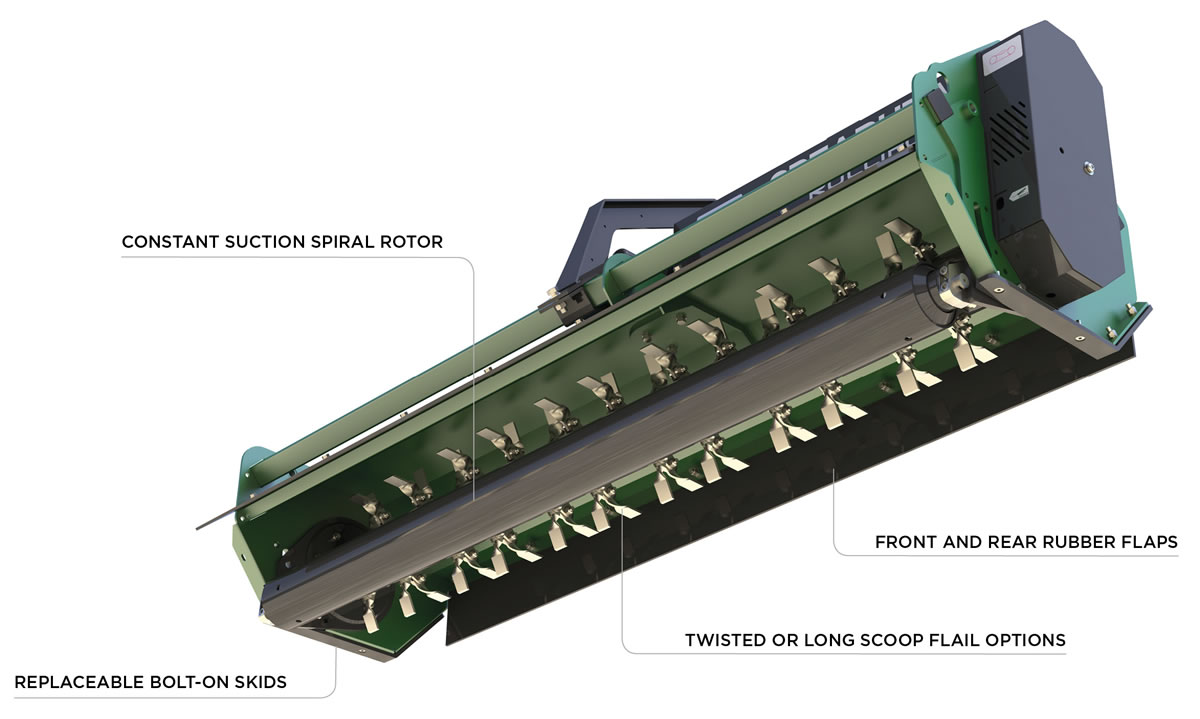

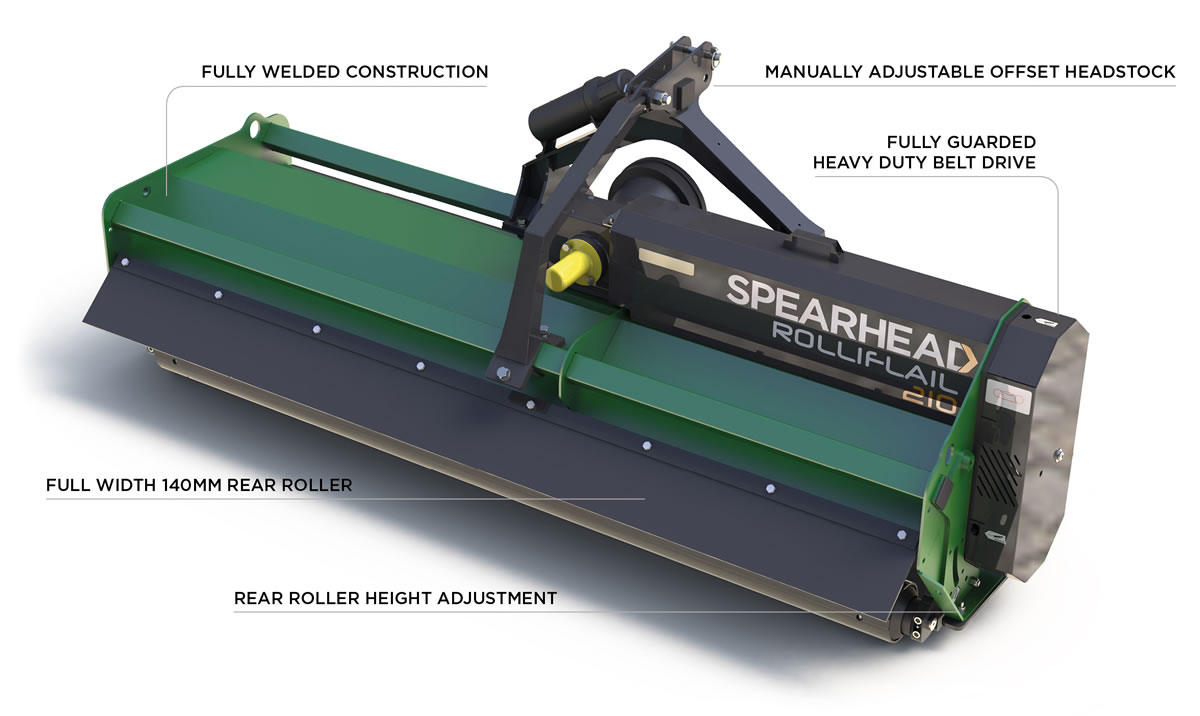

This versatile machine features fine cut flails on a constant suction double spiral rotor. Belt drive gives reliable power transmission and a 140mm full width adjustable rear roller with rubber flap will ensure a quality cut and well distributed finish.

The Rolliflail range is available in a choice of working widths between 1.5 and 2.1 metres being able to be front or rear mounted thanks to a reversible headstock.

PASTURE
AMENITY

Features

Rolliflail
Rolliflail


Specifications

Machine weight: 360kg (794lbs)
Hitch: Category 2 with clevis top link
Hitch position: Front and rear mount
Cutting width: 1.45m (4′ 9″)
Overall width:1.79m (5′ 11″)
Overall length: 0.87m (2′ 11″)
Cowl height: 610mm (2′)
Cutting height: 15mm – 100mm (0.6″ – 3.9″)
Cutting capacity: 20mm (0.8″)
Recommended tractor HP: 40hp (30kW)
Power take-off speed: 540rpm
Gearbox: Cast iron housing
Input shaft: 1-3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 1 litre (1.8 pints)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flails: Twisted or long scoop flail
Flail quantity: 48
Flail tip speed: 48 m/s (9448 fpm)
Roller diameter: 140mm (5.5″)
Number of belts: 2

Machine weight: 400kg (882lbs)
Hitch: Category 2 with clevis top link
Hitch position: Front and rear mount
Cutting width: 1.81m (5′ 11″)
Overall width:2.15m (7′ 11″)
Overall length: 0.87m (2′ 11″)
Cowl height: 610mm (2′)
Cutting height: 15mm – 100mm (0.6″ – 3.9″)
Cutting capacity: 20mm (0.8″)
Recommended tractor HP: 45hp (34kW)
Power take-off speed: 540rpm
Gearbox: Cast iron housing
Input shaft: 1-3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 1 litre (1.8 pints)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flails: Twisted or long scoop flail
Flail quantity: 60
Flail tip speed: 48 m/s (9448 fpm)
Roller diameter: 140mm (5.5″)
Number of belts: 2

Machine weight: 420kg (926lbs)
Hitch: Category 2 with clevis top link
Hitch position: Front and rear mount
Cutting width: 2.10m (6′ 10″)
Overall width:2.45m (8′ 1″)
Overall length: 0.87m (2′ 11″)
Cowl height: 610mm (2′)
Cutting height: 15mm – 100mm (0.6″ – 3.9″)
Cutting capacity: 20mm (0.8″)
Recommended tractor HP: 50hp (38kW)
Power take-off speed: 540rpm
Gearbox: Cast iron housing
Input shaft: 1-3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 1 litre (1.8 pints)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flails: Twisted or long scoop flail
Flail quantity: 70
Flail tip speed: 48 m/s (9448 fpm)
Roller diameter: 140mm (5.5″)
Number of belts: 2
