Machine weight*: 2440kg / 5379lbs
Hitch: Multi-positional drawbar
Cutting width: 4.60m / 15′ 1″
Working machine width: 4.79m / 15′ 9″
Transport machine width: 2.70m / 8′ 10″
Maximum working length: 4.91m / 16′ 1″
Transport length: 4.84m / 15′ 11″
Deck height**: 0.23m / 9″
Transport height: 2.17m / 7′ 2″
Cutting height: 25mm – 400mm (1″ – 16″)
Cutting capacity: 100mm / 4″
Wing working angles: 45° up / 15° down
Recommended tractor HP: 70hp / 52kW
Power take-off speed: 1000rpm (540rpm optional)

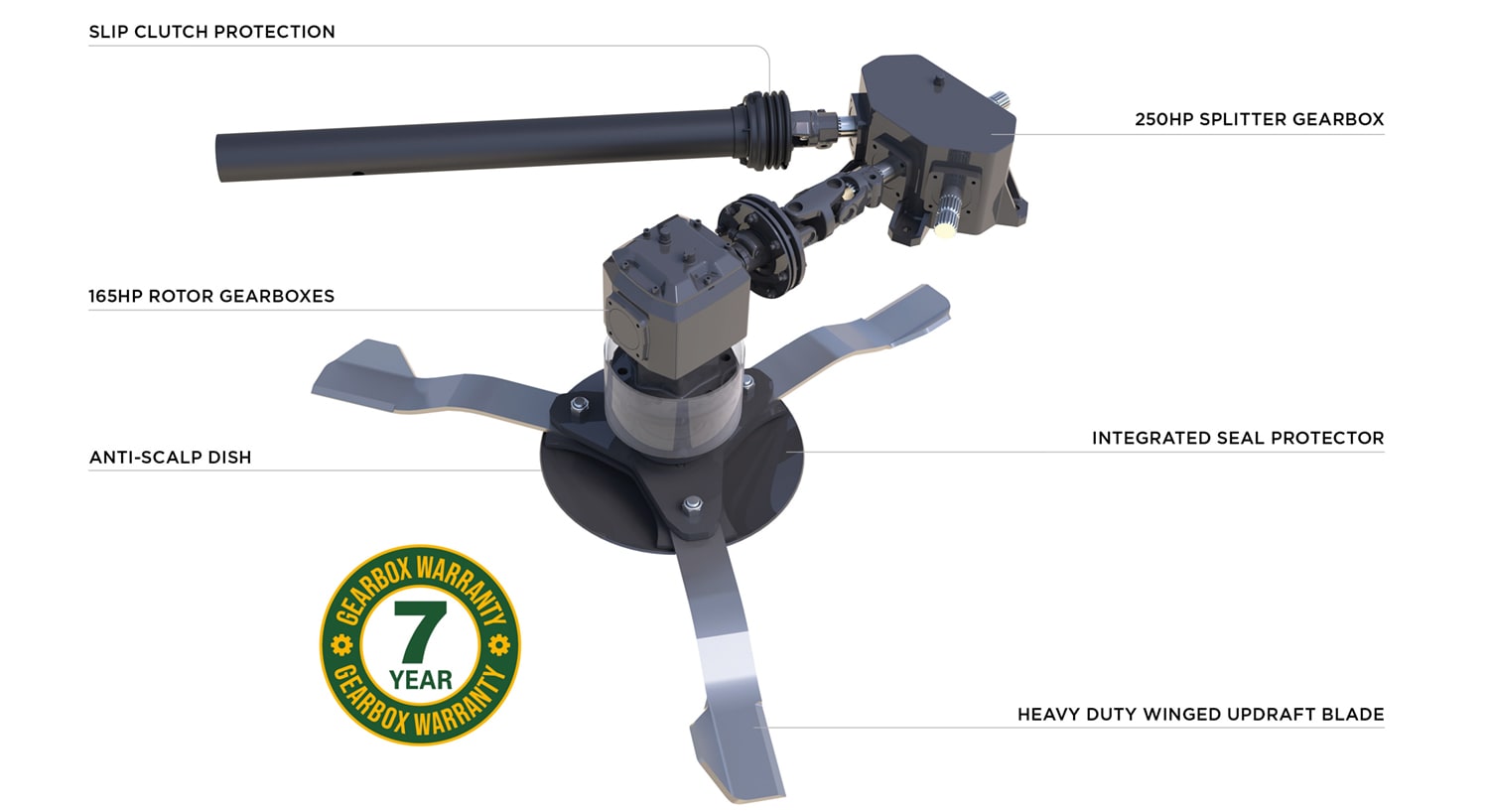

Gearbox [splitter]: Cast Iron housing
Gearbox [rotor (x3)]: Cast Iron housing
Input shaft: 1-3/8″ Z21 or Z6 SFT 6/8 tractor end
Gearbox lubricant [splitter]: EP80-90W or GL-4 / GL-5 oil
Gearbox lubricant [rotor]: 85W-140 oil
Gearbox oil capacity [splitter gearbox]: 2.7 litres / 4.7 pints
Gearbox oil capacity [rotor gearboxes (x3)]: 4.3 litres / 7.6 pints
Deck construction: All welded construction
Deck material thickness: 6mm (1/4″)
Side skirt material thickness: 5mm (3/16″)
Skid construction: Replaceable bolt on skid shoes
Anti-scalp dish: 6mm (1/4″) round pan with blade holder bar
Blades (9): 12mm (1/4″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction
Blade bolts: M24 C/W shank grade 8.8
Blade tip speed (1000rpm): 80mps / 15748fpm
Driveline: ASAE category 6
Driveline protection: 2-way slip clutches on rotor gearboxes. Overrun on input shaft
Tailwheel mount assemblies: Tubular welded axle
Tailwheels (x8): 600-9 10 PLY pneumatic tyre with steel hub
Front guard: Single chain guards on each deck
Rear guard: Single chain guards on each deck
*With front and rear single chain guards
**Underside of deck to skid
