Bringing together Spearhead’s renowned rotary mower heritage and a host of new features, the Multicut 630 is Spearhead’s next generation machine that offers a greater durability and a better finish than ever before.

With a cutting width of over 6.3m, covered by 5 cutting rotors featuring Spearhead’s well-established triple high-lift swinging blades, ensures a quality cut in the most demanding of working conditions. Further benefit of Spearhead’s Starcut mulching blade system fitted as standard makes the machine perfectly suitable in applications such as Stubble Management.

Easy to maintain, the Multicut 630 has all driveline clutches accessible under one easy to open splitter gearbox guard ensuring reliable and dependable drive to each of its powerful 165hp rotor gearboxes, further given with piece of mind in the form of an extended 7 year gearbox warranty.

High strength walking axles throughout the whole width of the machine fitted with heavy duty wide tyres, fine height adjustment on each independent hydraulic axle ram and enhanced baffling ensures a excellent, even spread of cut material from a robust machine you can rely on every time you need it.


AGRICULTURE
PASTURE
LIGHT SCRUB
HEAVY SCRUB
STUBBLE MANAGEMENT
AIRFIELD
HIGHWAYS

Features

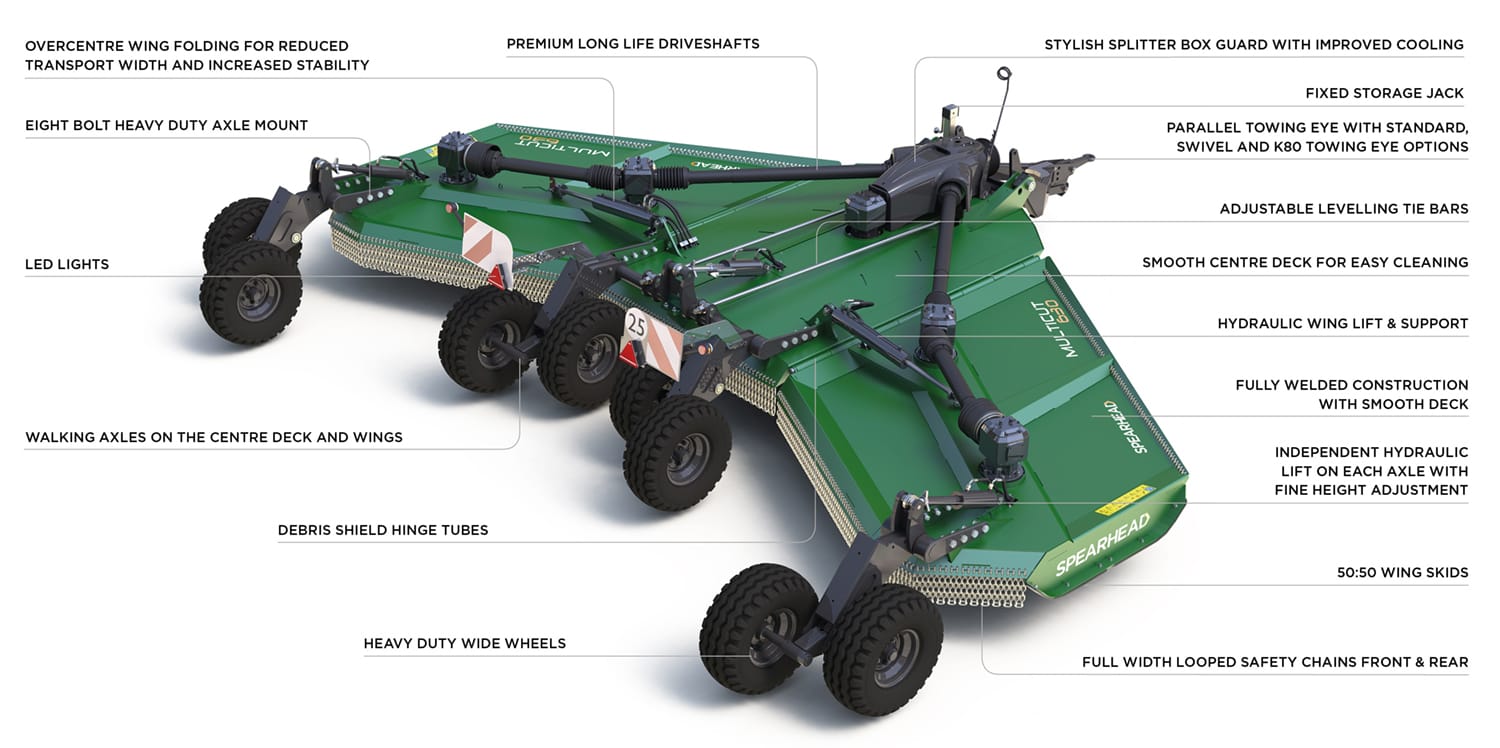

Multicut 630

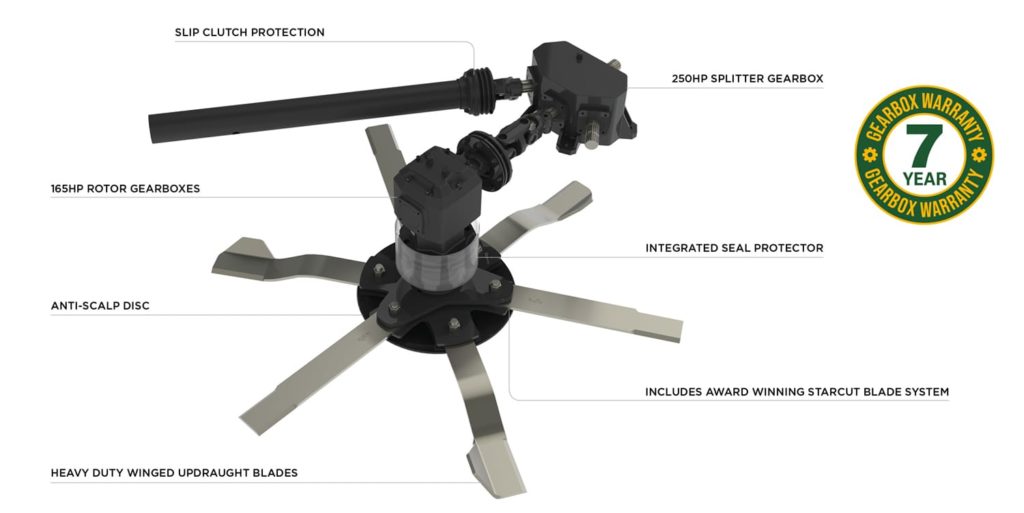

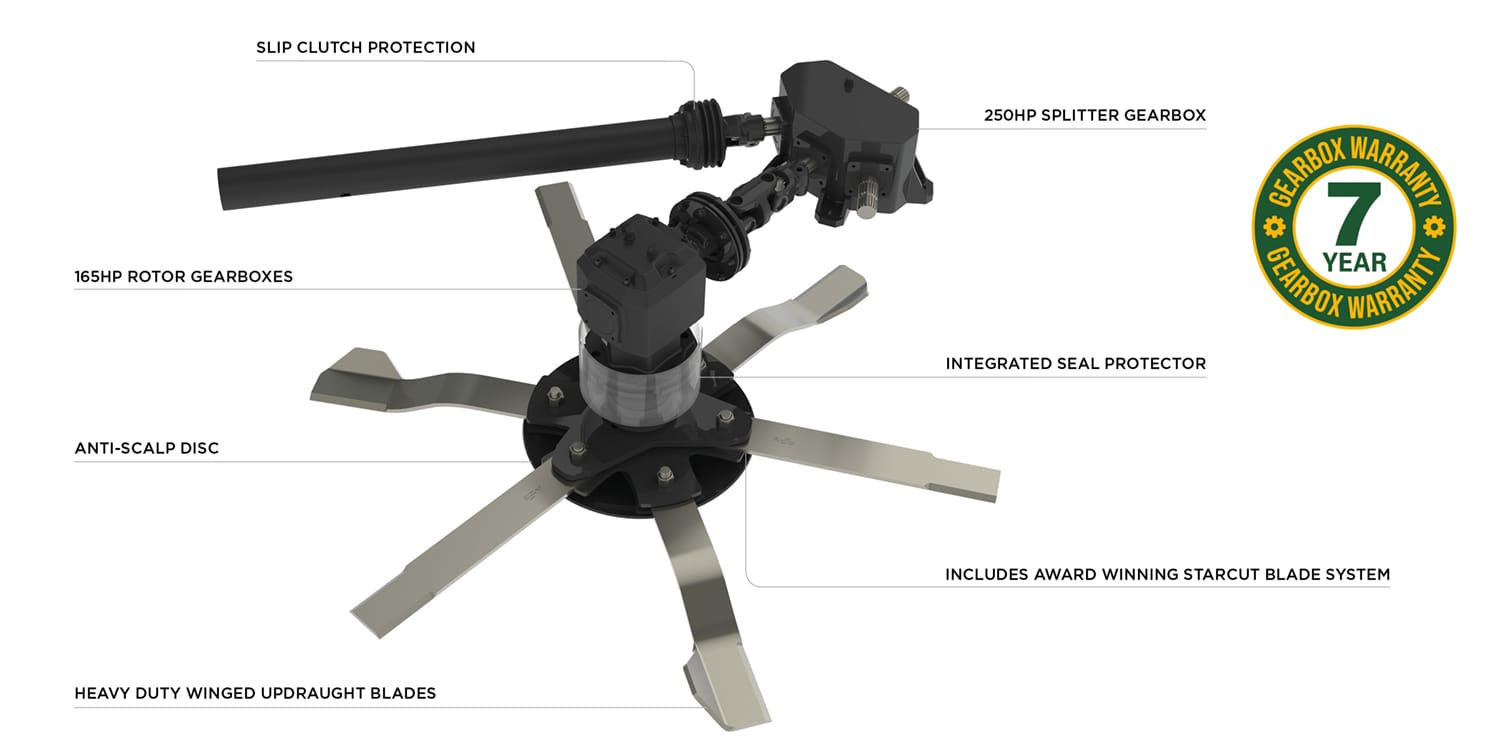

Multicut 630 Blades

Specifications

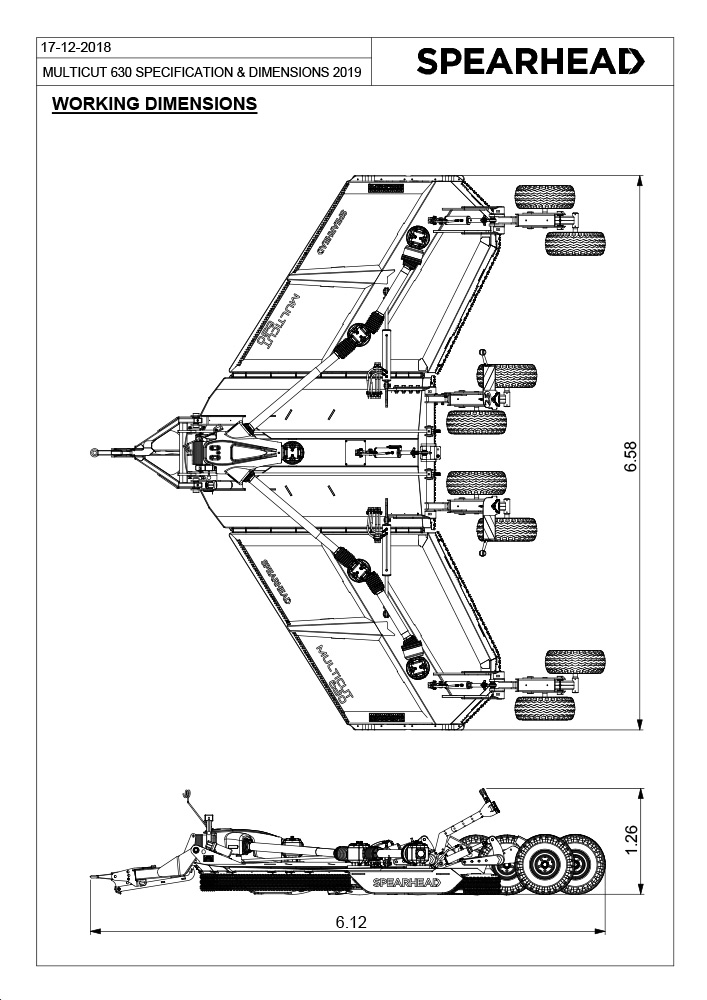

Multicut 630 Info_1

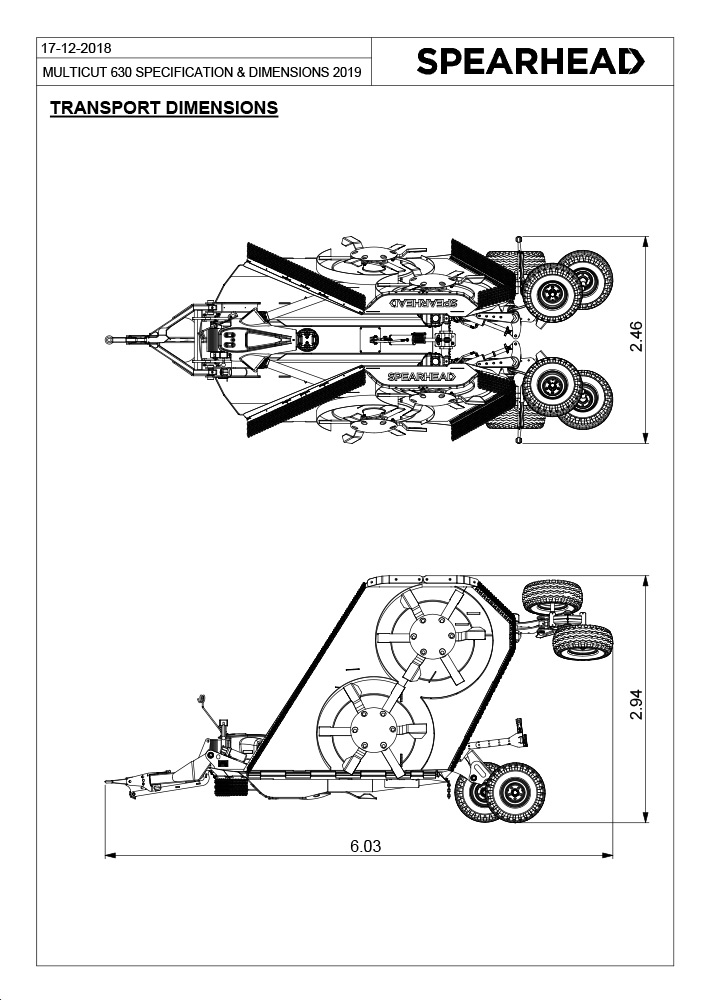

Multicut 630 Info 2

Machine weight*: 3750kg / 8268lbs With front and rear single chain guards
Hitch: Multi-positional drawbar
Cutting width: 6.38m / 20′ 9″
Working machine width width: 6.58m / 21′ 6″
Transport machine width: 2.46m / 8′ 1″
Maximum working length: 6.12m / 20′ 1″
Transport length: 6.03m / 19′ 8″”
Transport height: 2.94m / 9′ 6″
Deck height**: 0.23m / 9″
Cutting height: 25mm-210mm (1″ – 16″)
Cutting capcity: 100mm / 4″
Recommended tractor HP: 100hp / 75kW
Wing working angles: 45° up / 15° down
Power take-off speed: 1000rpm
Gearbox [Splitter]: Cast Iron Housing
Gearbox [Rotor gearboxes (x5)]: Cast Iron Housing
Input shaft: 1-3/8″ Z21 or Z6 SFT 8 tractor end
Gearbox lubricant [Splitter]: EP80-90W or GL-4 / GL-5 oil
Gearbox lubricant [Rotor]: 85W-140 oil
Gearbox oil capacity [Splitter Gearbox]: 2.65 litres / 4.66 pints
Gearbox oil capacity [Rotor Gearboxes (x5)]: 4.3 litres / 7.6 pints
Deck construction: All welded construction
Deck material thickness: 5mm (3/16″)
Side skirt material thickness: 5mm (3/16″)
Skid construction: Replaceable bolt on skid shoes
Anti-scalp dish: Round pan 6mm (1/4″) round pan with blade holder bar
Blades (x15): 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction
Blades Starcut (x15): 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging – low friction. Non-handed
Blade bolts: M24 C/W shank grade 8.8
Blade tip speed: 84 mps / 16535 fpm
Driveline: ASAE category 5
Driveline protection: 4-way or 2-way slip clutches on rotor gearboxes. Overrun on input shaft
Tailwheel mount assemblies: Tubular welded axle
Tailwheels (x8): 10.0/80×12 10 PLY pneumatic tyre with steel rim
Front guard: Looped chain guards on each deck
Rear guard: Looped chain guards on each deck

*With front and rear single chain guards
**Underside of deck to skid
