Machine weight*: 4330kg / 9546lbs
Hitch: Multi-positional drawbar
Cutting width: 8.06m / 26′ 5″
Working machine width: 8.26m / 27′ 1″
Transport machine width: 2.81m / 9′ 3″
Maximum working length: 6.33m / 20′ 9″
Transport length: 6.07m / 19′ 11″
Deck height**: 0.24m / 10″
Transport height: 3.78m / 12′ 5″
Cutting height: 25mm – 210mm (1″ – 1/16″)
Cutting capacity: 100mm/4″ DIA
Wing working angles: 45° up / 15° down
Recommended tractor HP: 150hp / 112kW
Power take-off speed: 1000rpm

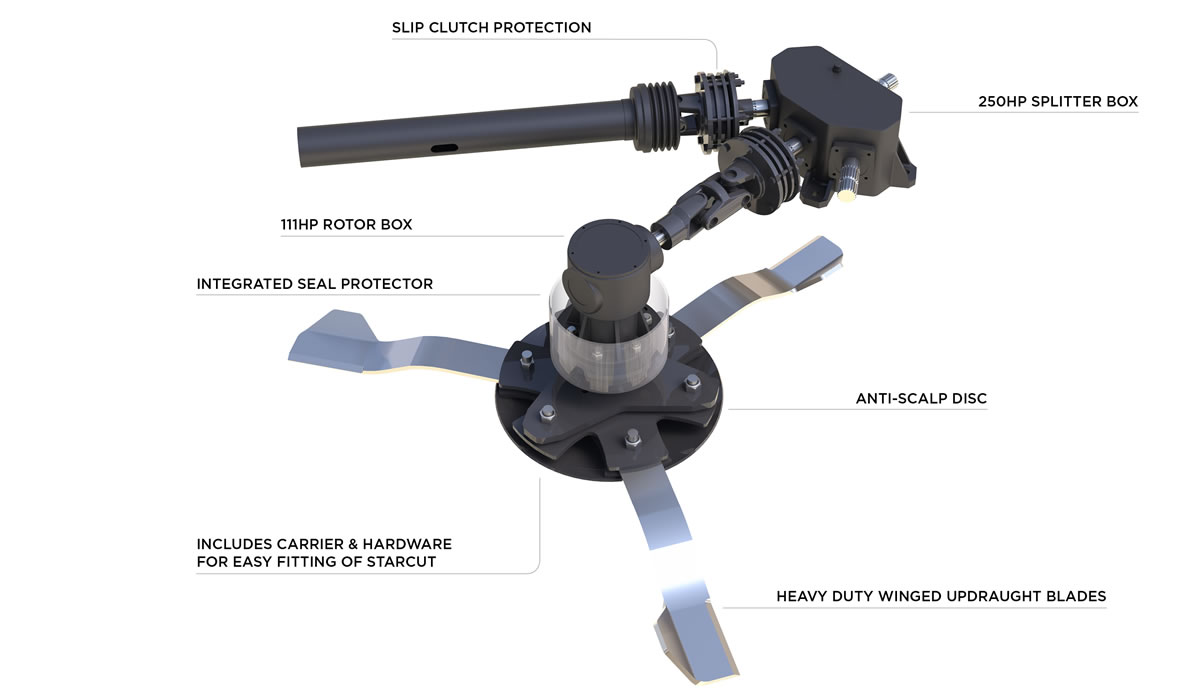

Gearbox [splitter]: Cast iron housing
Gearbox [rotor gearbox (x5)]: Cast iron housing
Input shaft: 1-3/4″ Z20 SFT 10 tractor end
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity [splitter]: 2.7 litres / 4.7 pints
Gearbox oil capacity [centre gearbox]: 3.5 litres / 6.2 pints
Gearbox oil capacity [wing rotor gearboxes (x4)]: 2.1 litres / 3.7 pints
Deck construction: All welded construction
Deck material thickness: 5mm (3.16″)
Side skirt material thickness: 6mm (4/16″)
Skid construction: Replaceable bolt on skid shoes
Anti-scalp dish: 6mm (1/4″) round pan with blade holder bar
Blades (15): 12mm (1/2″) 30 carbon boron hardened and tempered. Free swinging high lift – low friction. Handed.
Blade bolts: M24 C/W shank grade 8.8
Blade tip speed: 79mps / 15551fpm
Driveline: ASAE category 4
Driveline protection: 2/4-way slip clutch on rotor gearboxes. Overrun on input shaft
Tailwheel mount assemblies: Tubular welded walking axles
Tailwheels (x8): 7.00 – 12 pneumatic tyre with steel hub
Front guard: Single chain guards on each deck
Rear guard: Single chain guards on each deck
*With front and rear single chain guards
**Underside of deck to skid
