Overview
The Spearhead Barrier Mower is the perfect tool for airfield, agriculture, amenity and highway applications for cutting under roadside crash barriers, fence posts, fence wires and round the base of trees.

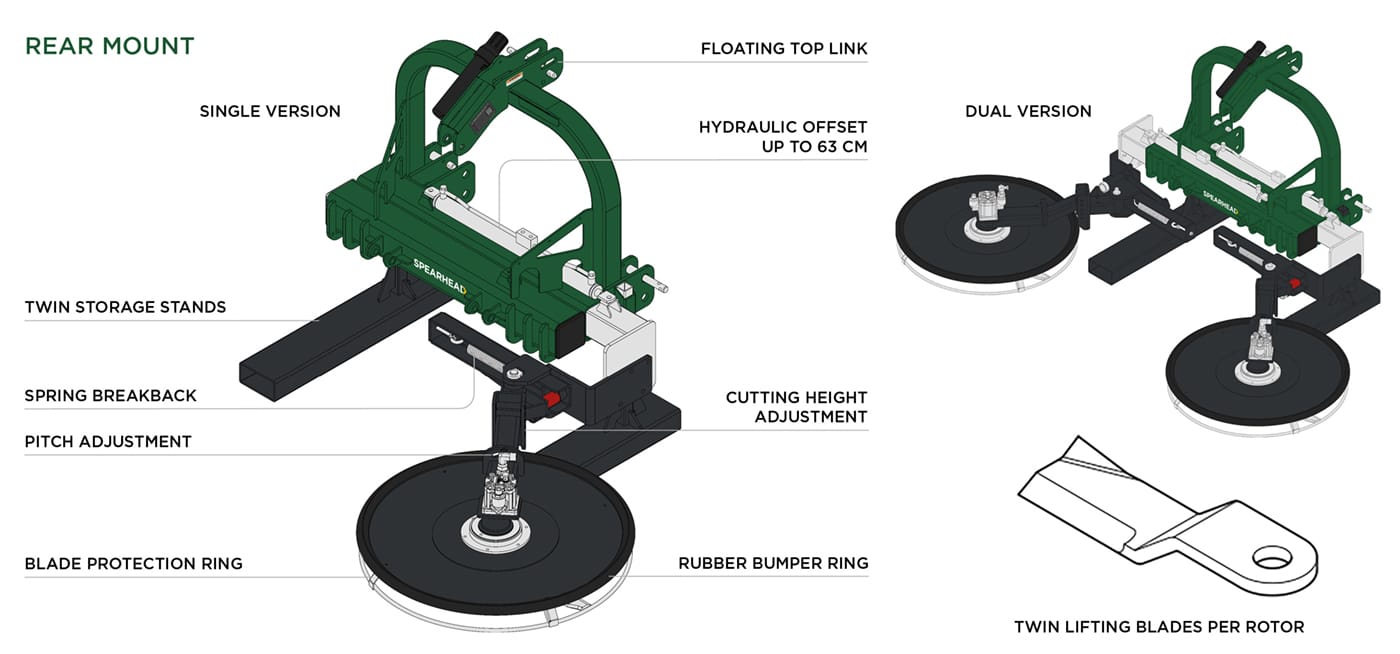

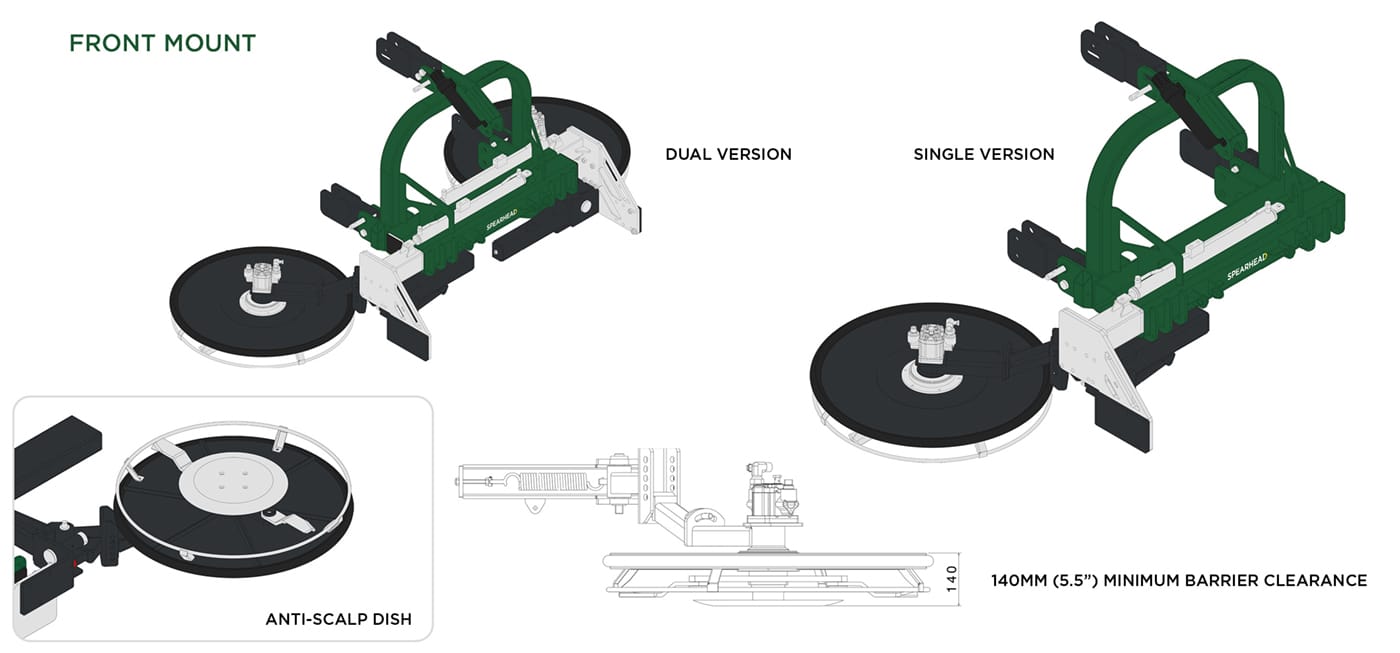

Available in front mount or rear mount guises and left-hand, right-hand or even dual build configurations the Barrier Mower gives an 80cm cutting diameter provided by twin lifting blades and an accompanying anti-scalp dish to leave a consistent finish.
The machine features an automatic spring breakback arm system which allows the machine to cut around the smallest of items. The machine also features hydraulic sideshift to deal with any working environment all controlled from the comfort of the cab of the tractor.
| AGRICULTURE |
| AMENITY |
| HIGHWAYS |
| AIRFIELD |
Features
Specifications
Machine weight – rear mount: 310kg (683lbs)
Machine weight – front mount: 353kg (778lbs)
Hitch type: Cat 2
Hitch position: Front and rear mount
Cutting width: 80cm (2′ 7″)
Minimum machine width: 207cm (6′ 9″)
Maximum machine width: 267cm (8′ 9″)
Minimum machine length: 143cm (4′ 8″)
Maximum machine length: 155cm (5′ 1″)
Maximum offset distance (hydraulic): 63cm (2′ 1″)
Height:115cm (3′ 9″)
Minimum cutting height: 25mm (1″)
Minimum barrier clearance: 140mm (5.5″)
Maximum cutting capacity: 20mm (0.8″)
Recommended tractor HP: 30-100hp (22-75kw)
Blade: Lifting blade
Blade bolts: M18
Blade quantity: 2
Blade tip speed: 70m/s (13780fpm)
Hydraulic system drive: Gear
Motor construction: Aluminium
Flow rate: 35 l/min
Tractor spools required: 2
Machine weight – rear mount: 415kg (915lbs)
Machine weight – front mount: 458kg (1010lbs)
Hitch type: Cat 2
Hitch position: Front and rear mount
Cutting width: 80cm (2′ 7″) x2
Minimum machine width: 270cm (8′ 10″)
Maximum machine width: 390cm (12′ 9″)
Minimum machine length: 143cm (4′ 8″)
Maximum machine length: 155cm (5′ 1″)
Maximum offset distance (hydraulic): 63cm (2′ 1″)
Height:115cm (3′ 9″)
Minimum cutting height: 25mm (1″)
Minimum barrier clearance: 140mm (5.5″)
Maximum cutting capacity: 20mm (0.8″)
Recommended tractor HP: 30-100hp (22-75kw)
Blade: Lifting blade
Blade bolts: M18
Blade quantity: 4
Blade tip speed: 70m/s (13780fpm)
Hydraulic system drive: Gear
Motor construction: Aluminium
Flow rate: 70 l/min
Tractor spools required: 4
