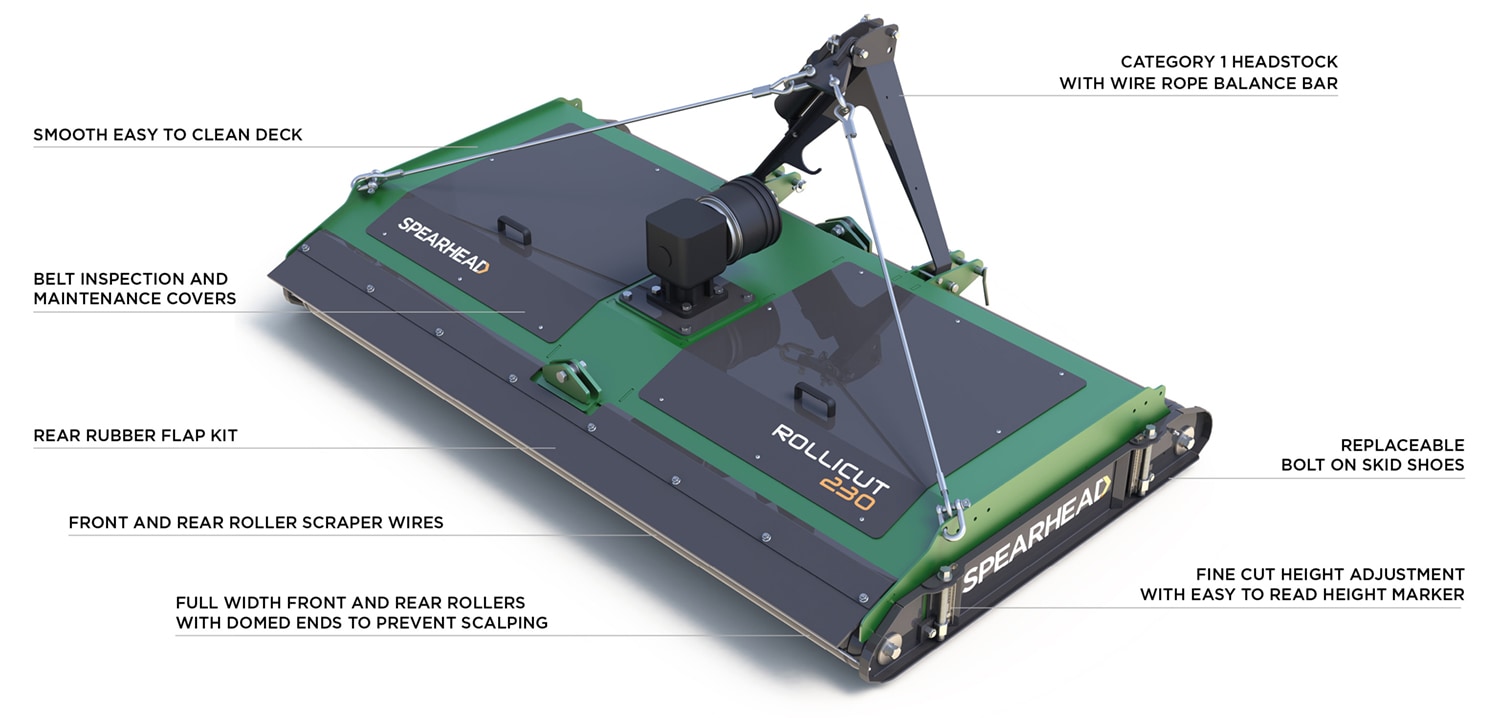

The Spearhead Rollicut inline mower is designed for light duty amenity mowing and gives a high-quality finish in material up to 20mm. It excels in parkland, golf course, orchard and topping applications and is the perfect choice for mounting on compact tractors.

This cost-effective inline range is available in either 1.7, 2.3 or 2.9 metre cutting widths, featuring three, high suction style blades per rotor designed to offer a comparable finish to conventional cylinder mowers; but without the expensive maintenance costs.

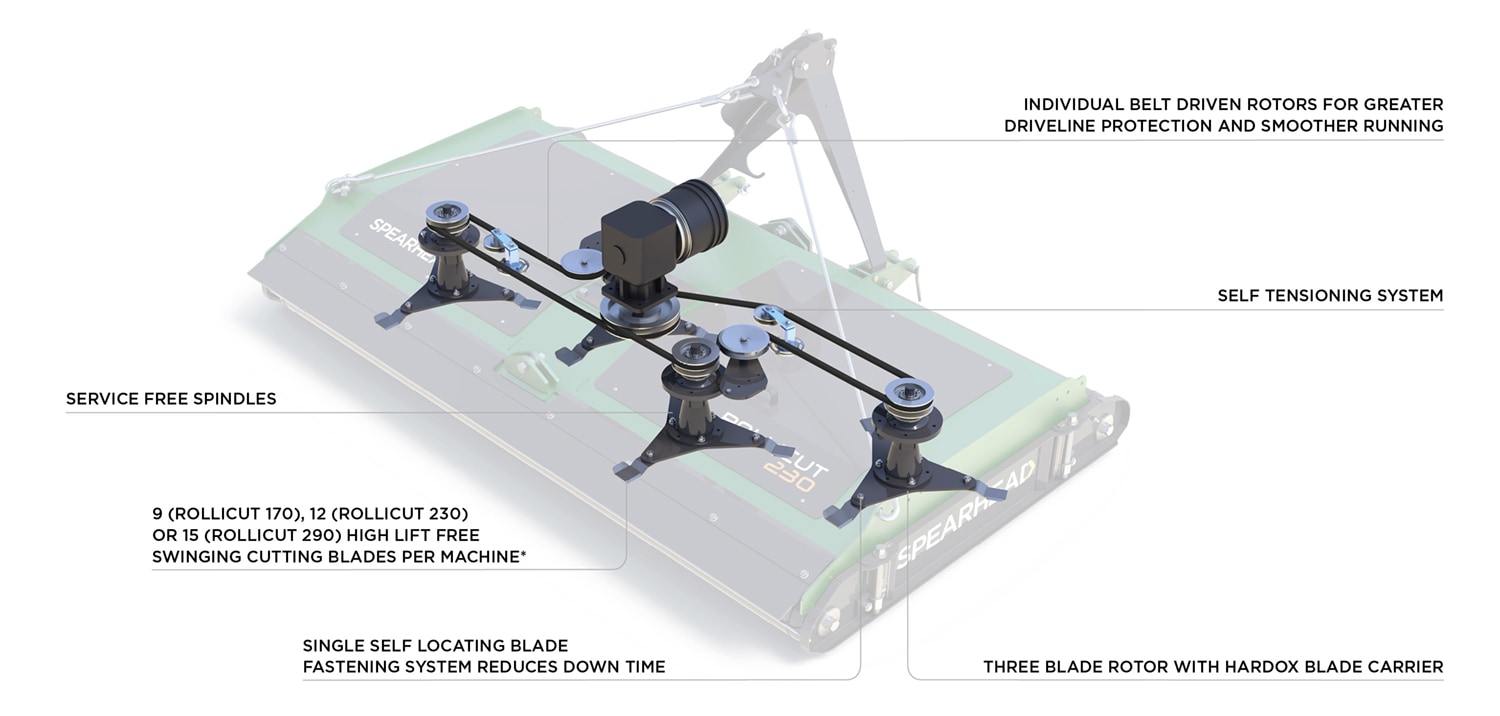

Self-tensioning belt drive gives reliable power transmission, and with 168mm full width fine adjustment front and rear rollers, heavily baffled deck design and rear rubber flap, a fine mulch cut and well distributed finish, is guaranteed.


AMENITY

Features

Rollicut Inline Series Amenity Mower


Specification

Rollicut 170

Machine weight*: 590kg (1301lbs)
Minimum weight guide: 1500kg (3307lbs)
Hitch: Category 1 with floating clevis top link
Hitch position: Rear mount only
Cutting width: 1.74m (5′ 8″)
Working width:1.86m (6′ 2″)
Overall length: 1.40m (3′ 11″)
Cowl height**: 490mm (1′ 8″)
Cutting height: 0mm – 110mm (0″ – 4 5/16″)
Cutting capacity: 20mm (0.8″)
Recommended tractor HP: 35hp (27kW)
Power take-off speed: 540rpm
Gearbox (x1): Cast iron housing
Input shaft: 1 3/8″ Z6 and 35mm output shaft
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity (x1): 1.3 litres (2.3 pints)
Belt quantity: 2
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Blade type: Fine cut, high lift
Blade quantity: 9
Blade tip speed: 87m/s (17126 fpm)
Roller diamenter (x2) (front + rear): 168mm (6 1/2″)
Roller adjustment: Manual
* Weight may vary dependent on machine specification
** Underside of deck to skid

Rollicut 230

Machine weight*: 716kg (1579lbs)
Minimum weight guide: 2000kg (4410lbs)
Hitch: Category 1 with floating clevis top link
Hitch position: Rear mount only
Cutting width: 2.30m (7′ 6″)
Working width:2.42m (7′ 11″)
Overall length: 1.40m (3′ 11″)
Cowl height**: 490mm (1′ 8″)
Cutting height: 0mm – 110mm (0″ – 4 5/16″)
Cutting capacity: 20mm (0.8″)
Recommended tractor HP: 45hp (34kW)
Power take-off speed: 540rpm
Gearbox (x1): Cast iron housing
Input shaft: 1 3/8″ Z6 and 35mm output shaft
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity (x1): 1.3 litres (2.3 pints)
Belt quantity: 2
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Blade type: Fine cut, high lift
Blade quantity: 12
Blade tip speed: 87m/s (17126 fpm)
Roller diamenter (x2) (front + rear): 168mm (6 1/2″)
Roller adjustment: Manual
* Weight may vary dependent on machine specification
** Underside of deck to skid

Rollicut 290

Machine weight*: 860kg (1896lbs)
Minimum weight guide: 2500kg (5512lbs)
Hitch: Category 1 with floating clevis top link
Hitch position: Rear mount only
Cutting width: 2.92m (9′ 7″)
Working width:3.02m (9′ 11″)
Overall length: 1.40m (3′ 11″)
Cowl height**: 490mm (1′ 8″)
Cutting height: 0mm – 110mm (0″ – 4 5/16″)
Cutting capacity: 20mm (0.8″)
Recommended tractor HP: 55hp (41kW)
Power take-off speed: 540rpm
Gearbox (x1): Cast iron housing
Input shaft: 1 3/8″ Z6 and 35mm output shaft
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity (x1): 1.3 litres (2.3 pints)
Belt quantity: 2
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Blade type: Fine cut, high lift
Blade quantity: 15
Blade tip speed: 87m/s (17126 fpm)
Roller diamenter (x2) (front + rear): 168mm (6 1/2″)
Roller adjustment: Manual
* Weight may vary dependent on machine specification
** Underside of deck to skid
