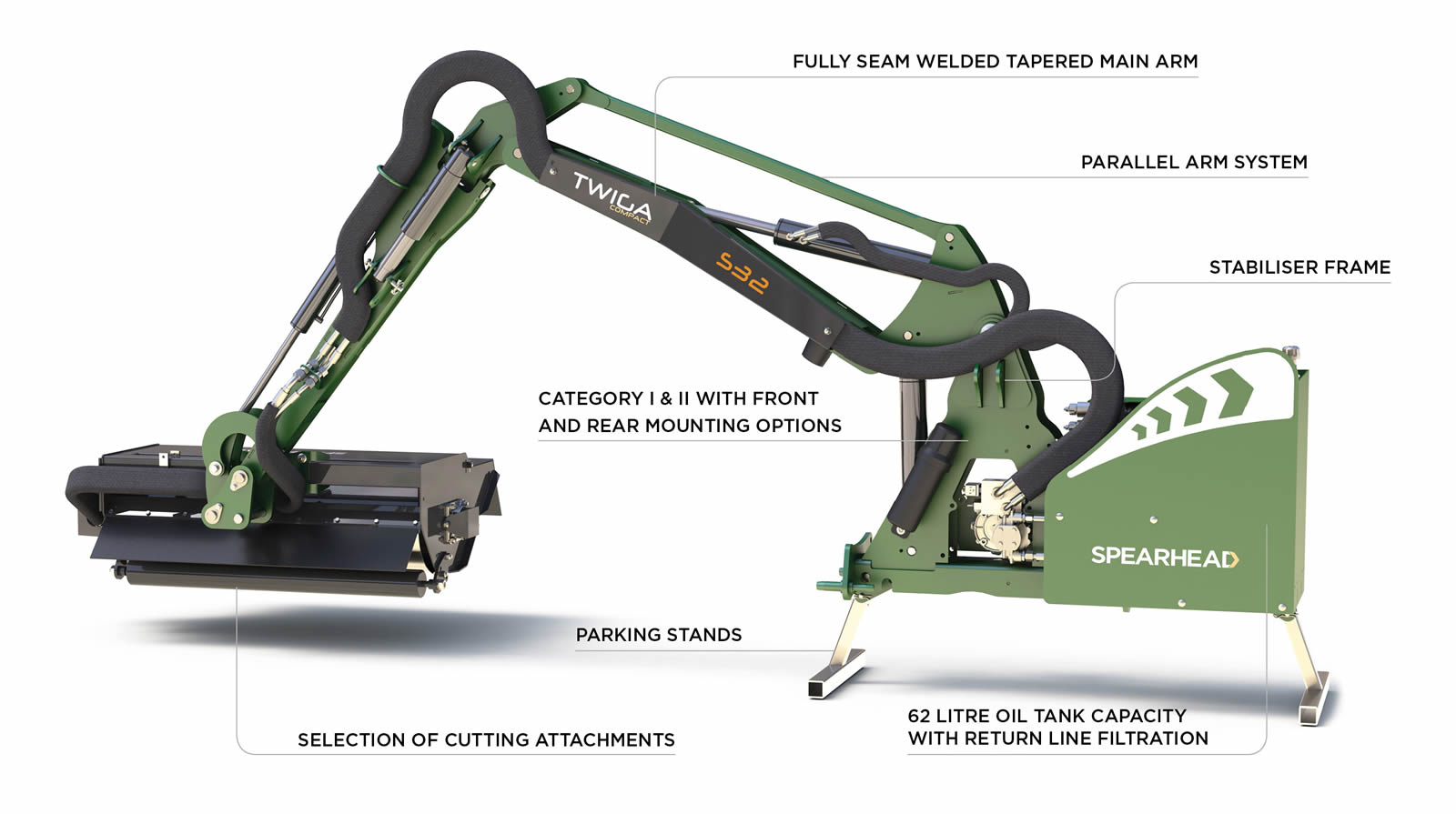

Twiga Compact Reach Mower-IMG_9714

Whether you’re a local authority, groundskeeper, or small agricultural site, enjoy a compact cutting arm with features and styling seen in larger models.

Watch your productivity soar as you reach up to 4.9 metres. Mount the arm where it works best for you and enjoy high visibility.

Use your Twiga Compact to complete more jobs. Choose from various attachments such as flail, saw and cutterbar.

  • Professional features in a compact arm.
  • Achieve the perfect set-up with flexible mounting positions.
  • Get more done with additional cutting attachments.
  • Specifications suited to your needs – Basic, Combi, Integrated, Front mount, Rear mount.
AGRICULTURE
AMENITY
AIRFIELD
HIGHWAYS

Features

Specifications

Machine weight*: 480kg (1058lbs)
Minimum tractor weight guide: 1500kg (3308lbs)
Maximum reach: 3.20m (10′ 5″)
Transport width: 1.90m (6′ 3″)
Controls: Minipilot Electric Proportional Control System
Mounting: Rear three point linkage as standard
Arm type: Standard arm / Parallel arm system
Hydraulic system: Gear
Hydraulic pump: Aluminium
Hydraulic pump arrangement: Twin
Hydraulic system drive type: Fully independent
Oil tank capacity: 60 litres (106 pints)
Machine horsepower: 35hp
Standard features: Autoreset / Head float / Dual direction motor (electric) / Hydraulic oil
Standard safety equipment: Cab guard kit
*Weights may vary dependent on machine type and specification

Machine weight*: 520kg (1147lbs)
Minimum tractor weight guide: 1750kg (3859lbs)
Maximum reach: 4.20m (13′ 8″)
Transport width: 2.30m (7′ 6″)
Controls: Minipilot Electric Proportional Control System
Mounting: Rear three point linkage as standard
Arm type: Standard arm / Parallel arm system
Hydraulic system: Gear
Hydraulic pump: Aluminium
Hydraulic pump arrangement: Twin
Hydraulic system drive type: Fully independent
Oil tank capacity: 60 litres (106 pints)
Machine horsepower: 35hp
Standard features: Autoreset / Head float / Dual direction motor (electric) / Hydraulic oil
Standard safety equipment: Cab guard kit
*Weights may vary dependent on machine type and specification

Machine weight*: 540kg (1191lbs)
Minimum tractor weight guide: 2000kg (4410lbs)
Maximum reach: 4.90m (16′ 1″)
Transport width: 2.40m (7′ 10″)
Controls: Minipilot Electric Proportional Control System
Mounting: Rear three point linkage as standard
Arm type: Standard arm / Parallel arm system
Hydraulic system: Gear
Hydraulic pump: Aluminium
Hydraulic pump arrangement: Twin
Hydraulic system drive type: Fully independent
Oil tank capacity: 60 litres (106 pints)
Machine horsepower: 35hp
Standard features: Autoreset / Head float / Dual direction motor (electric) / Hydraulic oil
Standard safety equipment: Cab guard kit
*Weights may vary dependent on machine type and specification

Machine weight*: 500kg (1103lbs)
Minimum tractor weight guide: 1500kg (3308lbs)
Maximum reach: 3.6m (11′ 10″)
Transport width: 1.9m (6′ 3″)
Controls: Minipilot Electric Proportional Control System
Mounting: Front three point linkage as standard
Arm type: Standard arm / Parallel arm system
Hydraulic system: Gear
Hydraulic pump: Aluminium
Hydraulic pump arrangement: Twin
Hydraulic system drive type: Fully independent
Oil tank capacity: 60 litres (106 pints)
Machine horsepower: 35hp
Standard features: Autoreset / Head float / Dual direction motor (electric) / Hydraulic oil
Standard safety equipment: Cab guard kit
*Weights may vary dependent on machine type and specification

Machine weight*: 540kg (1191lbs)
Minimum tractor weight guide: 1750kg (3859lbs)
Maximum reach: 4.6m (15′ 1″)
Transport width: 2.4m (7′ 10″)
Controls: Minipilot Electric Proportional Control System
Mounting: Front three point linkage as standard
Arm type: Standard arm / Parallel arm system
Hydraulic system: Gear
Hydraulic pump: Aluminium
Hydraulic pump arrangement: Twin
Hydraulic system drive type: Fully independent
Oil tank capacity: 60 litres (106 pints)
Machine horsepower: 35hp
Standard features: Autoreset / Head float / Dual direction motor (electric) / Hydraulic oil
Standard safety equipment: Cab guard kit
*Weights may vary dependent on machine type and specification

Machine weight*: 620kg (1367lbs)
Minimum tractor weight guide: 1500kg (3308lbs)
Maximum reach: 3.60m (11′ 10″)
Transport width: 1.90m (6′ 3″)
Controls: Minipilot Electric Proportional Control System
Mounting: Rear three point linkage and Front three point linkage as standard
Arm type: Standard arm / Parallel arm system
Hydraulic system: Gear
Hydraulic pump: Aluminium
Hydraulic pump arrangement: Twin
Hydraulic system drive type: Fully independent
Oil tank capacity: 60 litres (106 pints)
Machine horsepower: 35hp
Standard features: Autoreset / Head float / Dual direction motor (electric) / Hydraulic oil
Standard safety equipment: Cab guard kit
*Weights may vary dependent on machine type and specification

Machine weight*: 660kg (1455lbs)
Minimum tractor weight guide: 1750kg (3859lbs)
Maximum reach: 4.60m (15′ 1″)
Transport width: 2.40m (7′ 10″)
Controls: Minipilot Electric Proportional Control System
Mounting: Rear three point linkage and Front three point linkage as standard
Arm type: Standard arm / Parallel arm system
Hydraulic system: Gear
Hydraulic pump: Aluminium
Hydraulic pump arrangement: Twin
Hydraulic system drive type: Fully independent
Oil tank capacity: 60 litres (106 pints)
Machine horsepower: 35hp
Standard features: Autoreset / Head float / Dual direction motor (electric) / Hydraulic oil
Standard safety equipment: Cab guard kit
*Weights may vary dependent on machine type and specification

Machine weight*: 420kg (1926lbs)
Minimum tractor weight guide: 1500kg (3308lbs)
Maximum reach: 3.20m (10′ 5″)
Transport width: 1.90m (6′ 3″)
Controls: Minipilot Electric Proportional Control System
Mounting: Rear three point linkage as standard
Arm type: Standard arm / Parallel arm system
Hydraulic system drive type: Tractor supply
Rotor circuit flow rate requirement: 40 l/min
Ram circuit flow rate requirement: 10 l/min
Rotor circuit pressure requirement: 200 bar
Ram circuit pressure requirement: 145 bar
Standard features: Autoreset / Head float
Standard safety equipment: Cab guard kit
*Weights may vary dependent on machine type and specification

Machine weight*: 460kg (1014lbs)
Minimum tractor weight guide: 1750kg (3859lbs)
Maximum reach: 4.20m (13′ 8″)
Transport width: 2.30m (7′ 6″)
Controls: Minipilot Electric Proportional Control System
Mounting: Rear three point linkage as standard
Arm type: Standard arm / Parallel arm system
Hydraulic system drive type: Tractor supply
Rotor circuit flow rate requirement: 40 l/min
Ram circuit flow rate requirement: 10 l/min
Rotor circuit pressure requirement: 200 bar
Ram circuit pressure requirement: 145 bar
Standard features: Autoreset / Head float
Standard safety equipment: Cab guard kit
*Weights may vary dependent on machine type and specification

Machine weight*: 440kg (970lbs)
Minimum tractor weight guide: 1500kg (3308lbs)
Maximum reach: 3.60m (11′ 10″)
Transport width: 1.90m (6′ 3″)
Controls: Minipilot Electric Proportional Control System
Mounting: Rear three point linkage as standard
Arm type: Standard arm / Parallel arm system
Hydraulic system drive type: Tractor supply
Rotor circuit flow rate requirement: 40 l/min
Ram circuit flow rate requirement: 10 l/min
Rotor circuit pressure requirement: 200 bar
Ram circuit pressure requirement: 145 bar
Standard features: Autoreset / Head float
Standard safety equipment: Cab guard kit
*Weights may vary dependent on machine type and specification

Machine weight*: 480kg (1058lbs)
Minimum tractor weight guide: 1750kg (3859lbs)
Maximum reach: 4.60m (15′ 1″)
Transport width: 2.40m (7′ 10″)
Controls: Minipilot Electric Proportional Control System
Mounting: Rear three point linkage as standard
Arm type: Standard arm / Parallel arm system
Hydraulic system drive type: Tractor supply
Rotor circuit flow rate requirement: 40 l/min
Ram circuit flow rate requirement: 10 l/min
Rotor circuit pressure requirement: 200 bar
Ram circuit pressure requirement: 145 bar
Standard features: Autoreset / Head float
Standard safety equipment: Cab guard kit
*Weights may vary dependent on machine type and specification
