Overview
With a cutting width of 1.25m, the Sniper 125 Mini flail mower is suitable for lawns, parkland and amenity operations fitted to tractors of 15hp and greater.

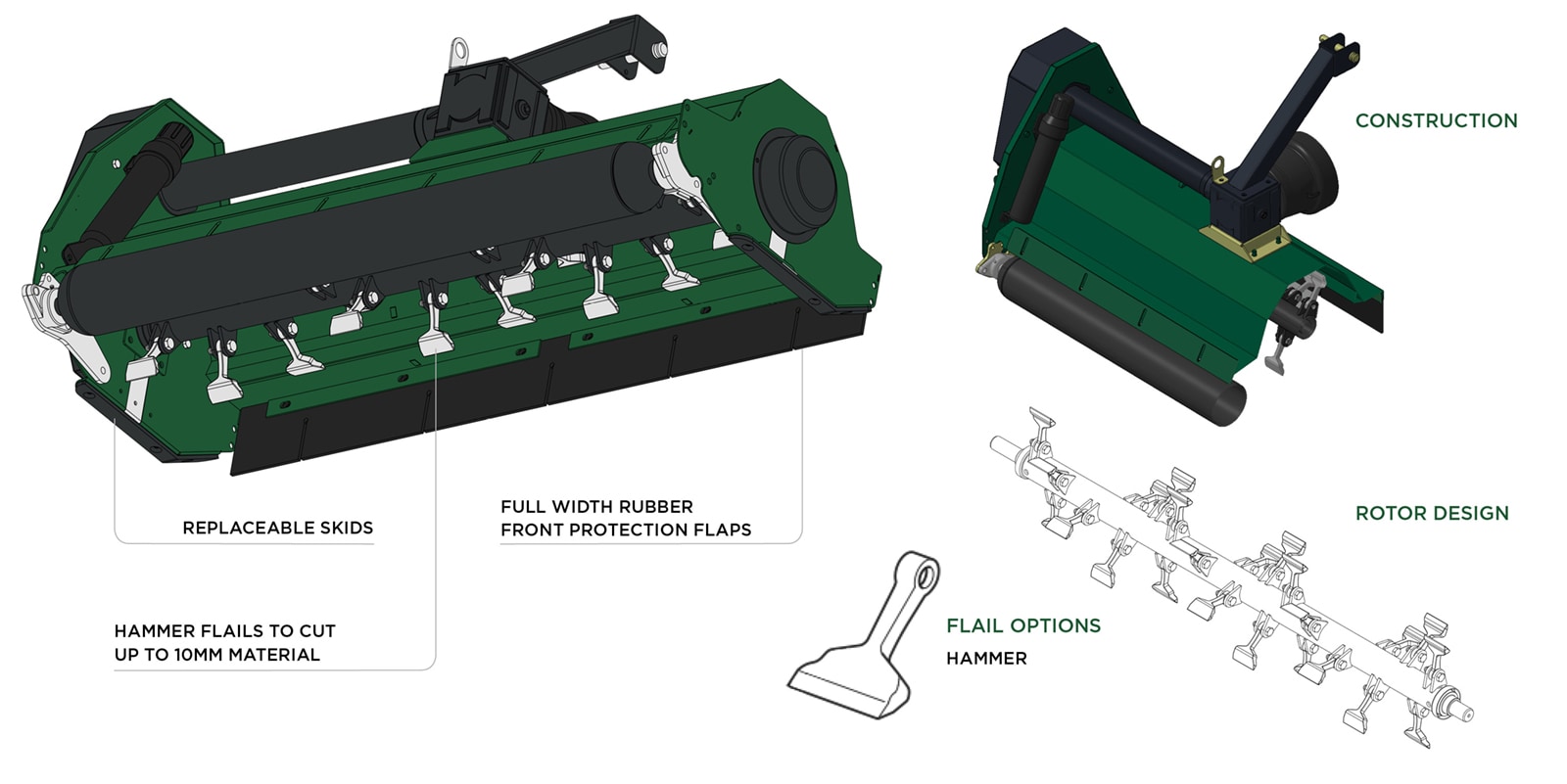

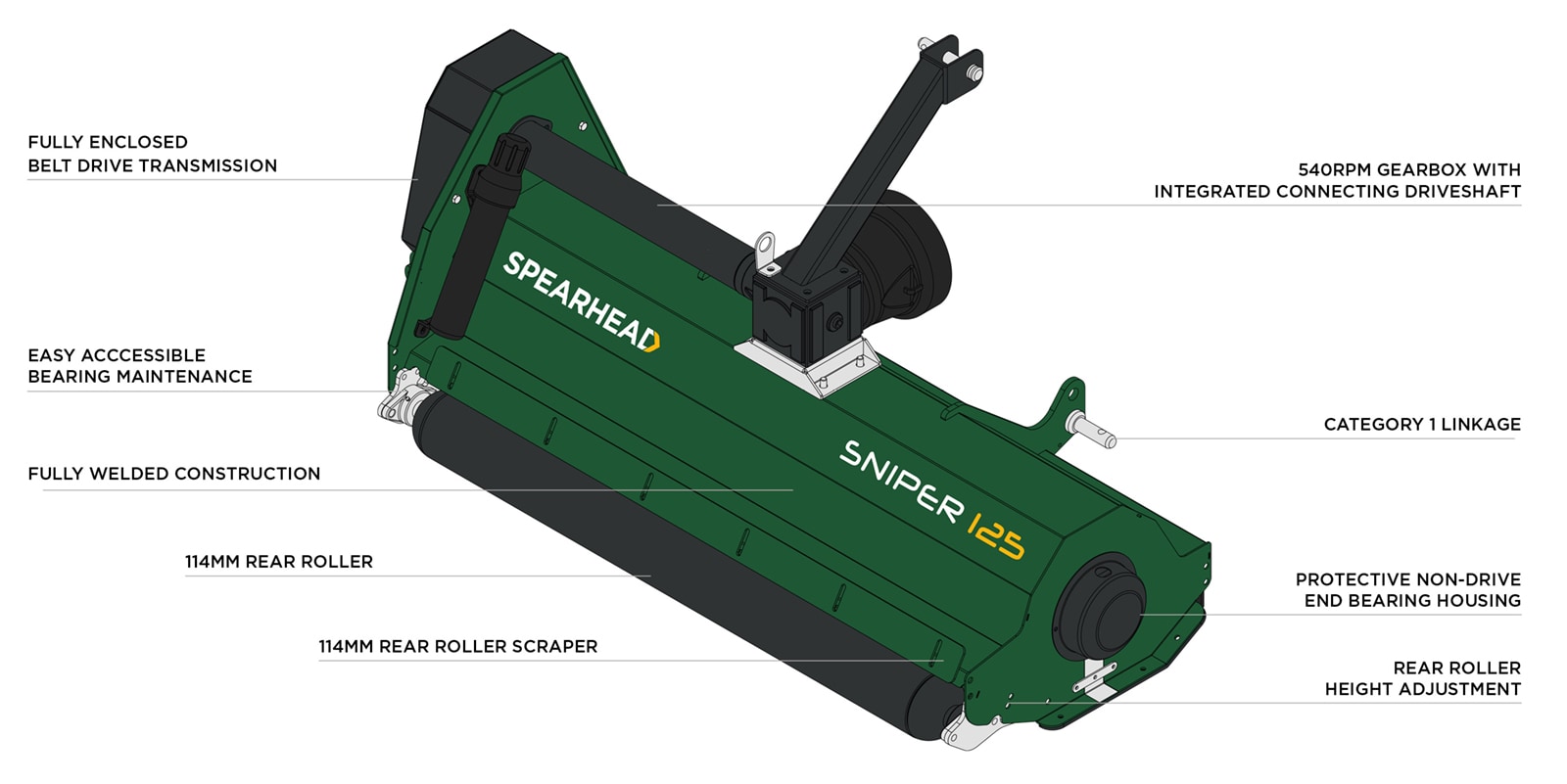

This fully welded machine features a low maintenance, high speed dual belt driven transmission powered via a gearbox and enclosed connecting driveshaft to give dependable performance to each of its 26 hammer flails.
A 114mm adjustable rear roller with accompanying scraper bar safely provides a tidy and professional finish to the cut material and allows the machine to be able to offer a range of cutting heights to the operator.
| AGRICULTURE |
| PASTURE |
| AMENITY |
| LIGHT SCRUB |
Features
Specifications
Machine weight: 115kg (254lbs)
Hitch: Cat 1-2 with floating clevis top link
Hitch position: Rear mount only
Cutting width: 1.25m (4′ 1″)
Overall width:1.40m (4′ 8″)
Overall length: 0.65m (2′ 2″)
Cowl height: 330mm (1′ 1″)
Cutting height: 20mm – 40mm (0.8″ – 1.5″)
Cutting capacity: 10mm (0.4″)
Recommended Tractor HP: 15 – 30hp (12 – 19kW)
Power take-off speed: 540rpm
Gearbox: Cast iron housing with integrated enclosed connecting shaft
Input shaft: 1-3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 0.3 litres (0.5 pints)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail: Heavy duty hammer flail
Flail quantity: 26
Flail tip speed: 45 m/s (8858 fpm)
Rotor diameter: 60mm (2.4″)
Roller diameter: 114mm (4.5″)
Number of belts: 2
