With more features fitted as standard, the Spearhead Rollicut Proline is a professional machine designed for high output amenity operators covering parkland, golf course, orchard and topping applications.

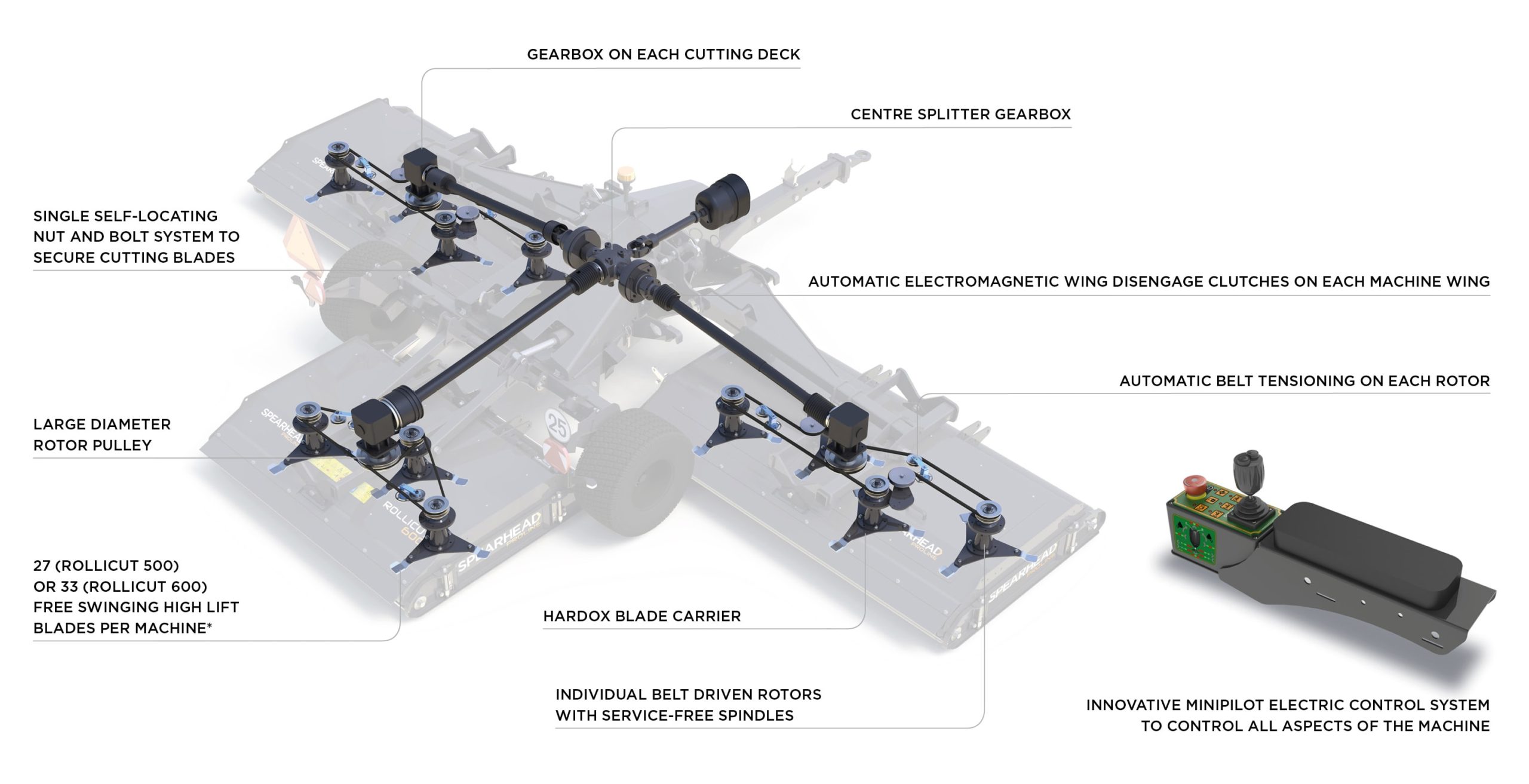

The Rollicut Proline features multi-axis deck articulation to ensure a level cut and reduced scalping in its either 5.0 or 6.0 metre cutting widths options. Each cutting rotor is powered by a centre mounted gearbox found on each deck, connected via a belt drive transmission with automatic tensioners to ensure reliable power to each of its lifting blades.

Reduced stoppages, maintenance and increased user comfort are the key benefits brought with this higher specification Proline model with Spearhead’s Minipilot control system being the focal point of managing these additional features.

Electric wing clutches with position sensors allow the operator to independently and automatically stop and restart each of the rotors when the particular deck is required to be raised to clear obstacles. Electric wing locks safely secure and release the machine wings for transport without the operator needing to leave the comfort of the cab.

Finally added features such as flashing beacons and roller cleaning scraper wires on add together to create a machine which improves carrying out daily operations and the overall final finish of the working carried out.

AMENITY

Features

ROLLICUT 500-600 PROLINE
ROLLICUT 500-600 PROLINE

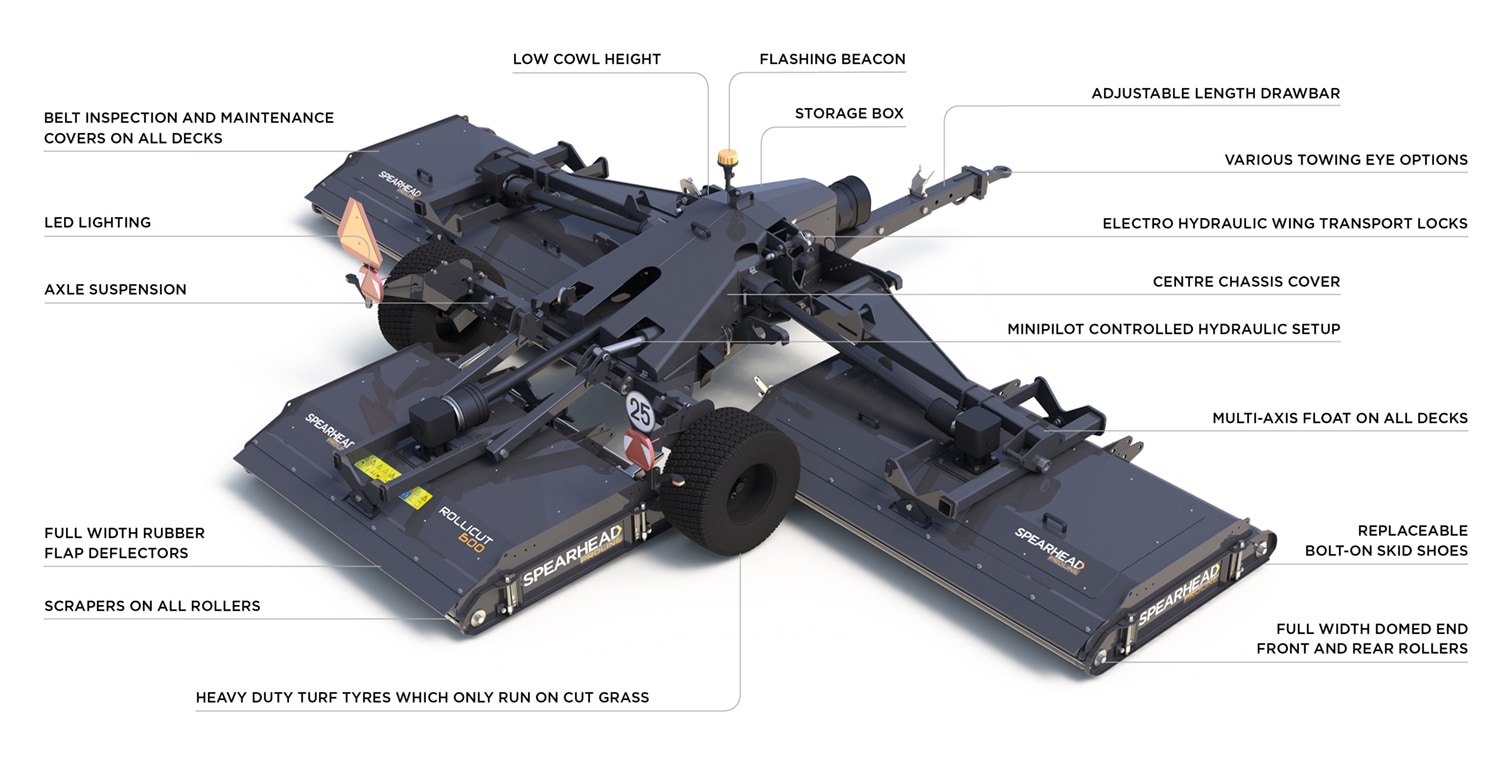

* Rollicut 600 machine shown
Rollicut 500 machines feature three cutting rotors on all decks
Rollicut 600 machines feature four cutting rotors on wing decks and three cutting rotors on the rear deck

Specification

Machine weight: TBC
Hitch: Multi-positional drawbar with towing eye wear pad
Hitch position: Rear mount only
Cutting width: 4.85m (15′ 11″)
Working width:4.97m (16′ 4″)
Overall length: 4.76m (15′ 18″)
Cowl height: 490mm (1′ 8″)
Transport width: 2.66m (8′ 9″)
Transport height: 2.57m (8′ 6″)
Cutting height: 0 mm – 110 mm (0″ – 4.3″)
Cutting capacity: 80 mm (3.1″)
Wing working angles: 45° up/15° down
Recommended tractor HP: 60hp (45kW)
Power take-off speed: 540rpm
Gearbox: Cast iron housing
Input shaft: 1-3/8″ Z6 and 35mm output shaft
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity [splitter]: TBC
Gearbox oil capacity [deck (x3)]: 1.3 litres (2.3 pints)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Blades: Fine cut, high lift
Blade quantity: 27
Blade tip speed: 87m/s (17126fpm)
Roller diameter (front + rear): 168mm (6.5″)
Tyres: 26 x 12 turf tyres

Machine weight: TBC
Hitch: Multi-positional drawbar with towing eye wear pad
Hitch position: Rear mount only
Cutting width: 5.99m (19′ 8″)
Working width:6.12m (20′ 1″)
Overall length: 4.76m (15′ 8″)
Cowl height: 490mm (1′ 8″)
Transport width: 2.66m (8′ 9″)
Transport height: 3.13m (10′ 4″)
Cutting height: 0 mm – 110 mm (0″ – 4.3″)
Cutting capacity: 80mm (3.1″)
Wing working angles: 45° up/15° down
Recommended tractor HP: 70hp (53kW)
Power take-off speed: 540rpm
Gearbox: Cast iron housing
Input shaft: 1-3/8″ Z6 and 35mm output shaft
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity [splitter]: TBC
Gearbox oil capacity [deck (x3)]: 1.3 litres (2.3 pints)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Blades: Fine cut, high lift
Blade quantity: 33
Blade tip speed: 87m/s (17126fpm)
Roller diameter (front + rear): 168mm (6.5″)
Tyres: 26 x 12 turf tyres
