The Multicut 480 Eco-line has an award winning heritage of reliability and performance that sets it apart from the competition — Whilst initially built for agriculture, it is just as likely to be seen in an airport or on a military training field where the reliability and cutting performance excel.

Mounting is simple with a trailing drawbar that can be set in low or high position dependant on tractor specification, and optional hitch types available to satisfy requirements from standard pintle to K80.

The machine is ultimately built to perform and comes standard with eight tough wheels and a robust heavy gauge fully seam welded deck.

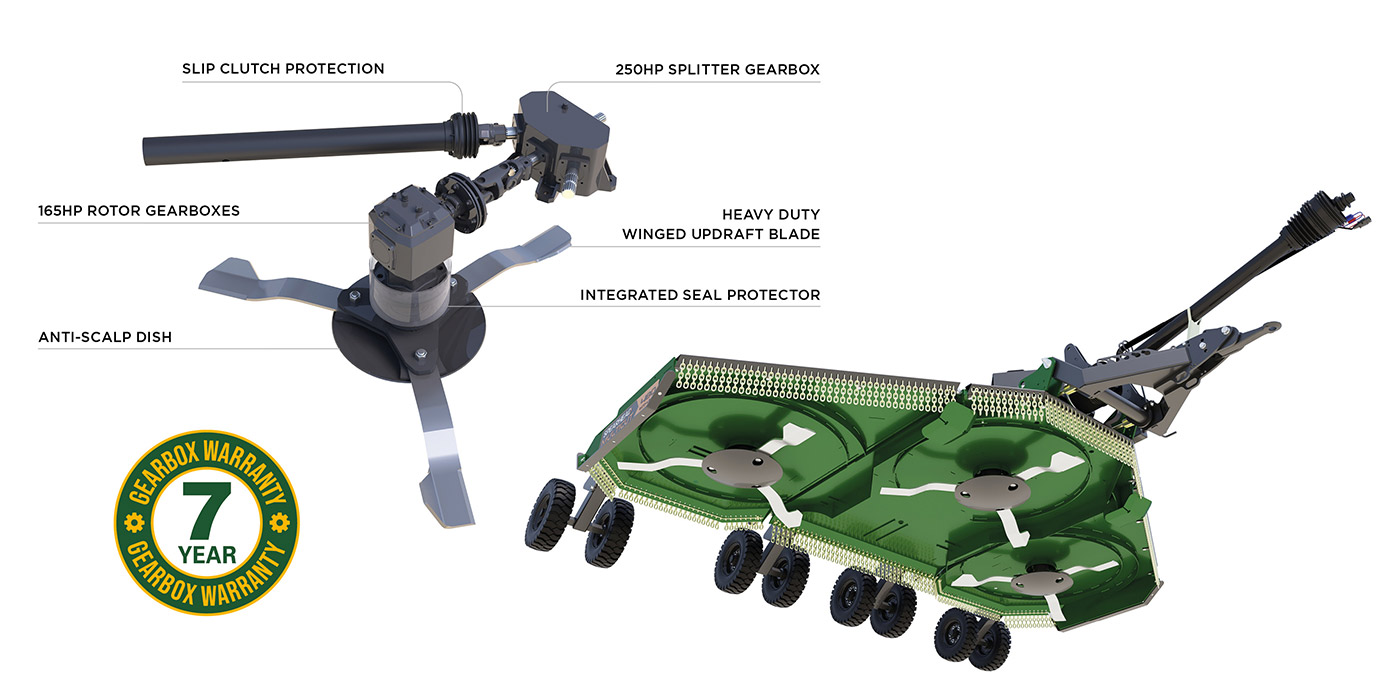

Delivering more driveline power than previously, the Multicut 480 Eco-line comes complete with high specification 165hp rotor gearboxes designed for the most demanding of work environments certified with Spearhead’s extended 7 year gearbox warranty.

Watch the video


AGRICULTURE
PASTURE
LIGHT SCRUB
HEAVY SCRUB
STUBBLE MANAGEMENT
AIRFIELD
HIGHWAYS

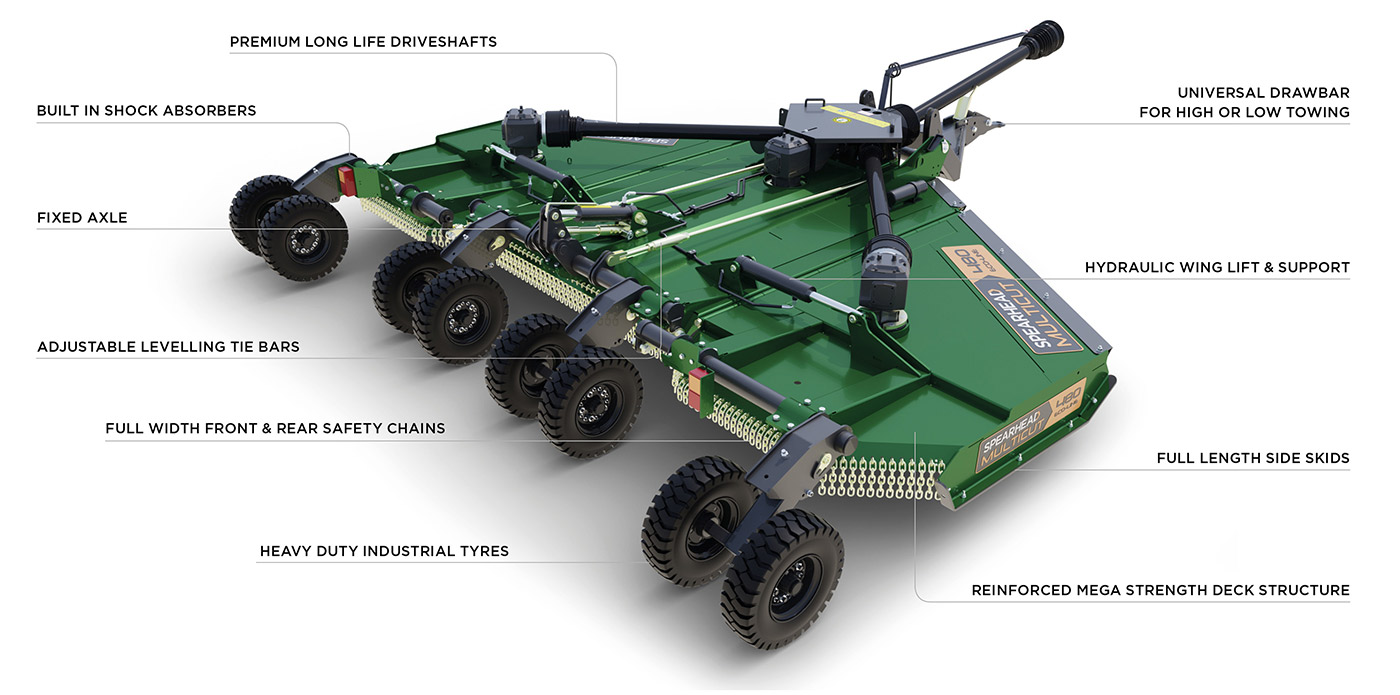

Features

Multicut 480 Ecoline
Multicut 480 Ecoline

Standard Specification

Machine weight*: 2630kg / 5798lbs
Hitch: Multi-positional drawbar
Cutting width: 4.60m / 15′ 1″
Working machine width: 4.79m / 15′ 9″
Transport machine width: 2.70m / 8′ 10″
Maximum working length: 4.91m / 16 1″
Transport length: 4.83m / 15′ 10″
Deck height**: 0.23m / 9″
Transport height: 2.06m / 6′ 10″
Cutting height: 25mm – 400mm (1″ – 16″)
Cutting capacity: 100mm / 4″
Wing working angles: 45° up / 15° down
Recommended tractor HP: 100hp / 75kW
Power take-off speed: 1000rpm
Gearbox [splitter]: Cast Iron housing
Gearbox [rotor (x3)]: Cast Iron housing
Input shaft: 1-3/8″ Z6 SFT 6 tractor end
Gearbox lubricant [splitter]: EP80-90W or GL-4 / GL-5 oil
Gearbox lubricant [rotor]: 85W-140 oil oil
Gearbox oil capacity [splitter gearbox]: 2.7 litres / 4.7 pints
Gearbox oil capacity [rotor gearboxes (x3)]: 4.3 litres / 7.6 pints
Deck construction: All welded construction
Deck material thickness: 6mm (1/4″)
Side skirt material thickness: 5mm (3/16″)
Skid construction: Replaceable bolt on skid shoes
Anti-scalp dish: 6mm (1/4″) round pan with blade holder bar
Blades standard (x9): 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction. Handed
Blades Starcut (x9): 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction. Non-handed
Blade bolts: M24 C/W shank grade 8.8
Blade tip speed: 84mps / 16535fpm
Driveline: ASAE Category 6
Driveline protection: 2-way slip clutches on rotor gearboxes. Overrun on input shaft
Centre deck tailwheel mount assembly: Tubular welded axle
Wing deck tailwheel mount assembilies: Tubular welded axle
Tailwheels (x8): 600-9 10 PLY pneumatic tyre with steel hub
Front guard: Single chain guards on each deck
Rear guard: Single chain guards on each deck

*With front and rear single chain guards **Underside of deck to skid
