The Sniper HD Offset flail mower is designed for intense verge and embankment use giving a high quality and consistent cut in material up to 80mm. It is the perfect choice for maintenance of places such as waterways, highways and heavy, overgrown scrub areas.

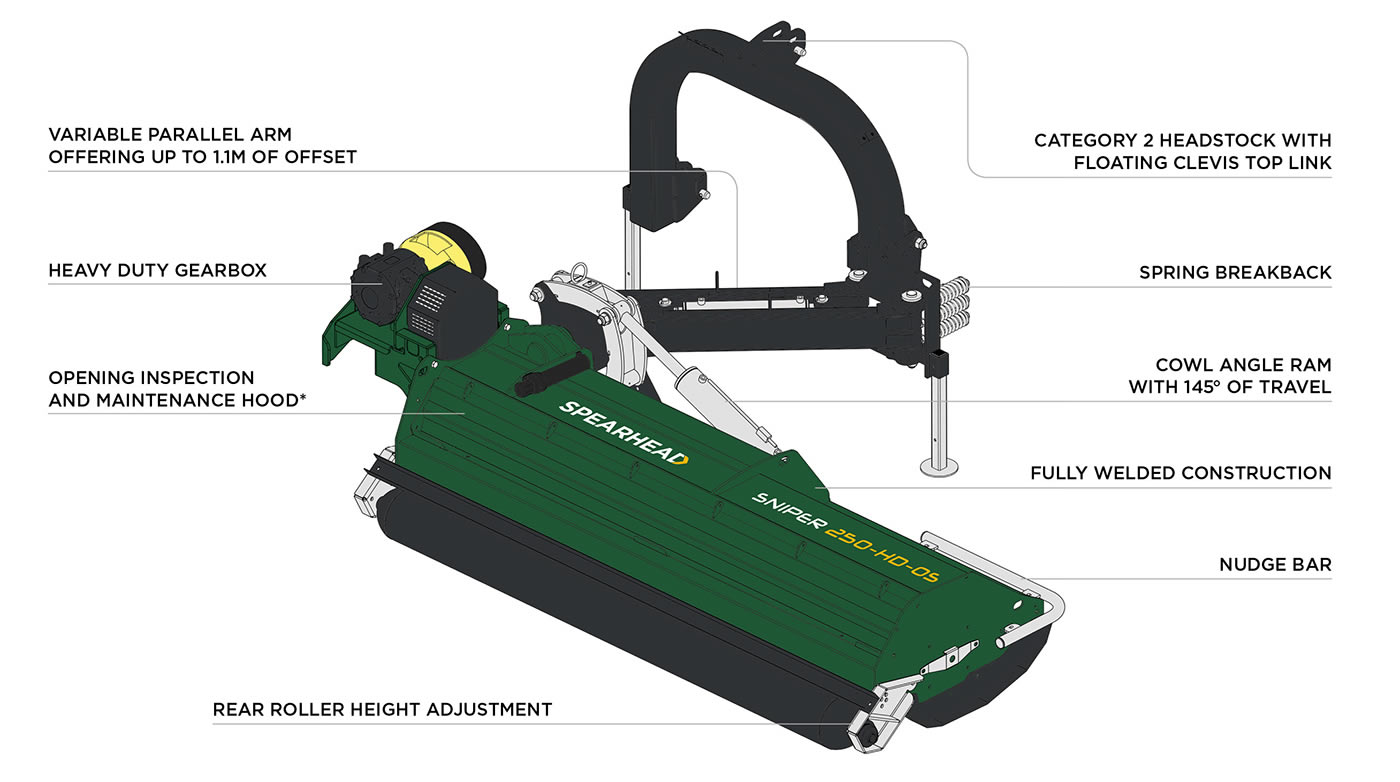

The Sniper HD Offset range is available in a working width from 2.3 metres with additional operating flexibility through variable parallel offsetting arms up to a maximum of 1.1m to cater to the working environment. In addition, the machine features variable cowl angling to aid the following of ground contours.

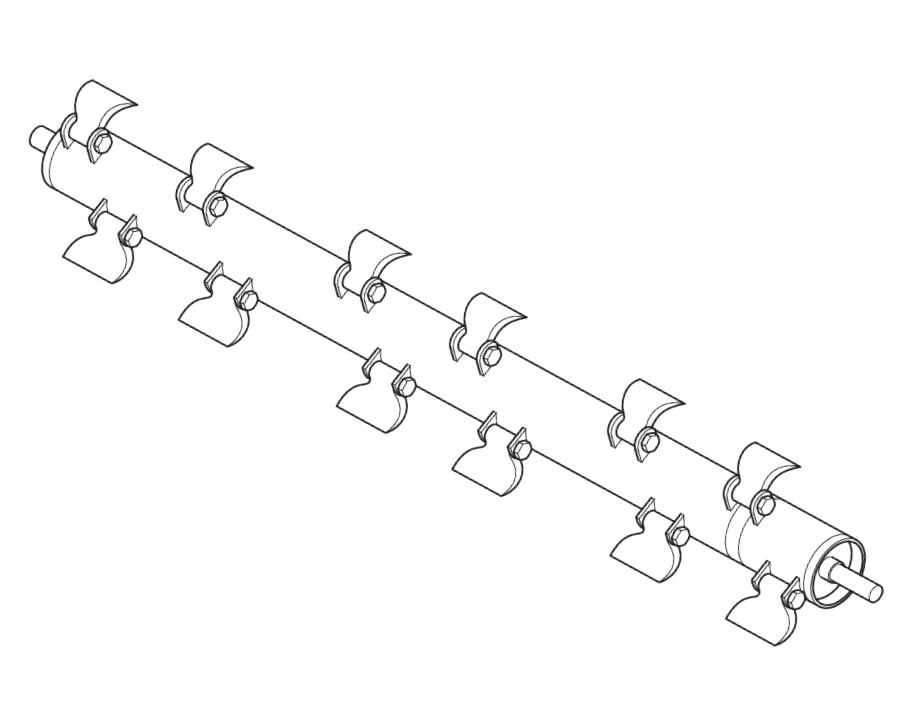

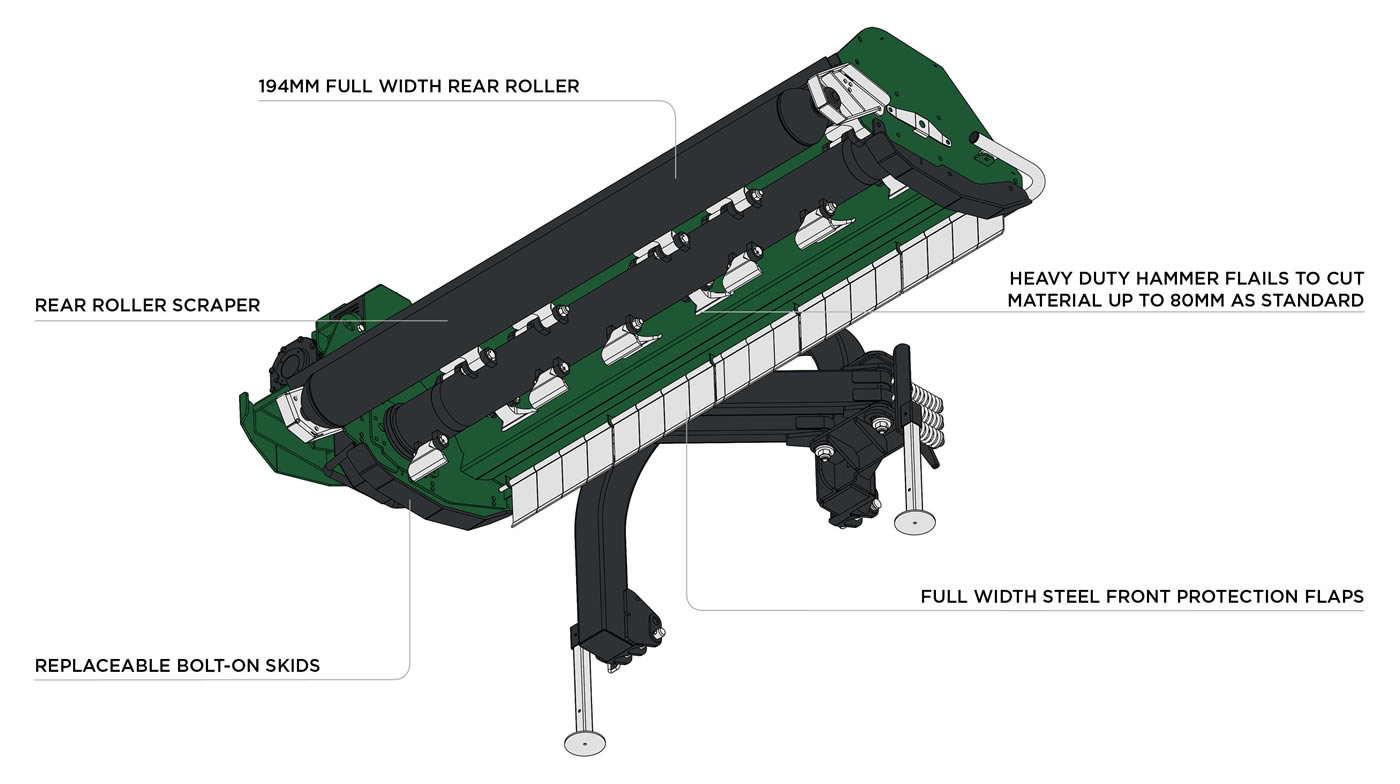

This highly robust machine features heavy duty hammer flails fitted on an electronically balanced rotor mounted on enclosed, self-aligning bearings. Belt drive gives reliable power transmission in challenging conditions and a 194mm full width adjustable, self-cleaning rear roller with scraper will ensure a quality cut and well distributed finish.

AGRICULTURE
PASTURE
AMENITY
LIGHT SCRUB
HEAVY SCRUB
AIRFIELD
HIGHWAYS
WATERWAYS

Features

Sniper HD Offset Flail Mower Features

*For inspection purposes only and not to opened whilst working. Spearhead Machinery claims no responsibility for accident or incident arising from the opening of the inspection area whilst the machine is in operation.

Specifications

Minimum weight guide: 5500kg (12124lbs)
Machine weight*: 1130kg (2291lbs)
Hitch: Cat 2 with floating clevis top link
Hitch position: Rear mount only
Cutting width: 2.30m (7′ 6″)
Working width:2.86m (9′ 4″)
Overall length: 2.16m (7′ 1″)
Cowl height**: 540mm (1′ 10″)
Transport width: 1.61m (5′ 4″)
Transport height: 2.97m (9′ 9″)
Cutting height: 3mm – 57mm (1/8″ – 2 1/4″)
Cutting capacity: 80mm (3 3/16″)
Maximum offset distance: 1.09m (3′ 7″)
Wing working angles: 90° up / 55° down
Offset type: hydraulic
Recommended Tractor HP: 130 – 200hp (97 – 150kW)
Power take-off speed: 540rpm
Gearbox: Cast iron housing
Input shaft: 1 3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 2.3 litres (4.0 pints)
Belt quantity: 6

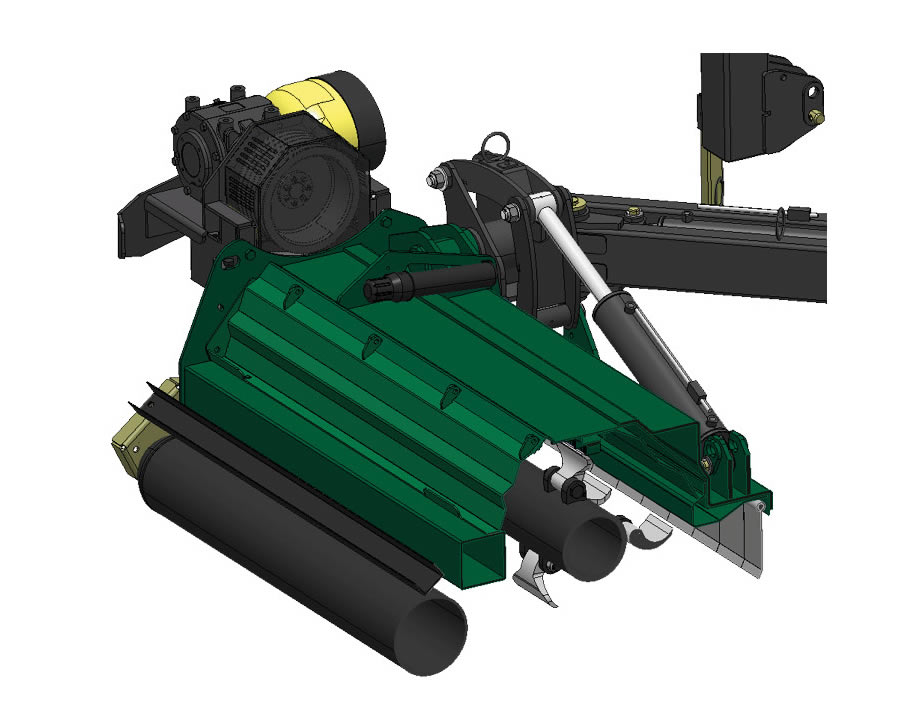

Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid

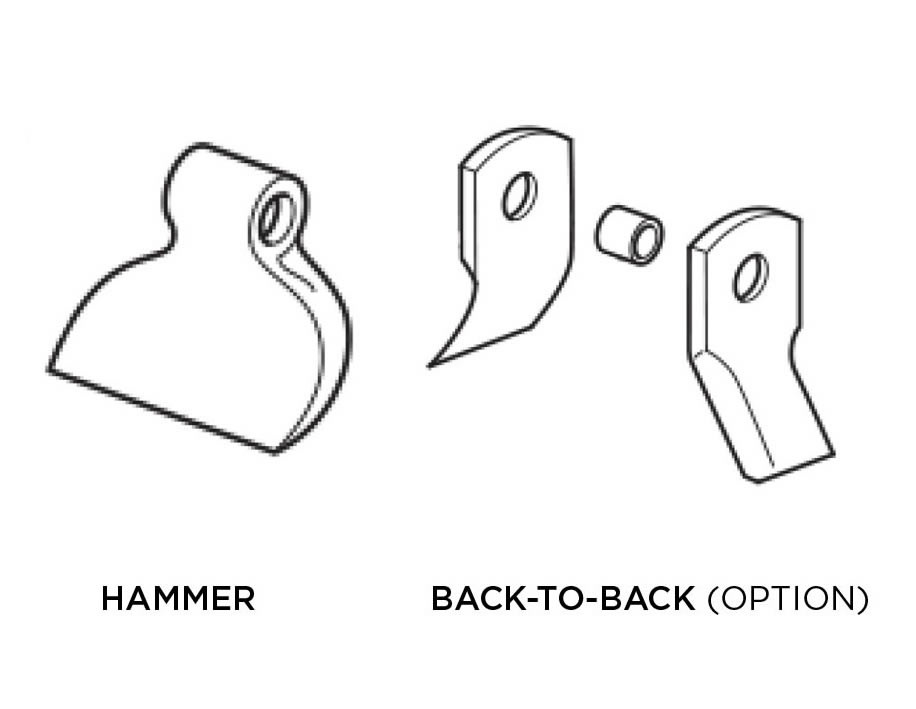

Flail: Heavy-duty hammer flail
Flail quantity: 20
Flail tip speed: 50m/s (9842 fpm)
Rotor diameter: 168mm (6.6″)
Roller diameter: 194mm (7.6″)
*Weights may vary dependent on machine type and specification
**Top of cowl to floor

Minimum weight guide: 5500kg (12124lbs)
Machine weight*: 1200kg (2646lbs)
Hitch: Cat 2 with floating clevis top link
Hitch position: Rear mount only
Cutting width: 2.50m (8′ 2″)
Working width:3.16m (10′ 5″)
Overall length: 2.16m (7′ 1″)
Cowl height**: 540mm (1′ 10″)
Transport width: 1.61m (5′ 4″)
Transport height: 3.24m (10′ 8″)
Cutting height: 3mm – 57mm (1/8″ – 2 1/4″)
Cutting capacity: 80mm (3 3/16″)
Maximum offset distance: 1.09m (3′ 7″)
Wing working angles: 90° up / 55° down
Offset type: hydraulic
Recommended Tractor HP: 140 – 200hp (104 – 150kW)
Power take-off speed: 540rpm
Gearbox: Cast iron housing
Input shaft: 1 3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 2.3 litres (4.0 pints)
Belt quantity: 6
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail: Heavy-duty hammer flail
Flail quantity: 22
Flail tip speed: 50m/s (9842 fpm)
Rotor diameter: 168mm (6.6″)
Roller diameter: 194mm (7.6″)
*Weights may vary dependent on machine type and specification
**Top of cowl to floor
