Machine weight: 680kg (1499lbs)
Hitch: Cat 2 with floating clevis top link
Hitch position: Rear mount only
Cutting width: 1.60m (5′ 3″)
Working width:2.18m (7′ 2″)
Overall length: 1.68m (5′ 6″)
Cowl height: 480mm (1′ 7″)
Transport width: 1.55m (5′ 2″)
Transport height: 2.19m (7′ 3″)
Cutting height: 10mm – 30mm (0.4″ – 1.2″)
Cutting capacity: 40mm (1.6″)
Maximum offset distance: 1.46m (4′ 9″)
Wing working angles: 90° up/55° down
Recommended Tractor HP: 80 – 160hp (60 – 120kW)
Power take-off speed: 540rpm
Gearbox: Cast iron housing
Input shaft: 1-3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 1.2 litres (2.1 pints)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid

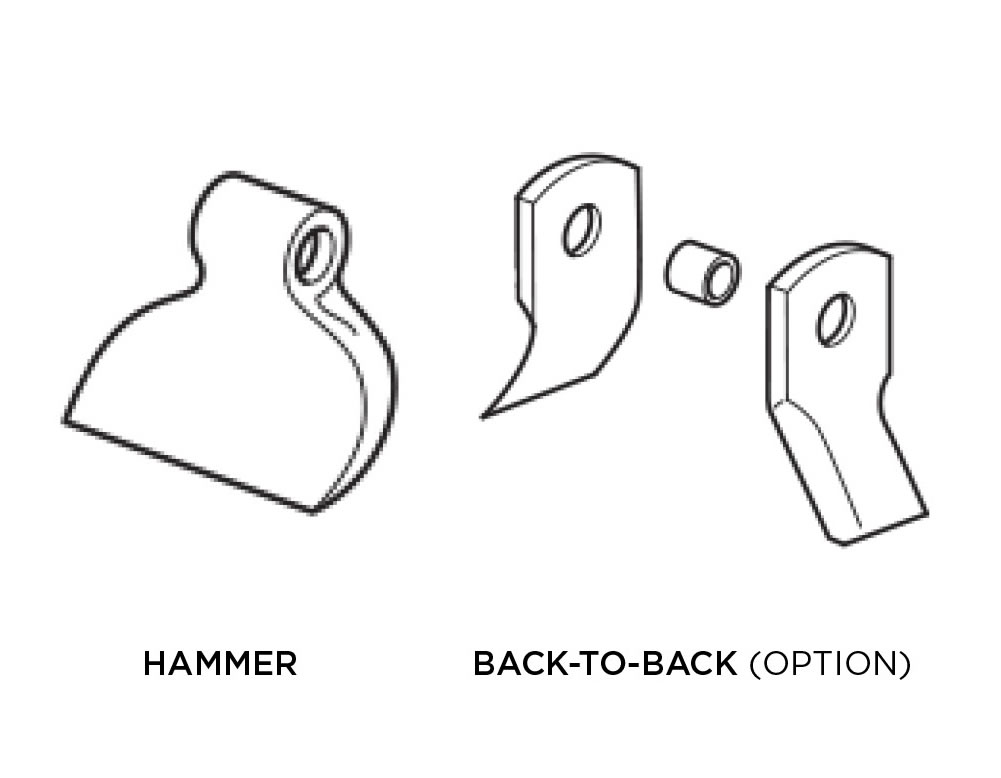

Flail: Heavy duty hammer flail
Flail quantity: 20
Flail tip speed: 48m/s (9448 fpm)
Rotor diameter: 159mm (6.3″)
Roller diameter: 140mm (5.5″)
Number of belts: 3
