This is our largest model with strength to match. Cutting a massive 9.1 metres at once, large-scale farmers, plus aviation and military organisations, welcome its might.

This machine has every feature you need to deliver intensively at speed. It boasts our 225HP driveline for maximum power. And five rotors work 30 blades in our famous Starcut formation.

The monocoque design provides incredible strength coupled with sleek top and under decks. This reduces cleaning too as debris has nowhere to hide. You’ll look forward to hitching up the Stubble Master 930 HD.

  • Largest, top-end machine for intensive cutting.
  • Power forward with a 225HP driveline.
  • Performance boosting specification.

AGRICULTURE
PASTURE
LIGHT SCRUB
HEAVY SCRUB
STUBBLE MANAGEMENT
AIRFIELD
HIGHWAYS

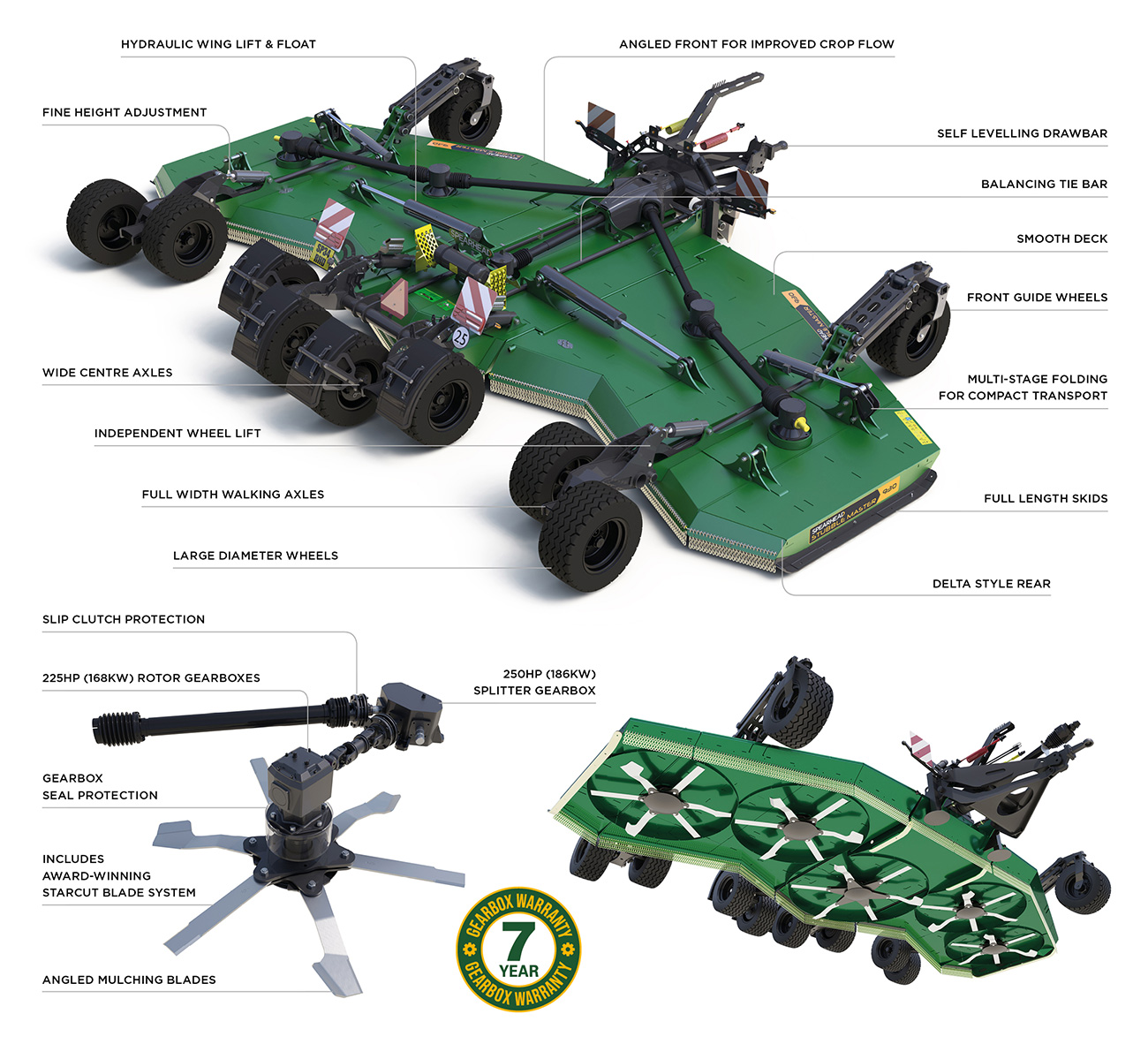

Features

Stubble Master 930HD Rotary Mulcher

Standard Specification

Machine weight*: 9800kg (21605lbs)
Hitch: Multi-positional drawbar
Cutting width: 9.10m (29′ 11″)
Transport machine width: 2.84m (9′ 4″)
Working machine width: 9.38m (30′ 10″)
Maximum working length: 6.99m (23′)
Transport length: 6.82m (22′ 5″)
Transport height: 3.72m (12′ 3″)
Deck height**: 0.35m (1′ 2″)
Transport height: 2.94m (9′ 8″)
Cutting height: 25mm – 400mm (1″ – 16″)
Cutting capacity: 100mm (4″)
Recommended tractor HP: 190hp / 142kW
Wing working angles: 15° up / 5° down
Power take-off speed: 1000 rpm
Gearbox(es): 6 x Cast iron housing
Input shaft: 1 3/4″ Z20 SFT tractor end
Gearbox lubricant [rotor]: EP80-90W or GL-4 / GL-5 oil
Gearbox lubricant [splitter]: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity [splitter gearbox]: 1 x 2.7 litres (4.7 pints)
Gearbox oil capacity [rotor gearboxes]: 5 x 2.1 litres (3.7 pints)
Deck construction: All welded construction
Deck material thickness: 5mm (3/16″)
Side skirt material thickness: 13mm (1/2″)
Skid construction: Replaceable bolt on skid shoes
Anti-scalp dish: 5mm (3/16″) round pan with blade holder bar
Blades standard: 15 x 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction. Handed.
Blades starcut: 15 x 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging low friction. Non-handed
Blade bolts: M24 C/W shank grade 8.8
Blade tip speed: 88mps (17322fpm)
Driveline: ASAE Category 10
Driveline protection: 2/4-way slip clutches on rotor gearboxes. Overrun on input shaft
Tailwheel mount assemblies: Tubular welded walking axles
Tailwheels: 8 x 265/70 R16.5 stubble resistant tyre with steel rim on rear
Front guard: Single chain guards on each deck
Rear guard: Single chain guards on each deck
*Weights may vary dependent on machine specification
**Underside of deck to skid
