Machine weight: 1150kg (2535lbs)
Hitch: Cat 2 with floating clevis top link
Hitch position: Front and rear mount
Cutting width: 2.80m (9′ 1″)
Overall width:3.00m (9′ 6″)
Overall length: 1.20m (3′ 11″)
Cowl height: 540mm (1′ 10″)
Cutting height: 25mm – 45mm (1″ – 1.8″)
Cutting capacity: 80mm (3.1″)
Maximum offset distance (hydraulic): 400mm (1′ 4″)
Recommended Tractor HP: 100 – 200hp (75 – 150kW)
Power take-off speed: 540/1000rpm

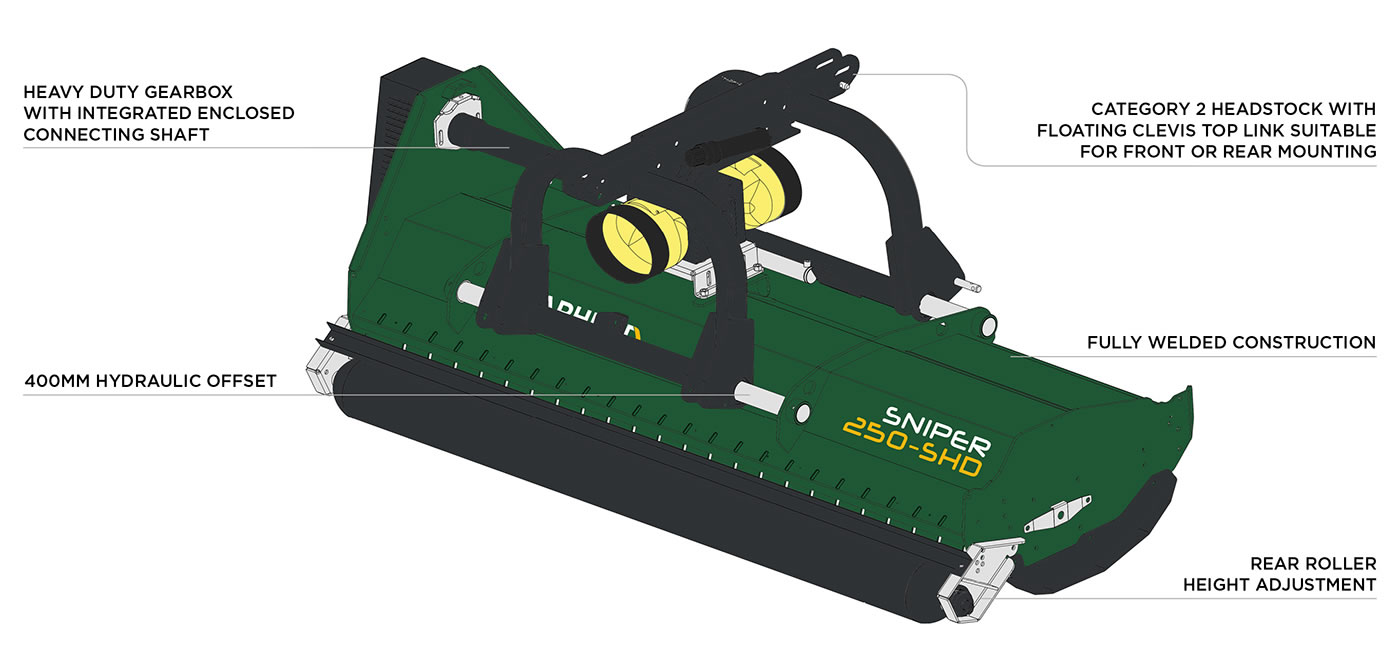

Gearbox: Cast iron housing with integrated enclosed connecting shaft
Input shaft: 1-3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 2.3 litres (4.0 pints)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid

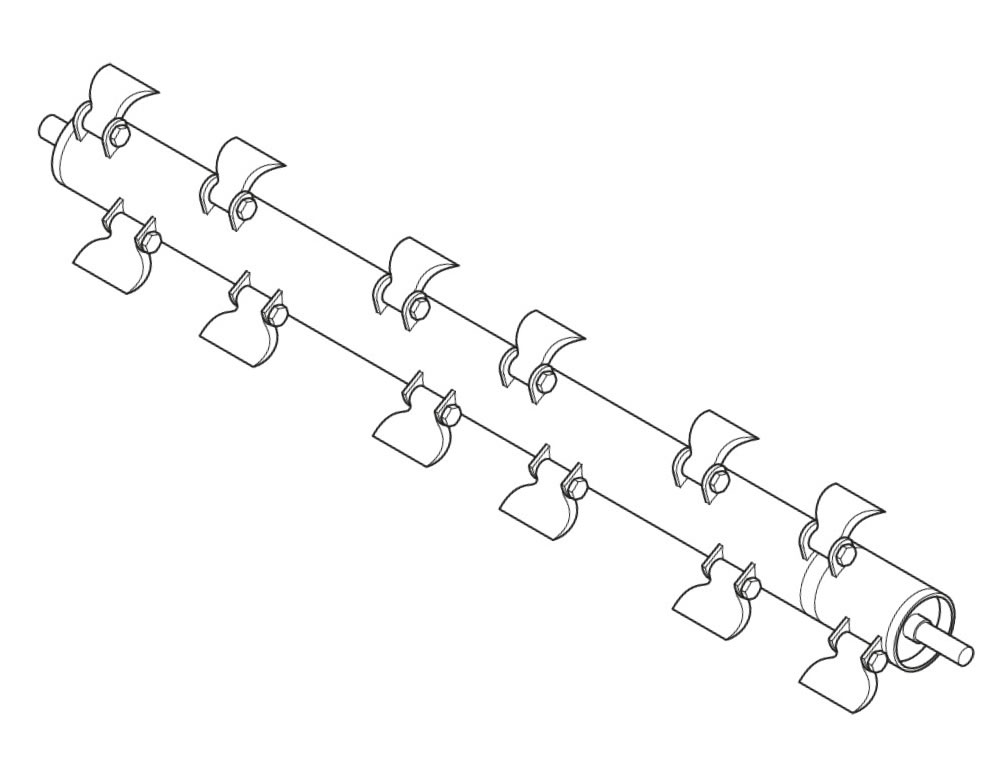

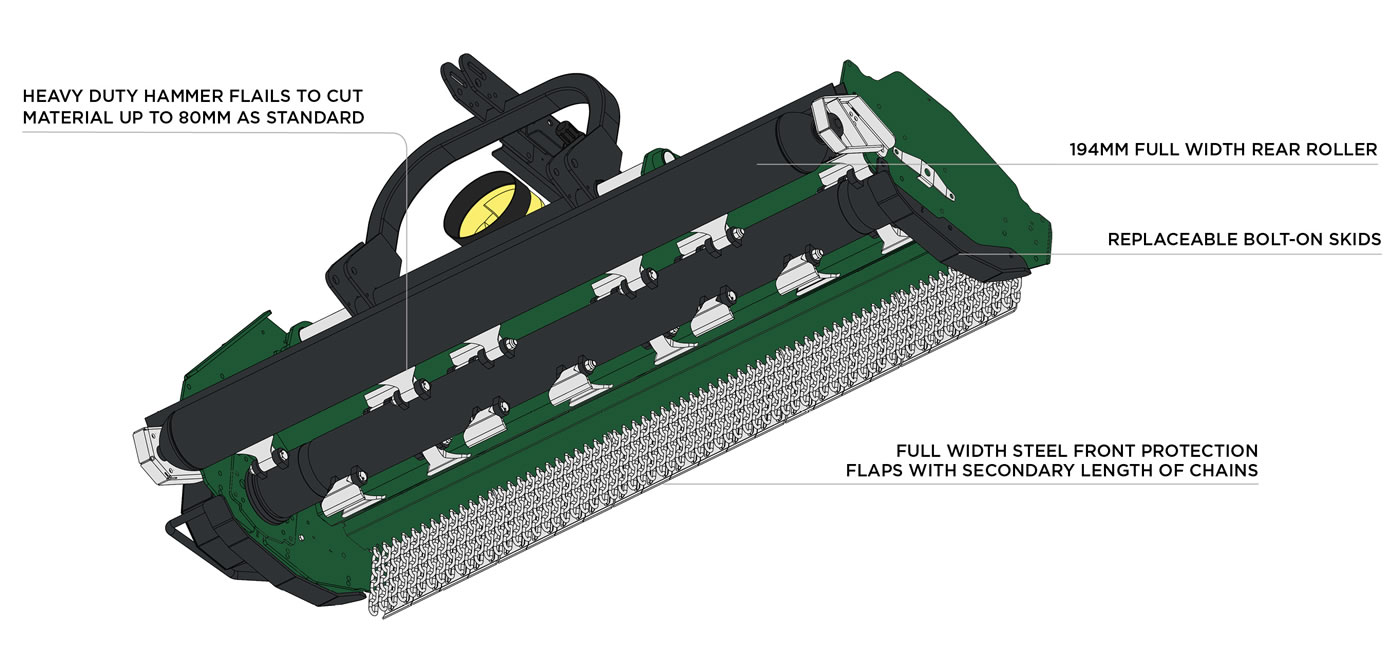

Flail: Heavy duty hammer flail
Flail quantity: 25
Flail tip speed: 50m/s (9842 fpm)
Rotor diameter: 168mm (6.6″)
Roller diameter: 194mm (7.6″)
Number of belts: 5
