The Multicut 650 PROLINE is boosted with additional output capability, enabling the comfortable clearance of more than 8 hectares per hour.

A walking axle design is standard across the full width of the machine delivering exceptional ground contour following and reduced shock loading in harsh field conditions.

Wider wheels are also fitted to add additional comfort and improved performance.

Spearhead’s renowned durability is built into this mower and the evenness of spread from the five rotors is unrivalled leaving a clean finish and high output unmatched by competitive three rotor machines of the same width.

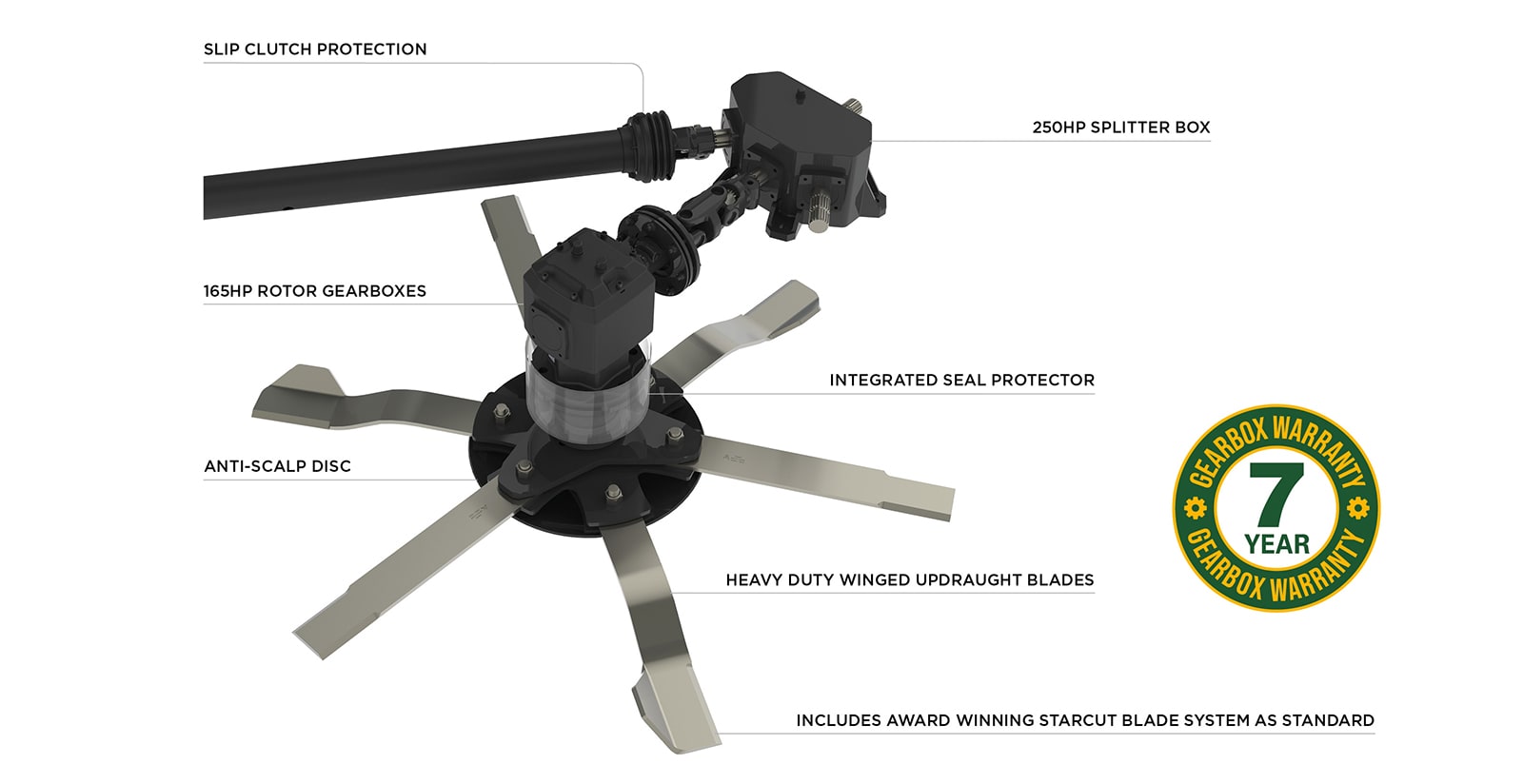

With a six gearbox driveline with more power than previously, with complete slip clutch protection on all driveshafts, the Multicut 650 PROLINE is designed to withstand the most demanding of work environments with exceptional reliability and durability certified with Spearhead’s extended 7 year gearbox warranty whilst allowing enhanced forward speeds and fuel efficiency

Watch the video


AGRICULTURE
PASTURE
LIGHT SCRUB
HEAVY SCRUB
STUBBLE MANAGEMENT
AIRFIELD
HIGHWAYS

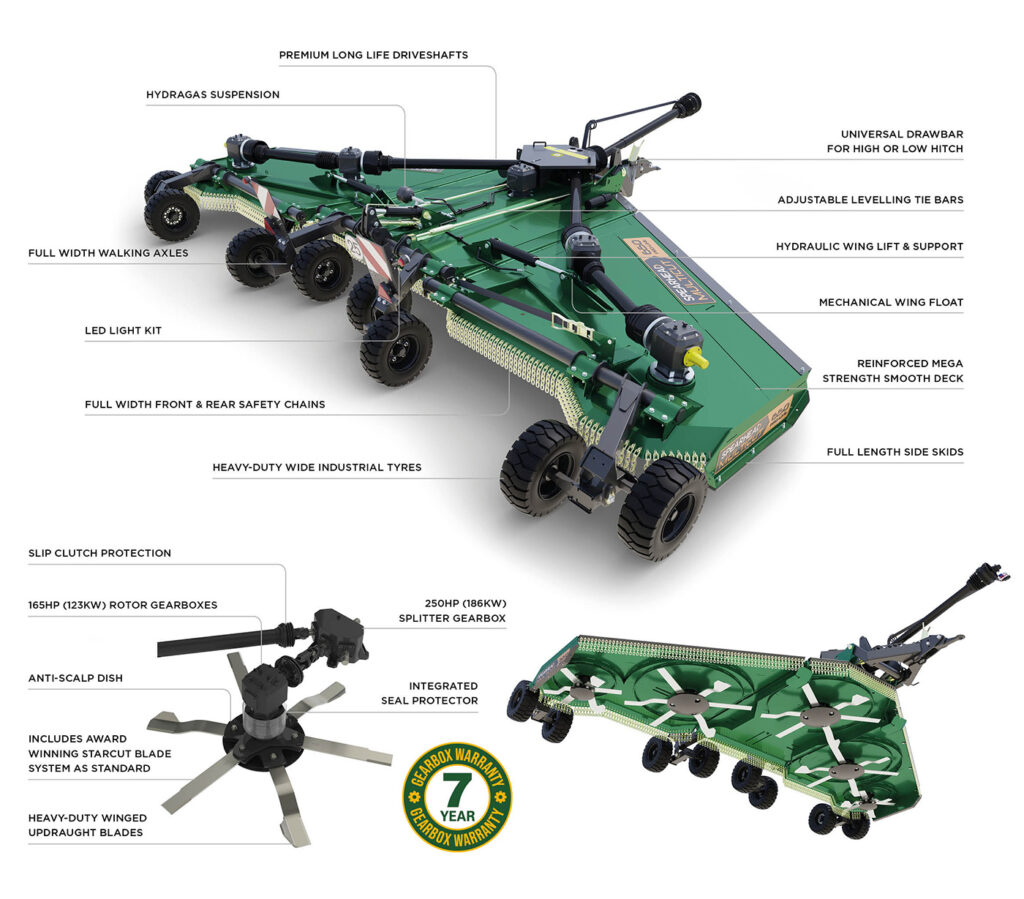

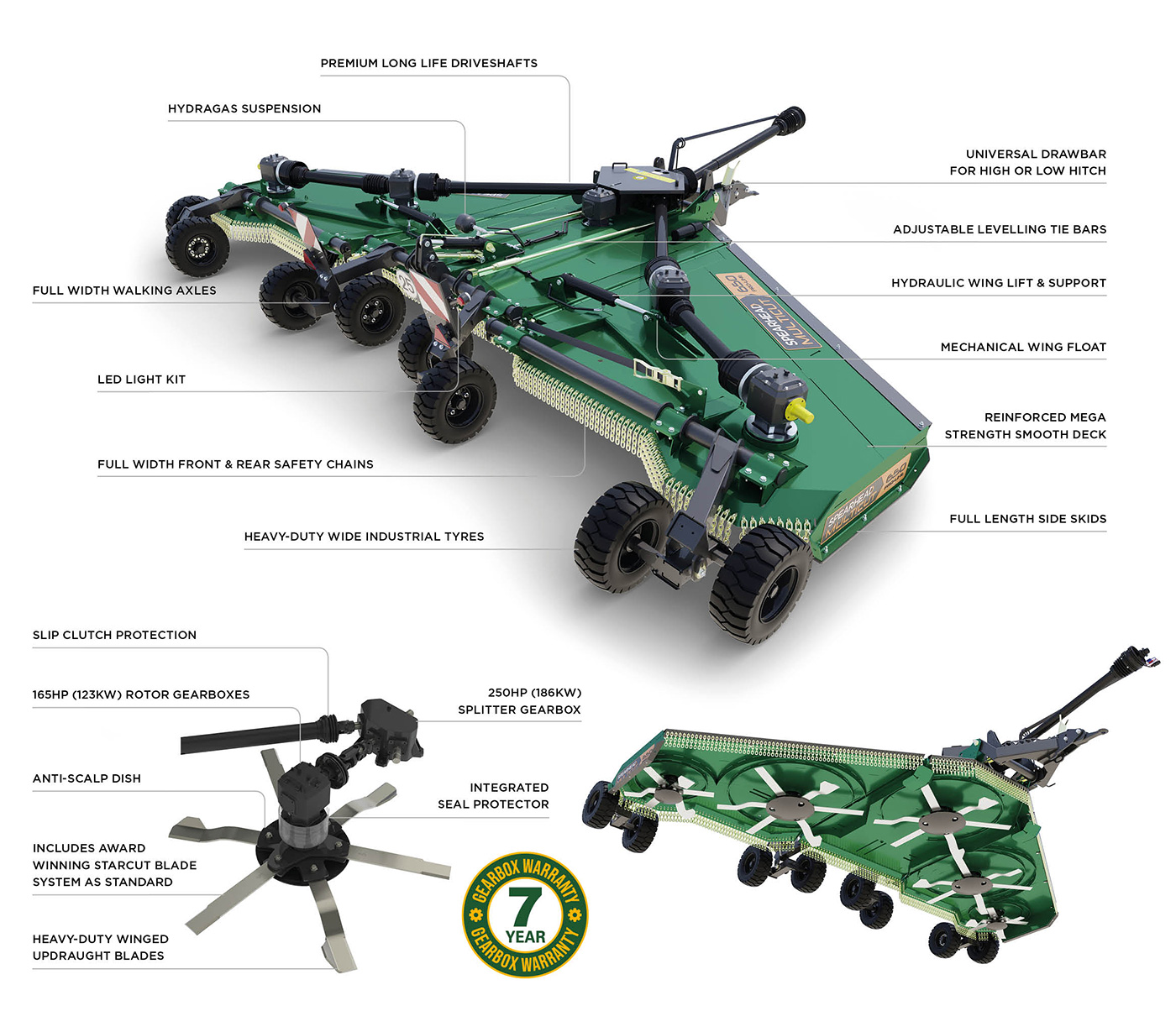

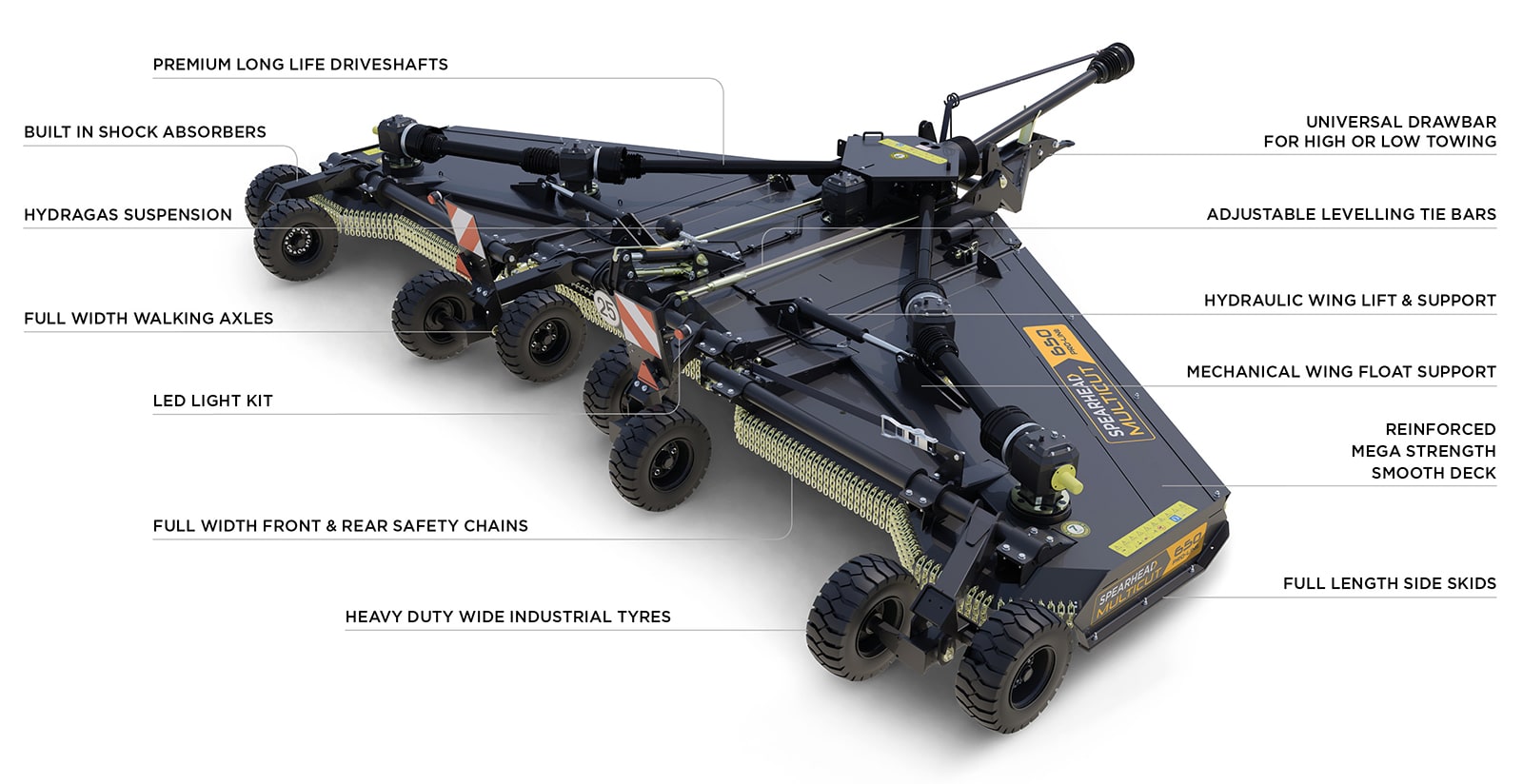

Features

Multicut 650 Proline Rotry Mower
Multicut 650 Proline Rotry Mower

Standard Specification

Machine weight*: 3300kg / 7275lbs
Hitch: Multi-positional drawbar
Cutting width: 6.28m / 20′ 7″
Working machine width: 6.47m / 21′ 3″
Transport machine width: 2.70m / 8′ 10″
Maximum working length: 5.07m / 16′ 8″
Transport length: 4.93m / 16′ 3″
Deck height**: 0.23m / 9″
Transport height: 2.90m / 9′ 7″
Cutting height: 25mm – 210mm (1″ – 8 1/4″)
Cutting capacity: 100mm / 4″
Wing working angles: 45° up/15° down
Recommended tractor HP: 90hp / 67kW
Power take-off speed: 1000 rpm
Gearbox [splitter]: Cast Iron housing
Gearbox [rotor gearbox (x5)]: Cast Iron housing
Input shaft: 1-3/8″ Z21 or Z6 SFT 8 tractor end
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity [splitter gearbox]: 2.7 litres / 4.7 pints
Gearbox oil capacity [centre + inner rotor gearboxes (x3)]: 4.3 litres / 7.6 pints
Gearbox oil capacity [outer rotor gearboxes (x2)]: 4.3 litres / 7.6 pints
Deck construction: All welded construction
Deck material thickness: 6mm (1/4″)
Side skirt material thickness: 5mm (3/16″)
Skid construction: Replaceable bolt on skid shoes
Anti-scalp dish [centre rotor + inner wing rotors]: 6mm (1/4″) round pan with blade holder bar
Anti-scalp dish [Outer Wing Rotors (x2)]: 5mm (3/16″) round pan with blade holder bar
Blades (15): 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction
Blade tip speed: 79mps / 15551fpm
Driveline: ASAE Category 6
Driveline protection: 2/4-way slip clutches on rotor gearboxes. Overrun on input shaft
Tailwheel mount assemblies: Tubular welded walking axles
Tailwheels (x8): 21×9 14 PLY wide pneumatic tyre with steel rim
Front guard: Single chain guards on each deck
Rear guard: Single chain guards on each deck

*With front and rear single chain guards
**Underside of deck to skid
