Overview
A heavy-duty vegetation control solution. With a 1.6 metre width, you won’t find a tougher compact machine.

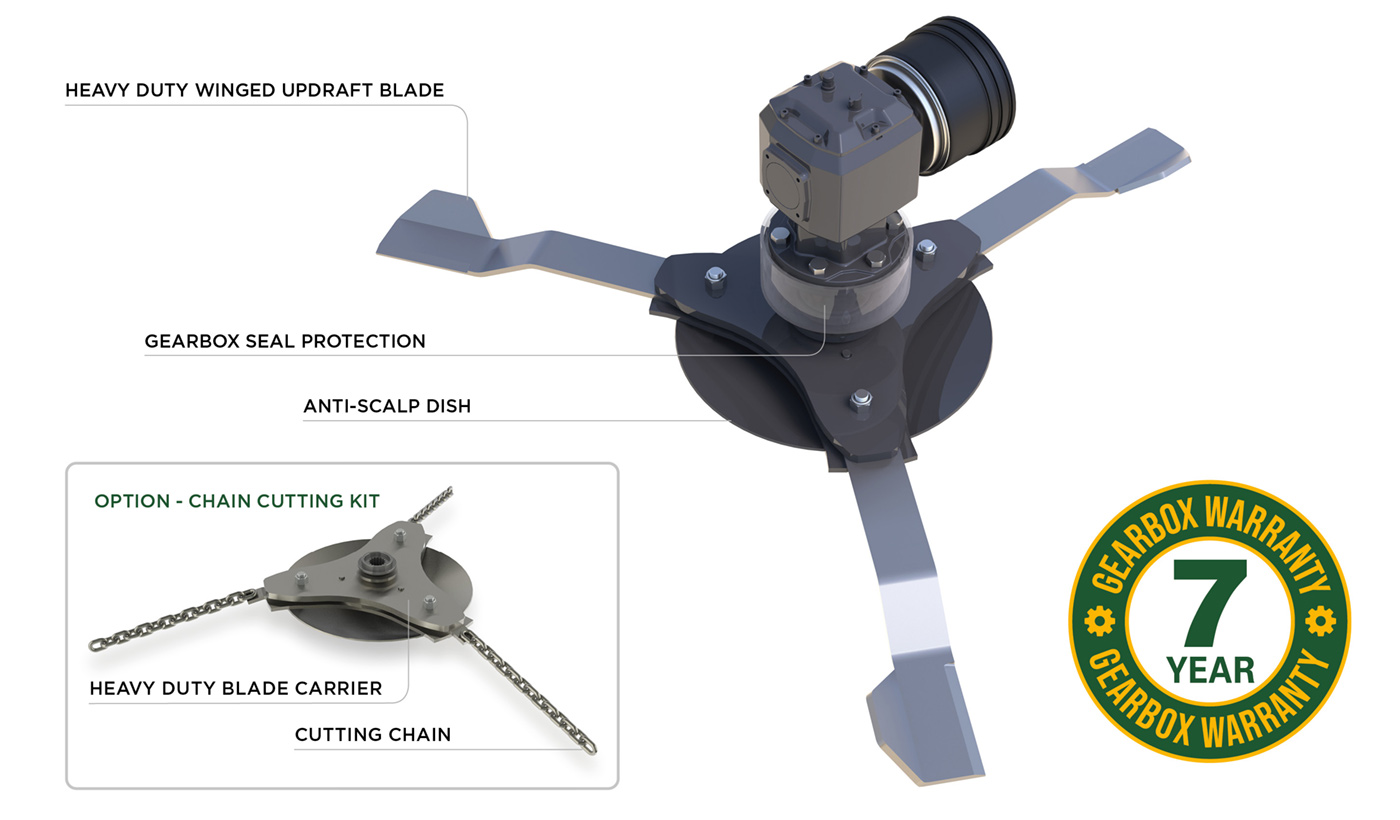

Three 12mm thick blades confidently cut and mulch scrub up to 100mm in diameter. Alternatively, opt for the chain kit when you have rocky terrain. Keeping stones in place, you’ll avoid blade damage too.
Powered by our 165hp (123kW) gearbox (backed by a 7-year warranty), maximise your productivity in demanding environments.
- Compact machine ideal for challenging scrub.
- Choose between 12mm blades or chains.
- Work faster with our 165hp (123kW) gearbox.
| AGRICULTURE |
| PASTURE |
| LIGHT SCRUB |
| AIRFIELD |
| STUBBLE MANAGEMENT |

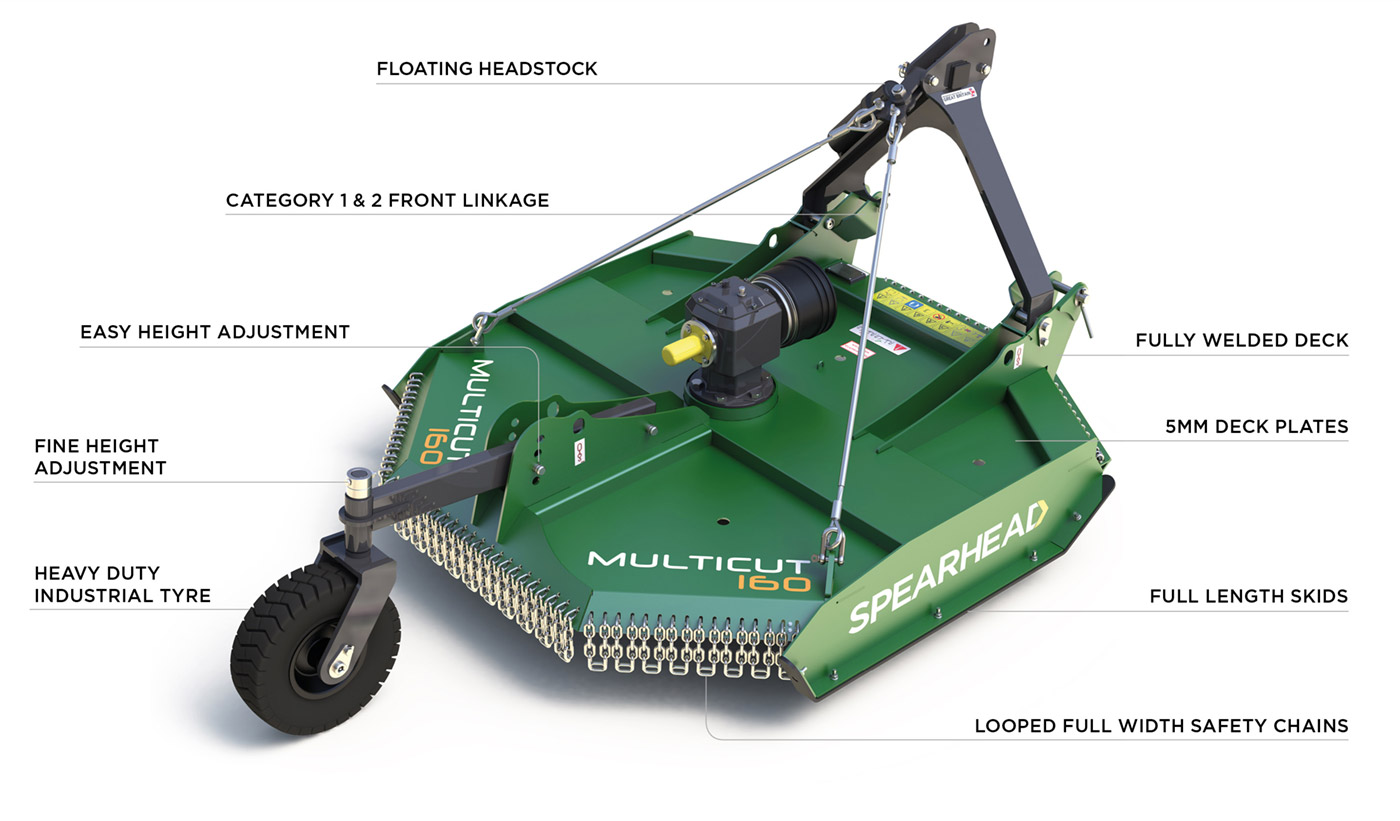

Features
Dimensions
Specifications
Minimum weight guide: 2900kg (6394lbs)
Machine weight*: 520kg (1190lbs)
Hitch: Category 1/2 with floating clevis top link
Cutting width: 1.60m (5′ 3″)
Overall width / Transport width:1.79m (5′ 11″)
Overall length: 2.73m (9′)
Deck height**: 0.24m (10″)
Cutting height: 30mm – 260mm (1 3/16″ – 10 1/4″)
Cutting capacity: 100mm (4″)
Recommended tractor HP: 40hp (30kW)
Power take-off speed: 540rpm
Gearbox rating: 165hp (123kW)
Number of rotors: 1
Gearbox: 1 x Cast iron housing
Input shaft: 1 3/8″ Z6 input shaft
Gearbox lubricant: 85W-140 oil
Gearbox oil capacity: 4.3 litres (7.6 pints)
Deck construction: All welded construction
Deck material thickness: 5mm (3/16″)
Side skirt material thickness: 6mm (1/4″)
Skid construction: Replaceable bolt-on skid shoes
Anti-scalp dish: Round pan 6mm (1/4″) with blade holder bar
Blades (x3): 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction
Blade bolts: M24 C/W shank grade 8.8
Blade tip speed: 87 m/s (17126 fpm)
Driveline: ASAE Category 6
Driveline protection: 2 plate slip clutch
Tailwheel mount assembly: Welded box section arm and caster fork with 360 degree swivel
Tailwheel: 1 x 5.00-8 rubber tyre with steel hub
Front guard: Looped chain guard
Rear guard: Looped chain guard
Options: 6 or 21 spline input driveshaft / Chain cutting kit
* Weight may vary dependent on machine specification
** Underside of deck to skid
