The Sniper RS brings the same features as the standard Spearhead Sniper with the added ability of being assembled for its operation front or rear mounted thanks to a cowl construction which allows for the headstock assembly to be fitted in two different ways.

This cost-effective machine can be attached to a wide range of prime movers with the addition of 400mm hydraulic sideshift ability allowing the machine greater access to cut in harder to reach farmland and pasture areas.

All Sniper RS machines come with a minimum of 24 hammer flails, operating at a high tip speed via a 540rpm input multi-belt driveline. This is combined with a 140mm full width adjustable, self-cleaning rear roller with scraper to ensure a professional, well distributed cut in material up to 40mm in diameter.

AGRICULTURE
PASTURE
AMENITY
LIGHT SCRUB

Features

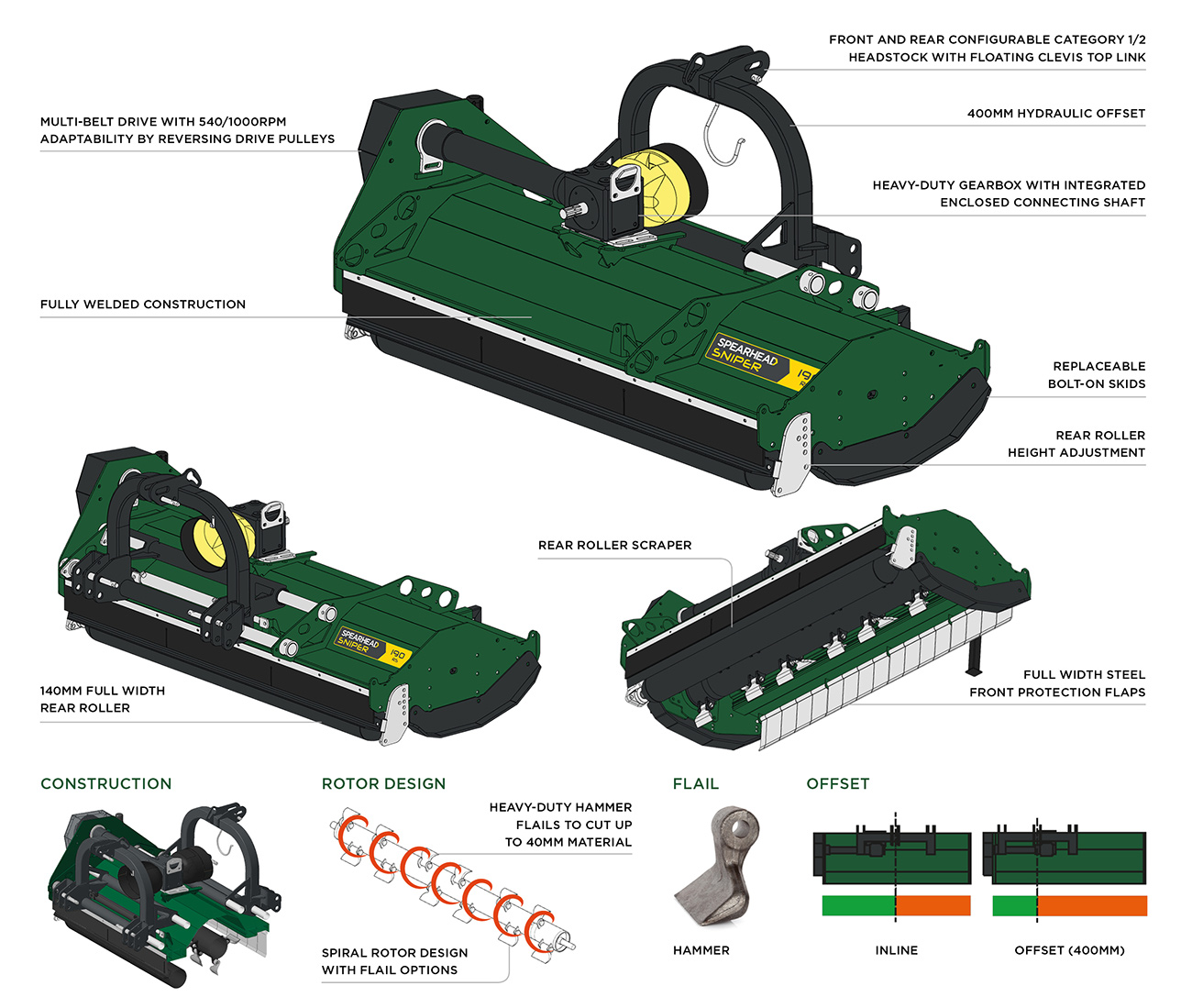

Sniper RS Flail Mower features

*For inspection purposes only and not to opened whilst working. Spearhead Machinery claims no responsibility for accident or incident arising from the opening of the inspection area whilst the machine is in operation.

Specifications

Minimum weight guide: 2900kg (6393lbs)
Machine weight*: 525kg (1158lbs)
Hitch: Cat 1-2 with floating clevis top link
Hitch position: Front and rear mount
Cutting width: 1.90m (6′ 3″)
Overall width:2.11m (6′ 11″)
Overall length: 1.10m (3′ 7″)
Cowl height**: 0.93m (3′ 1″)
Cutting height: 15mm – 65mm (9/16″ – 2 9/16″)
Cutting capacity: 40mm (1 9/16″)
Maximum offset distance: 400mm (1′ 4″)
Offset type: Hydraulic
Recommended Tractor HP: 50 – 130hp (37 – 97kW)
Power take-off speed: 540 / 1000rpm
Gearbox: Cast iron housing with integrated enclosed connecting shaft
Input shaft: 1 3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 1.2 litres (2.1 pints)
Belt quantity: 4
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail: Heavy-duty hammer flail
Flail quantity: 24
Flail tip speed: 48 m/s (9448 fpm)
Rotor diameter: 159mm (6.3″)
Roller diameter: 140mm (5.5″)
*Weights may vary dependent on machine type and specification
**Top of cowl to floor

Minimum weight guide: 2900kg (6393lbs)
Machine weight*: 590kg (1301lbs)
Hitch: Cat 1-2 with floating clevis top link
Hitch position: Rear mount only
Cutting width: 2.25m (7′ 5″)
Overall width:2.41m (7′ 11″)
Overall length: 1.10m (3′ 7″)
Cowl height**: 0.93m (3′ 1″)
Cutting height: 15mm – 65mm (9/16″ – 2 9/16″)
Cutting capacity: 40mm (1 9/16″)
Maximum offset distance: 400mm (1′ 4″)
Offset type: Hydraulic
Recommended Tractor HP: 60 – 130hp (45 – 97kW)
Power take-off speed: 540 / 1000rpm
Gearbox: Cast iron housing with integrated enclosed connecting shaft
Input shaft: 1 3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 1.2 litres (2.1 pints)
Belt quantity: 5
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail: Heavy duty hammer flail
Flail quantity: 28
Flail tip speed: 48 m/s (9448 fpm)
Rotor diameter: 159mm (6 1/4″)
Roller diameter: 140mm (5 1/2″)
*Weights may vary dependent on machine type and specification
**Top of cowl to floor

Minimum weight guide: 2900kg (6393lbs)
Machine weight*: 650kg (1433lbs)
Hitch: Cat 1-2 with floating clevis top link
Hitch position: Front and rear mount
Cutting width: 2.50m (8′ 2″)
Overall width:2.71m (8′ 11″)
Overall length: 1.10m (3′ 7″)
Cowl height**: 0.93m (3′ 1″)
Cutting height: 15mm – 65mm (9/16″ – 2 9/16″)
Cutting capacity: 40mm (1 9/16″)
Maximum offset distance: 400mm (1′ 4″)
Offset type: Hydraulic
Recommended Tractor HP: 80 – 130hp (60 – 97kW)
Power take-off speed: 540 / 1000rpm
Gearbox: Cast iron housing with integrated enclosed connecting shaft
Input shaft: 1 3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 1.2 litres (2.1 pints)
Belt quantity: 5
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail: Heavy duty hammer flail
Flail quantity: 32
Flail tip speed: 48 m/s (9448 fpm)
Rotor diameter: 159mm (6 1/4″)
Roller diameter: 140mm (5 1/2″)
*Weights may vary dependent on machine type and specification
**Top of cowl to floor
