Machine weight: 235kg (518lbs)
Hitch: Cat 1-2 with floating clevis top link
Hitch position: Rear mount only
Cutting width: 1.50m (4′ 11″)
Overall width:1.67m (5′ 6″)
Overall length: 0.78m (2′ 7″)
Cowl height: 422mm (1′ 5″)
Cutting height: 10mm – 50mm (0.4″ – 2″)
Cutting capacity: 30mm (1.2″)
Maximum offset distance (hydraulic): 100mm (4″)
Recommended Tractor HP: 15 – 30hp (12 – 23kW)
Power take-off speed: 540/1000rpm

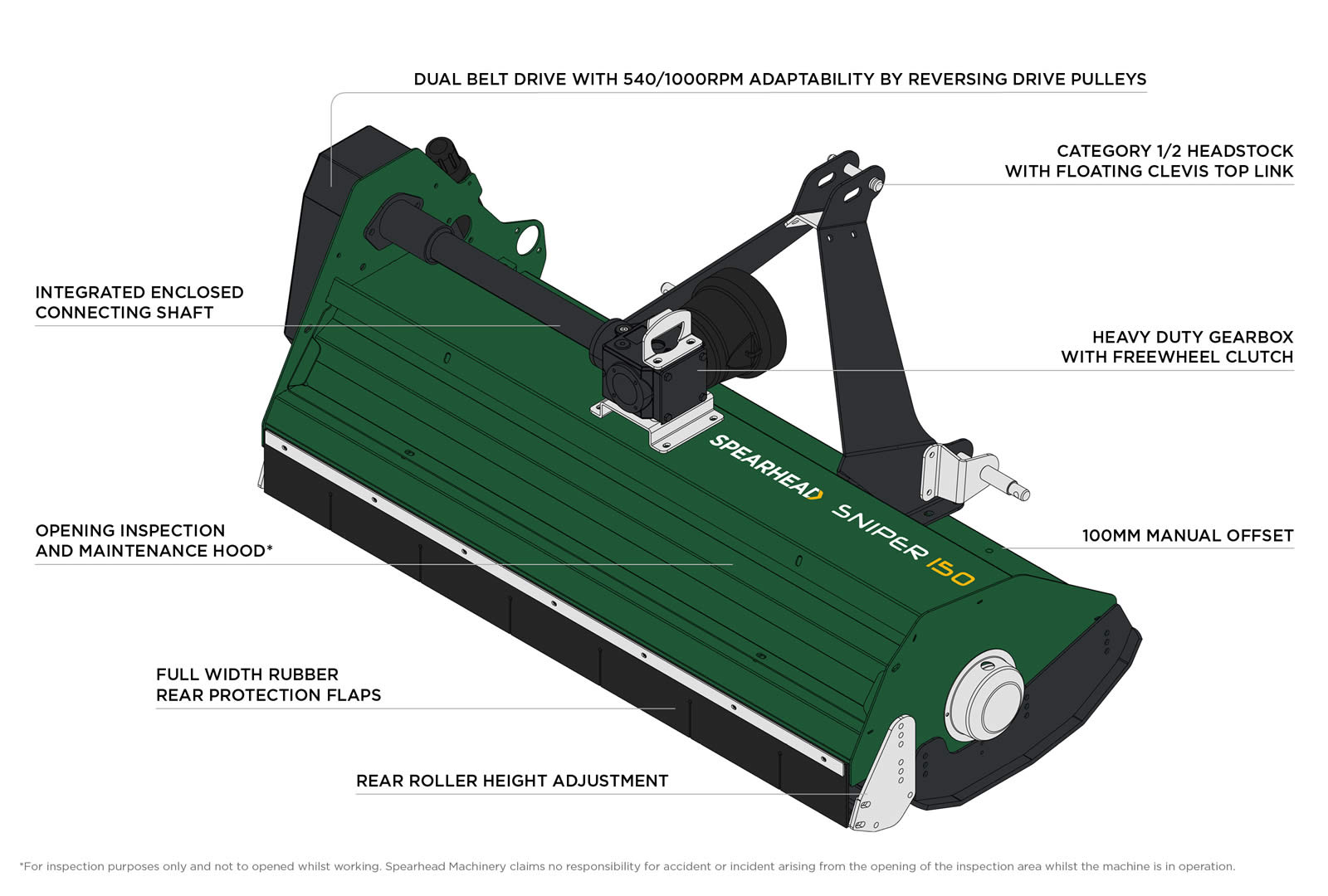

Gearbox: Cast iron housing with integrated enclosed connecting shaft
Input shaft: 1-3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 0.8 litres (1.7 pints)
Cowl construction: All welded construction

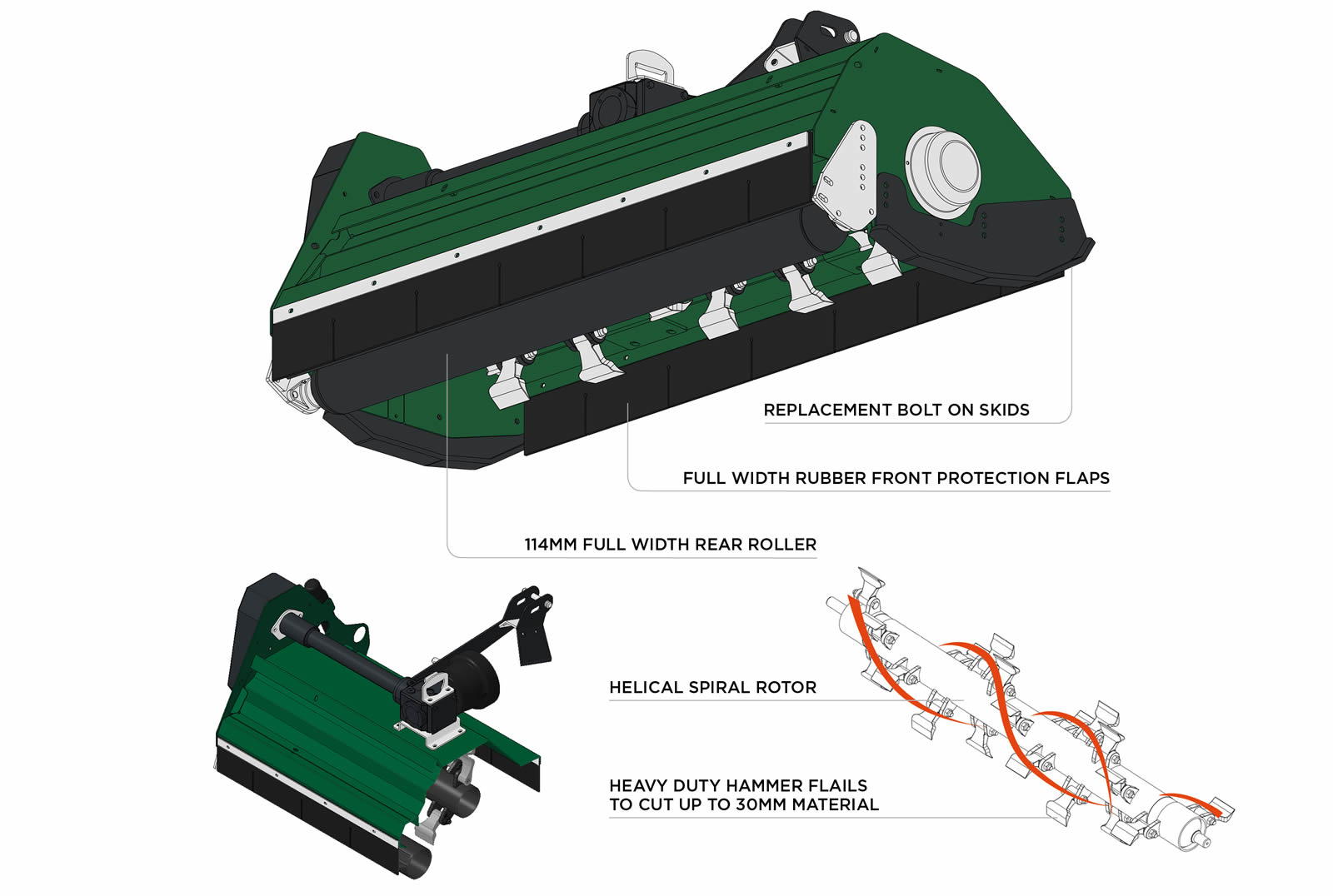

Skid construction: Replaceable bolt-on skid
Flail: Heavy duty hammer flail
Flail quantity: 22
Flail tip speed: 41 m/s (8070 fpm)
Rotor diameter: 114mm (4.5″)
Roller diameter: 114mm (4.5″)
Number of belts: 2
