The Multicut 420 is a 3-point linkage mounted machine ideal for use with tractors of 80hp and above. Sitting perfectly between the fixed and trailed mowing units available on today’s market, the Multicut 420 100 gives added versatility alongside a host of innovative features. The machine features inward folding wings to keep the transport width within 2.8m, meaning narrow lanes are easily negotiated and no on road towing kit is required.

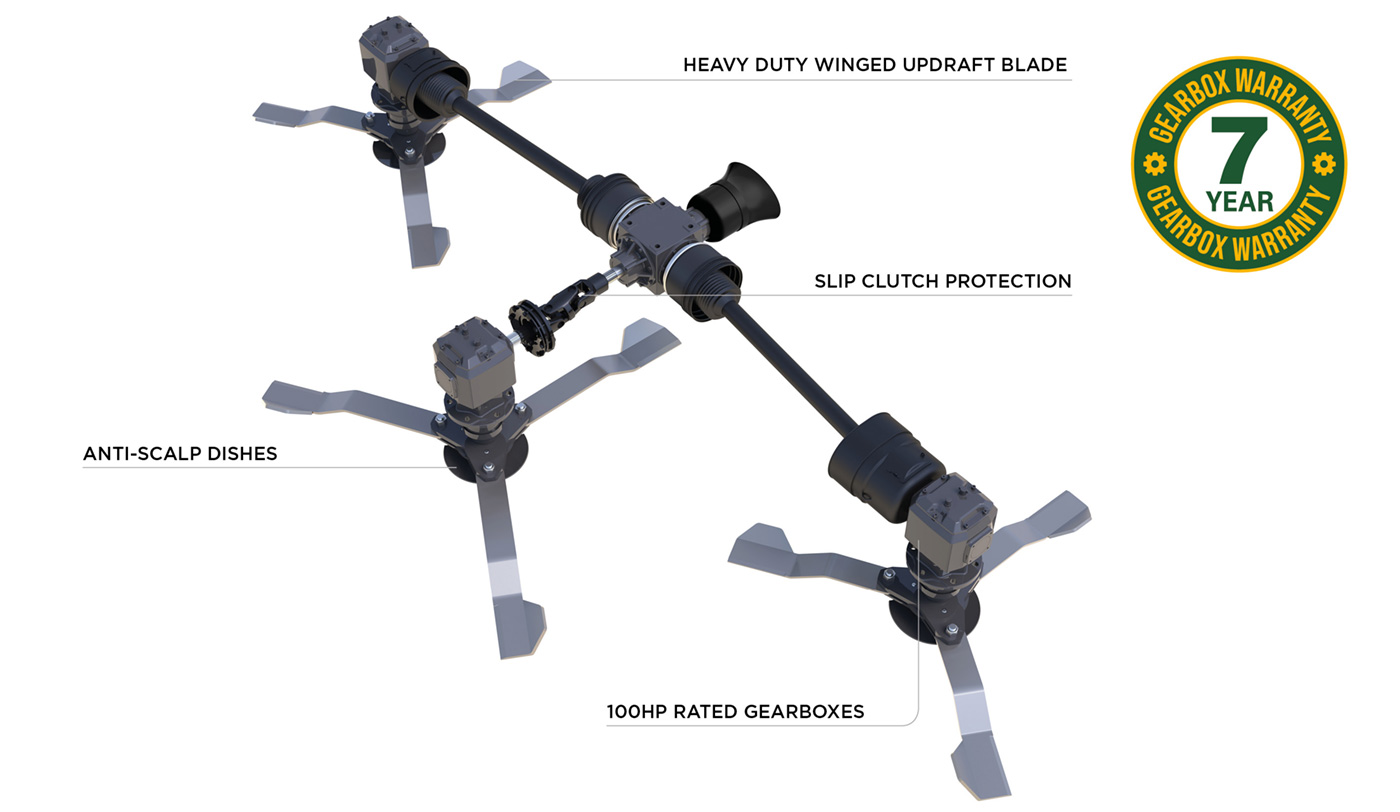

A 100hp heavy-duty driveline operating at 1000rpm fitted with three rotors with three blades operating at over 80 metres per second as standard give effortless cutting power in intense working conditions.

A delta style construction allows for a smooth throughout of material in and out of the machine combined with a floating linkage to leave a perfect working image even in very rough terrain. Rapid in field cutting height is changed by adjusting each of the four wheel arms on the machine which each feature a heavy duty industrial wheel and tyre.


Video

Watch the video


AGRICULTURE
PASTURE
LIGHT SCRUB
AIRFIELD
STUBBLE MANAGEMENT

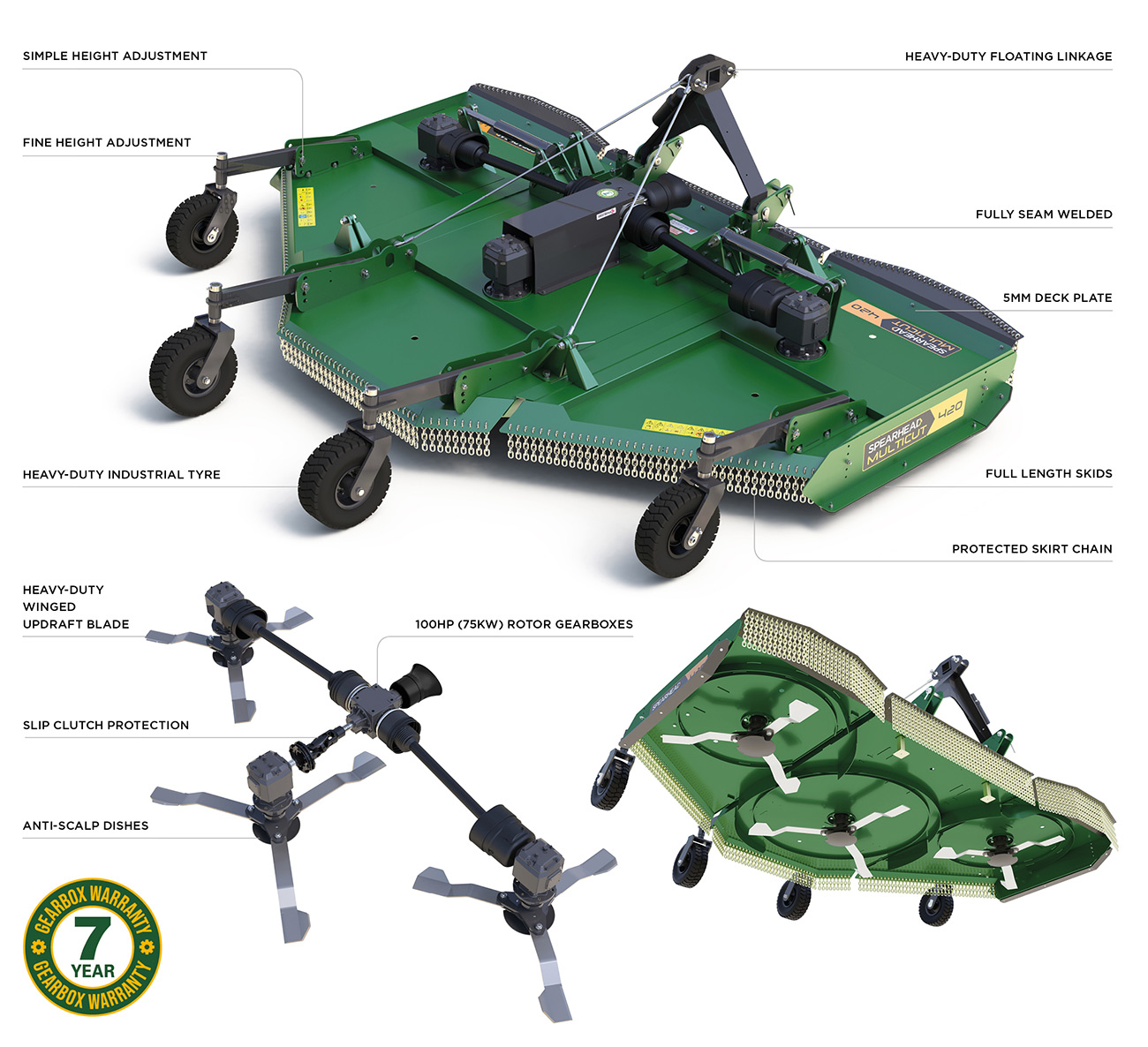

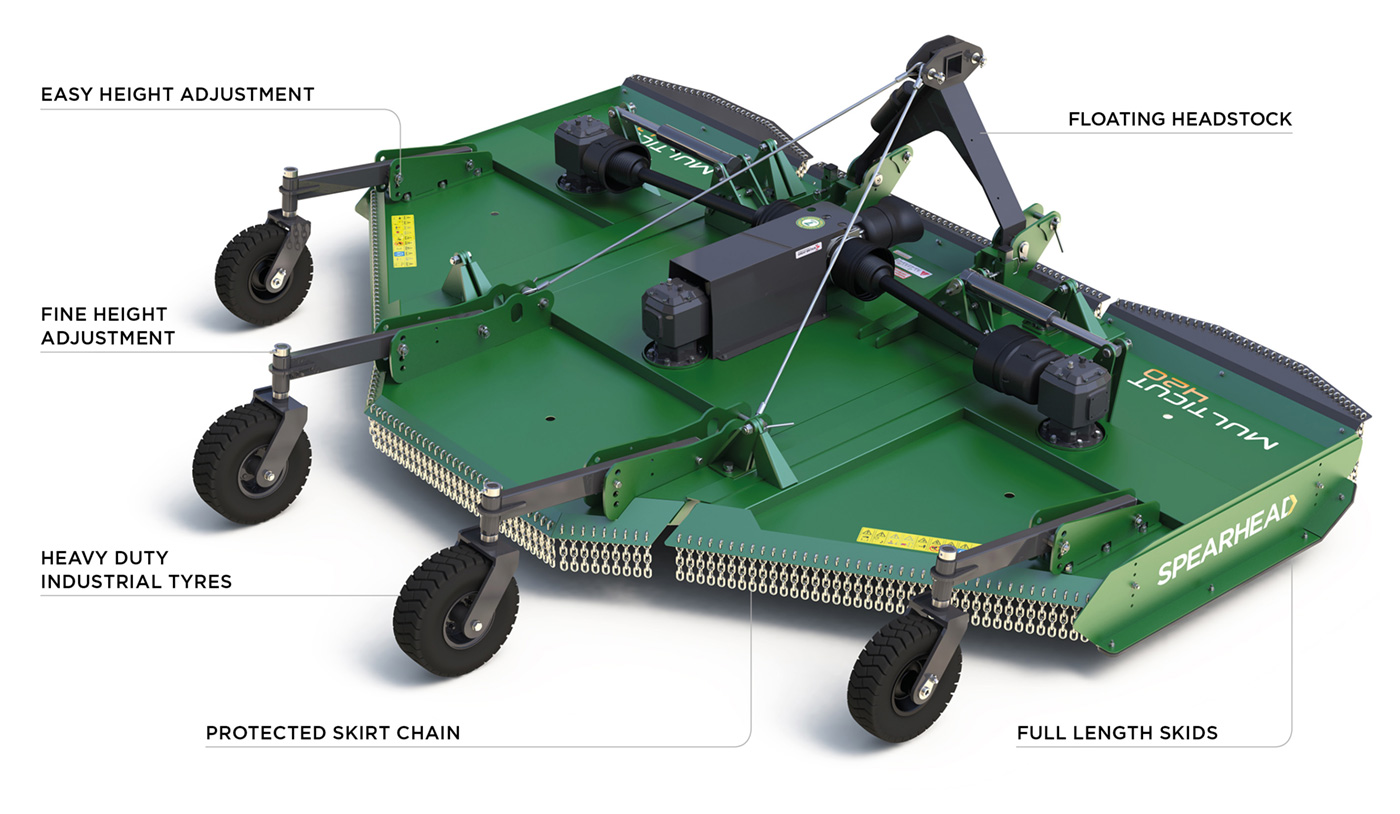

Features

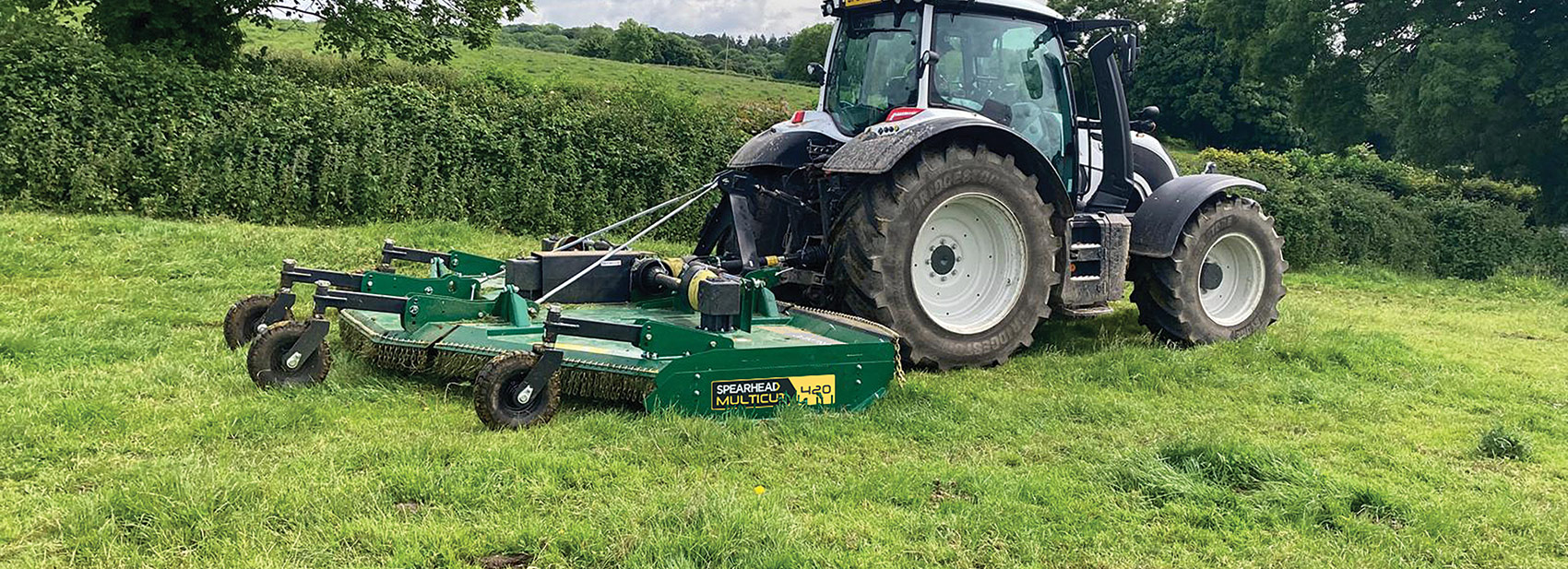

Multicut 420 Rotary Mower

Specifications

Machine weight*: 1875kg (4134lbs)
Hitch: Category 2 with floating clevis top link
Cutting width: 4.45m (14′ 7″)
Overall width:4.71m (15′ 6″)
Overall length: 3.62m (11′ 11″)
Deck height**: 0.73m (2′ 5″)
Cutting height: 25mm – 400mm (1″ – 1′ 4″)
Cutting capacity: 100mm (4″)
Recommended tractor HP: 80hp (60kW)
Power take-off speed: 1000rpm
Gearbox: Cast iron housing
Input shaft: 1 3/8″ Z6 input shaft
Gearbox lubricant: Lithium EP000 semi fluid grease
Gearbox oil capacity [splitter gearbox]: 4.3 litres (7.6 pints)
Gearbox oil capacity [rotor gearboxes (x2)]: TBC
Deck construction: All welded construction
Deck material thickness: 4mm (3/16″)
Side skirt material thickness: 6mm (1/4″)
Anti-scalp dish: 5mm (3/16″) round pan with blade holder bar
Blades (x6): 10mm (3/8″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction
Blade bolts: M24 C/W shank grade 8.8
Blade tip speed: 75 m/s (14764 fpm)
Driveline: ASAE Category 5
Driveline protection: Overrun clutch on input PTO shaft and 2-plate slip clutches on wing driveshafts
Tailwheel mount assembly: Welded box section arm and caster fork with 360 degree swivel
Tailwheel: 5.00-8 rubber tyre with steel hub
Front guard: Single, two-piece chain guard
Rear guard: Single chain guard
* Weight may vary dependent on machine specification
** Underside of deck to skid
