Overview
The Sniper flail mower is designed for agricultural and municipal use giving a high quality and consistent cut in material up to 40mm. It is the perfect choice for maintenance of farmland and pasture areas.

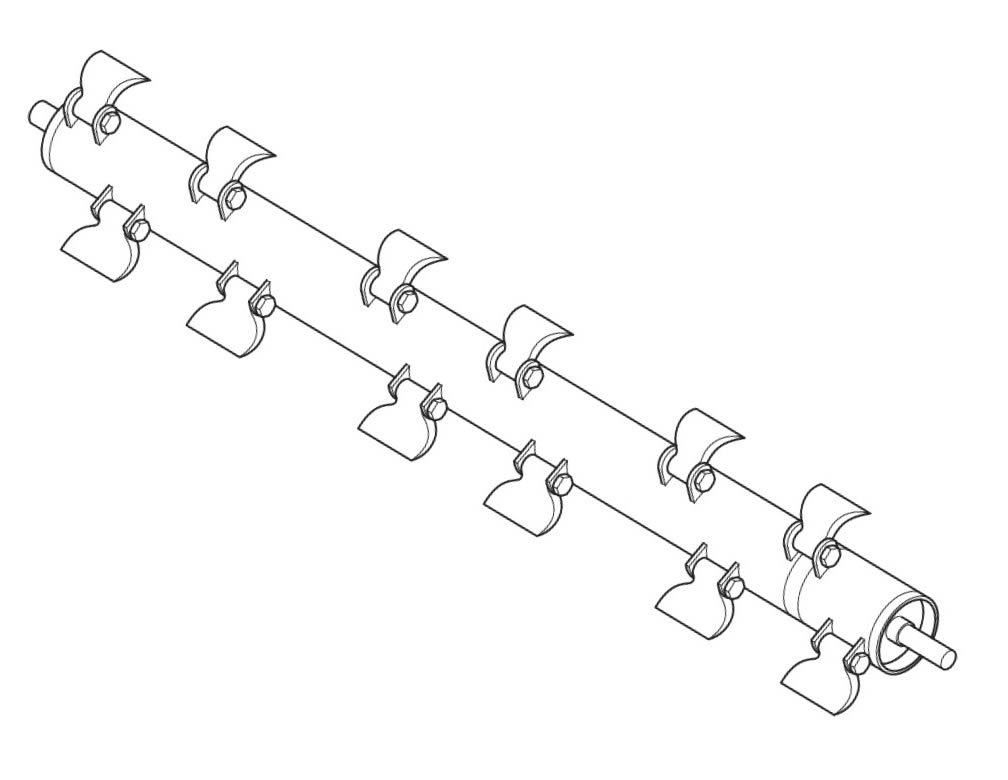

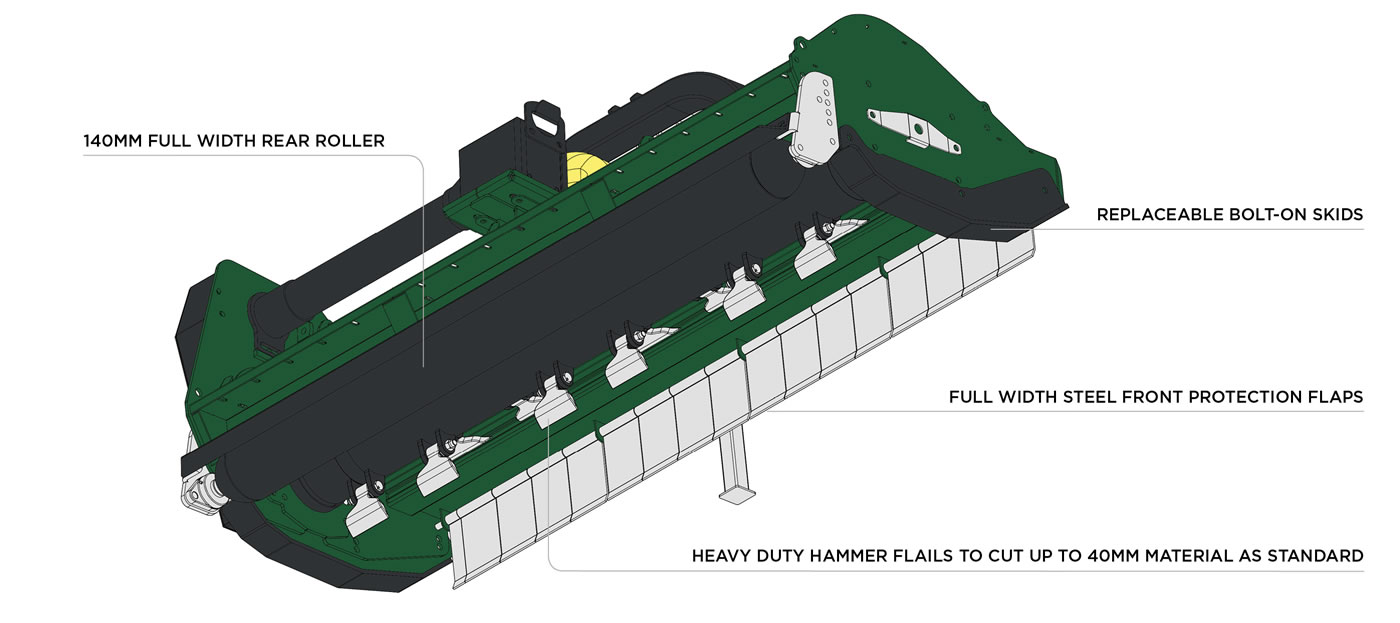

This robust machine features heavy duty hammer flails fitted on an electronically balanced rotor mounted on enclosed, self-aligning bearings. Belt drive gives reliable power transmission and a 140mm full width adjustable, self-cleaning rear roller with scraper will ensure a quality cut and well distributed finish.

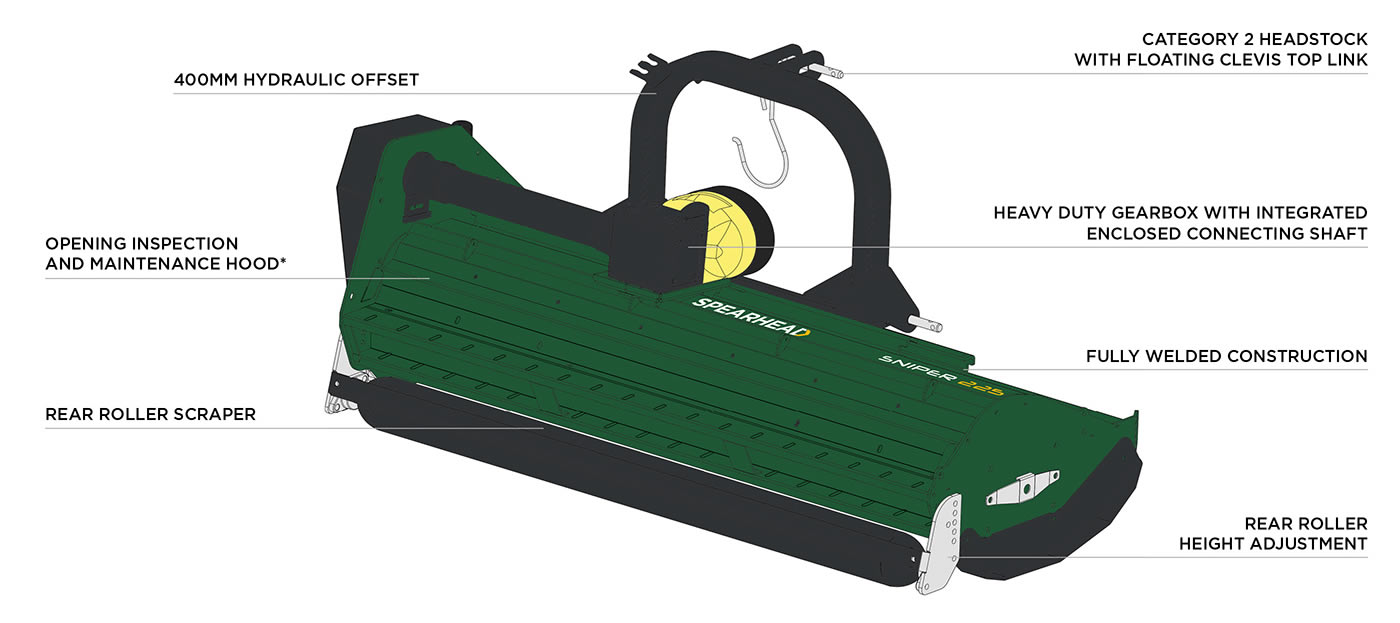

The Sniper range is available in a choice of working widths between 1.9 and 2.7 metres with operating flexibility offered by a 400mm hydraulic side shift that allows work around trees and other obstructions.
| AGRICULTURE |
| PASTURE |
| AMENITY |
| LIGHT SCRUB |
Features
*For inspection purposes only and not to opened whilst working. Spearhead Machinery claims no responsibility for accident or incident arising from the opening of the inspection area whilst the machine is in operation.
Specifications
Minimum weight guide: 2900kg (6393lbs)
Machine weight*: 500kg (1102lbs)
Hitch: Cat 2 with floating clevis top link
Hitch position: Rear mount only
Cutting width: 1.90m (6′ 3″)
Overall width:2.10m (6′ 11″)
Overall length: 0.95m (3′ 2″)
Cowl height**: 480mm (1′ 7″)
Cutting height: 15mm – 65mm (9/16″ – 2 9/16″)
Cutting capacity: 40mm (1 9/16″)
Maximum offset distance: 400mm (1′ 4″)
Offset type: Hydraulic
Recommended Tractor HP: 50 – 130hp (37 – 97kW)
Power take-off speed: 540 / 1000rpm
Gearbox: Cast iron housing with integrated enclosed connecting shaft
Input shaft: 1 3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 1.2 litres (2.1 pints)
Belt quantity: 4
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail: Heavy duty hammer flail
Flail quantity: 24
Flail tip speed: 48 m/s (9448 fpm)
Rotor diameter: 159mm (6.3″)
Roller diameter: 140mm (5.5″)
*Weights may vary dependent on machine type and specification
**Top of cowl to floor
**Top of cowl to floor
Minimum weight guide: 2900kg (6393lbs)
Machine weight*: 565kg (1246lbs)
Hitch: Cat 2 with floating clevis top link
Hitch position: Rear mount only
Cutting width: 2.25m (7′ 5″)
Overall width:2.45m (8′ 1″)
Overall length: 0.95m (3′ 2″)
Cowl height**: 480mm (1′ 7″)
Cutting height: 15mm – 65mm (9/16″ – 2 9/16″)
Cutting capacity: 40mm (1 9/16″)
Maximum offset distance: 400mm (1′ 4″)
Offset type: Hydraulic
Recommended Tractor HP: 60 – 130hp (45 – 97kW)
Power take-off speed: 540 / 1000rpm
Gearbox: Cast iron housing with integrated enclosed connecting shaft
Input shaft: 1 3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 1.2 litres (2.1 pints)
Belt quantity: 5
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail: Heavy duty hammer flail
Flail quantity: 28
Flail tip speed: 48 m/s (9448 fpm)
Rotor diameter: 159mm (6 1/4″)
Roller diameter: 140mm (5 1/2″)
*Weights may vary dependent on machine type and specification
**Top of cowl to floor
**Top of cowl to floor
Minimum weight guide: 2900kg (6393lbs)
Machine weight*: 620kg (1367lbs)
Hitch: Cat 2 with floating clevis top link
Hitch position: Rear mount only
Cutting width: 2.50m (8′ 2″)
Overall width:2.70m (8′ 10″)
Overall length: 0.95m (3′ 2″)
Cowl height**: 480mm (1′ 7″)
Cutting height: 15mm – 65mm (9/16″ – 2 9/16″)
Cutting capacity: 40mm (1 9/16″)
Maximum offset distance: 400mm (1′ 4″)
Offset type: Hydraulic
Recommended Tractor HP: 80 – 130hp (60 – 97kW)
Power take-off speed: 540 / 1000rpm
Gearbox: Cast iron housing with integrated enclosed connecting shaft
Input shaft: 1 3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 1.2 litres (2.1 pints)
Belt quantity: 5
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail: Heavy duty hammer flail
Flail quantity: 32
Flail tip speed: 48 m/s (9448 fpm)
Rotor diameter: 159mm (6 1/4″)
Roller diameter: 140mm (5 1/2″)
*Weights may vary dependent on machine type and specification
**Top of cowl to floor
**Top of cowl to floor
Minimum weight guide: 2900kg (6393lbs)
Machine weight*: 670kg (1477lbs)
Hitch: Cat 2 with floating clevis top link
Hitch position: Rear mount only
Cutting width: 2.70m (8′ 10″)
Overall width:2.90m (9′ 6″)
Overall length: 0.95m (3′ 2″)
Cowl height: 480mm (1′ 7″)
Cutting height: 15mm – 65mm (9/16″ – 2 9/16″)
Cutting capacity: 40mm (1 9/16″)
Maximum offset distance: 400mm (1′ 4″)
Offset type: Hydraulic
Recommended Tractor HP: 80 – 130hp (60 – 97kW)
Power take-off speed: 540 / 1000rpm
Gearbox: Cast iron housing with integrated enclosed connecting shaft
Input shaft: 1 3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 1.2 litres (2.1 pints)
Belt quantity: 5
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail: Heavy duty hammer flail
Flail quantity: 34
Flail tip speed: 48 m/s (9448 fpm)
Rotor diameter: 159mm (6 1/4″)
Roller diameter: 140mm (5 1/2″)
*Weights may vary dependent on machine type and specification
**Top of cowl to floor
**Top of cowl to floor
