Machine weight*: 3660kg / 8069lbs
Hitch: Multi-positional drawbar
Cutting width: 7.26m / 23′ 10″
Working machine width: 7.44m / 24′ 5″
Transport machine width: 2.97m / 9′ 9″
Maximum working length: 6.49m / 21′ 5″
Transport length: 6.42m / 21′ 1″
Transport height: 3.32m / 10′ 11″
Deck height**: 0.26m / 10″
Cutting height: 25mm – 400mm (1″ – 16″)
Cutting capacity: 100mm / 4″ diameter
Wing working angles: 30° up / 7.5° down
Recommended tractor HP: 160hp / 119kW
Power take-off speed: 1000rpm
Gearbox [splitter]: Cast Iron housing
Gearbox [rotor gearbox (x5)]: Cast Iron housing
Input shaft: 1-3/8″ Z21 or Z6 SFT 8 tractor end or 1-3/4″ Z20 or Z6 SFT 8 tractor end
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity [splitter gearbox]: 2.7 litres / 4.7 pints
Gearbox oil capacity [rotor gearboxes (x5)]: 2.1 litres / 3.7 pints
Deck construction: All welded construction
Deck material thickness: 3mm (1/8″)
Side skirt material thickness: 8mm (5/16″)
Skid construction: Replaceable bolt on skid shoes
Anti-scalp dish: 5mm (3/16″) round pan with blade holder bar

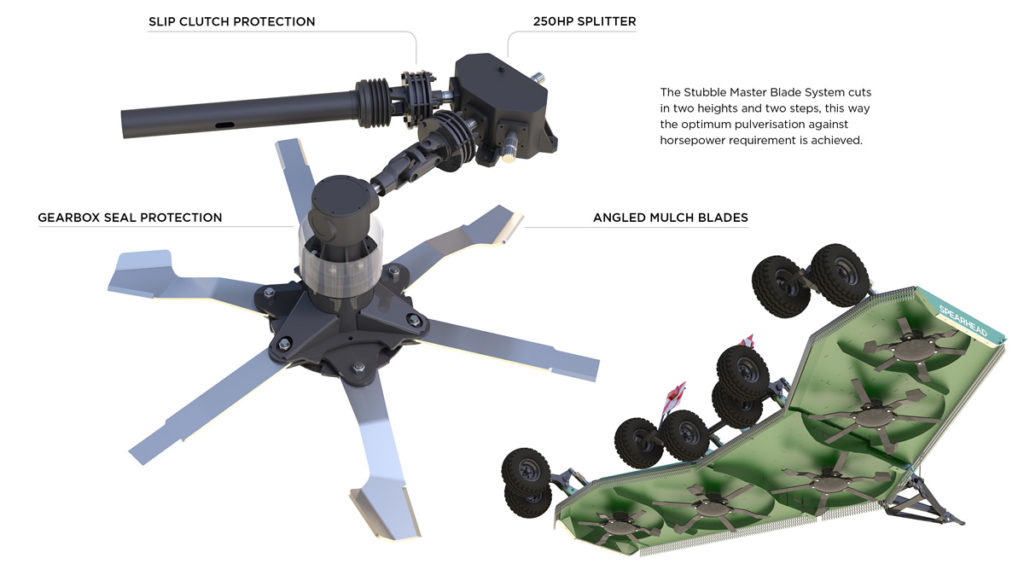

Blades Standard (x15): 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction. Handed.
Blades Starcut (x15): 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction. Non-Handed.
Blade bolts: M24 C/W shank grade 8.8
Blade tip speed: 81mps / 15944fpm
Driveline: ASAE Category 6
Driveline protection: 2/4-way slip clutches on rotor gearboxes. Overrun on input shaft
Centre deck tailwheel mount assembly: Tubular welded walking axles
Tailwheels (x8): 7.00-12 pneumatic tyre with steel hub
Front guard: Single chain guards on each deck
Rear guard: Single chain guards on each deck
*With front and rear single chain guards
**Underside of deck to skid
