Overview
We designed this model with ultimate durability in mind. A heavy-duty mower, it’s also ideal for wetter land and stubble management.
Eight wide rugged wheels, hydragas suspension, and a high-strength walking axle improve floatation on tricky terrain. Tackling 6.3 metres in one pass, five rotors operate our six-blade Starcut system. This is performance personified.
Easy to maintain, you’ll welcome the flat topskin and single splitter gearbox guard. Plus, the wings fold to over-centre for stable road transportation.
- Heavy-duty performance mower and stubble manager.
- Enhanced floatation.
- Easy maintenance features.
| AGRICULTURE |
| PASTURE |
| LIGHT SCRUB |
| HEAVY SCRUB |
| STUBBLE MANAGEMENT |

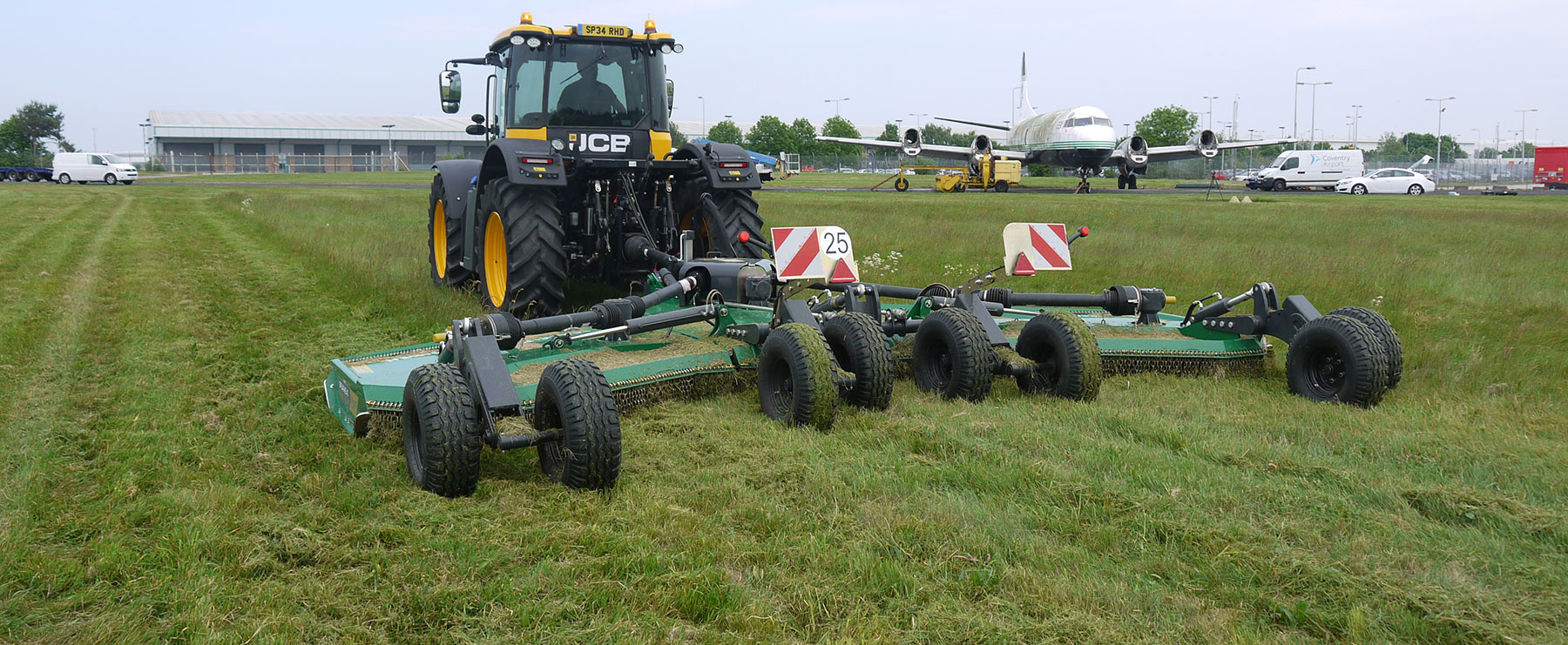

| AIRFIELD |
| HIGHWAYS |

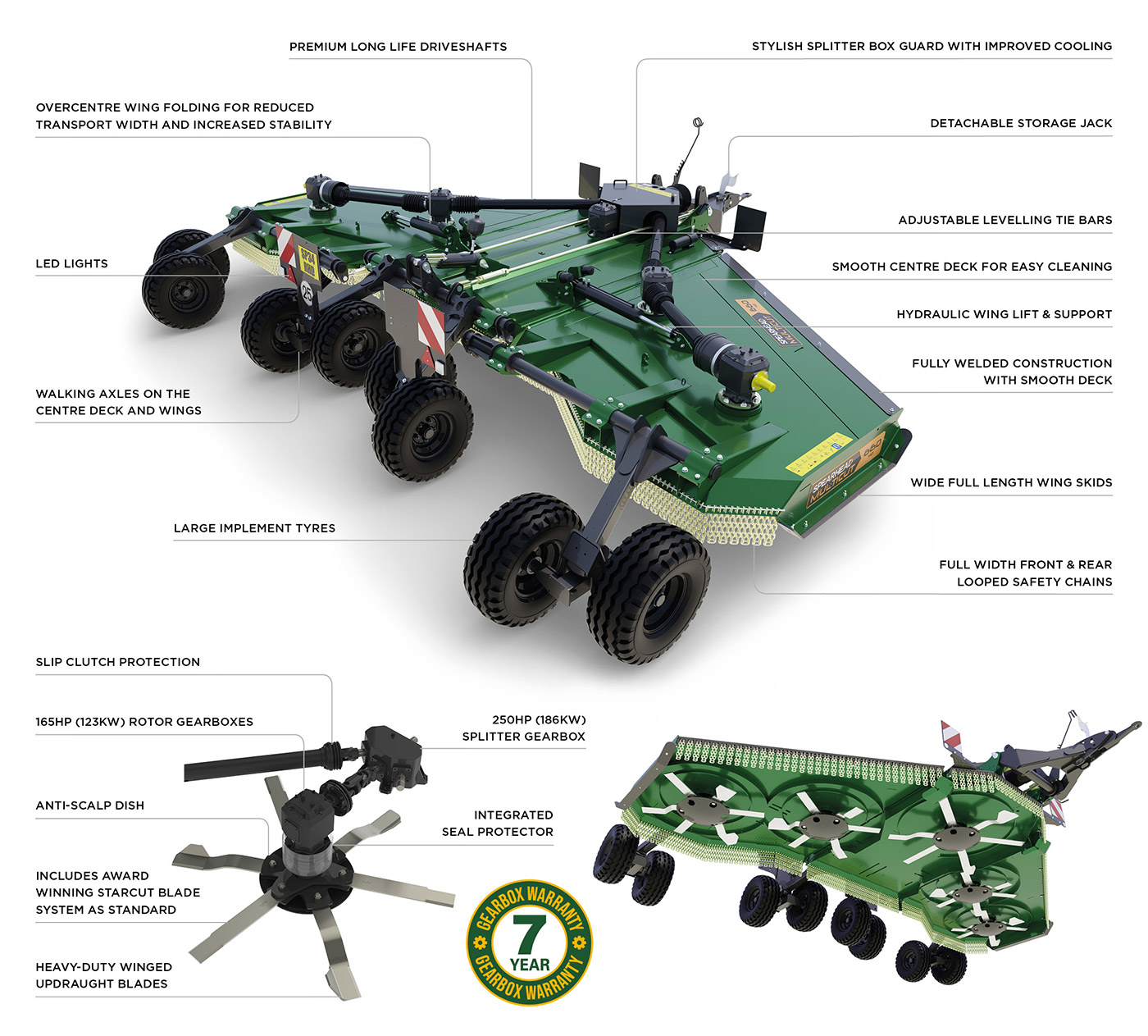

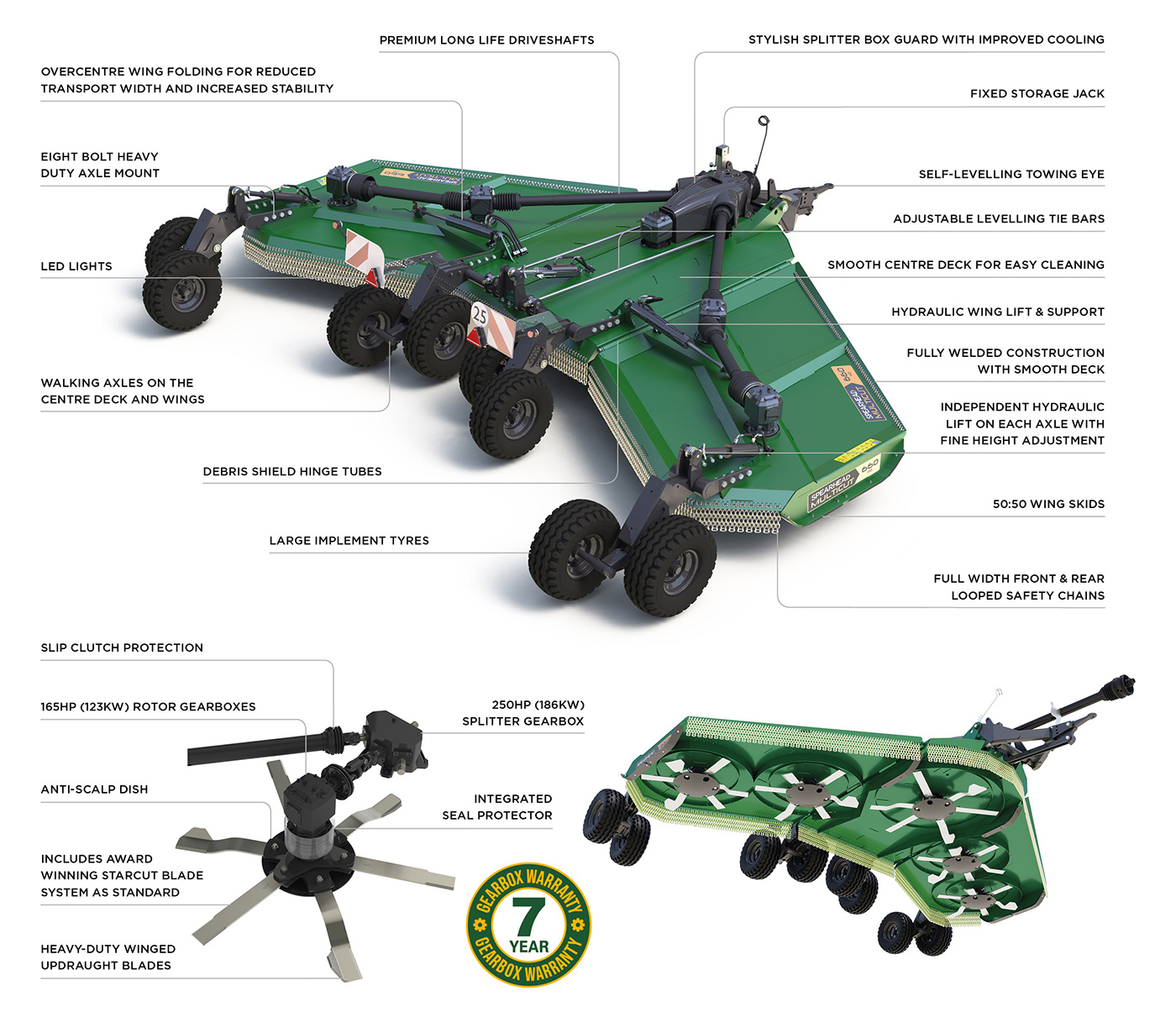

Features
Standard Specification
Machine weight*: 3850kg (8488lbs)
Hitch: Multi-positional drawbar
Cutting width: 6.31m (20′ 8″)
Working machine width: 6.51m (21′ 4″)
Transport machine width: 2.33m (7′ 8″)
Maximum working length: 5.80m (19′ 1″)
Transport length: 5.66m (18′ 7″)
Deck height**: 0.30m (1′)
Transport height: 3.10m (10′ 2″)
Cutting height: 0mm – 495mm (0″ – 19 1/2″)
Cutting capacity: 100mm (4″)
Wing working angles: 45° up / 15° down
Recommended tractor HP: 120hp (89kW)
Power take-off speed: 1000 rpm
Gearbox(es): 6 x Cast iron housing
Input shaft: 1 3/8″ Z21 or Z6 SFT 8 tractor end
Gearbox lubricant [rotor]: 85W-140 oil
Gearbox lubricant [splitter]: 85W-140 oil
Gearbox oil capacity [splitter gearbox]: 3.5 litres (6.1 pints)
Gearbox oil capacity [centre gearbox]: 4.3 litres (7.6 pints)
Gearbox oil capacity [wing gearboxes]: 4 x 4.3 litres (7.6 pints)
Deck construction: All welded construction
Deck material thickness: 5mm (3/16″)
Side skirt material thickness: 6mm (1/4″)
Skid construction: Replaceable bolt on skid shoes
Anti-scalp dish: 6mm (1/4″) round pan with blade holder bar
Blades standard: 15 x 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction
Blades starcut: 15 x 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging low friction – non-handed
Blade bolts: M24 C/W shank grade 8.8
Blade tip speed: 93mps (18307 fpm)
Driveline: ASAE Category 6
Driveline protection: 2/4-way slip clutches on rotor gearboxes. Overrun on input shaft
Tailwheel mount assemblies: Tubular welded walking axles
Tailwheels***: 8 x 10.0 / 80 x 12 – AW – 909 TL 10 PLY pneumatic tyre with steel rim
Front guard: Looped chain guards on each deck
Rear guard: Looped chain guards on each deck
Options: 6, 21 or 8 spline input driveshaft / Standard, swivel eye or K80 towing eyes / Front flap kit / Front guide wheel kit
* Weights may vary dependent on machine specification
** Underside of deck to skid
*** Standard fitment, other options available
