Overview
When you want to handle over 100 hectares a day, choose our largest Multicut. With an 8.1 metre working width, coupled with key Spearhead deck features output is certainly not a problem.
Giving you the perfect balance of performance and comfort, we’ve packed this giant Pro-line with features. Five rotors operate the six-blade Starcut system, and all five rotor gearboxes have slip clutch protection.
Everything about this machine delivers more. Like the hydragas suspension and extra-large wheels. And the flat topskin that prevents debris build-up. You’ll enjoy the results after a day cutting the 830.
- Ultimate performance with an 8.1 metre working width.
- 30 Starcut blades over five rotors.
- Incredibly smooth ride from a giant machine.
| AGRICULTURE |
| PASTURE |
| LIGHT SCRUB |
| HEAVY SCRUB |
| STUBBLE MANAGEMENT |
| AIRFIELD |
| HIGHWAYS |

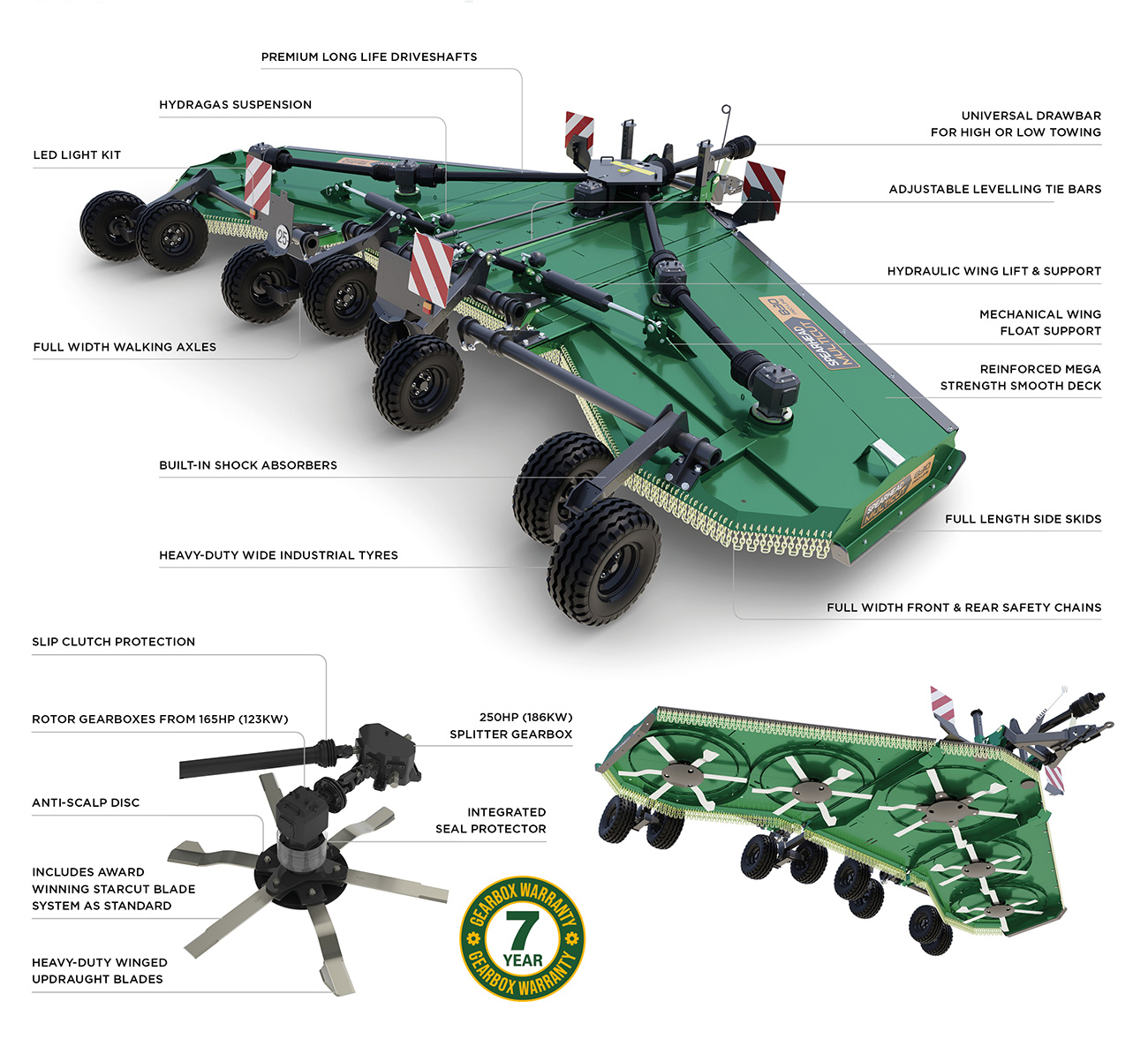

Features
Specifications
Machine weight*: 4800kg (10582lbs)
Hitch: Multi-positional drawbar
Cutting width: 8.06m (26′ 5″)
Working machine width: 8.26m (27′ 1″)
Transport machine width: 2.81m (9′ 3″)
Maximum working length: 6.33m (20 9″)
Transport length: 6.07m (19′ 11″)
Deck height**: 0.24m (10″)
Transport height: 3.78m (12′ 5″)
Cutting height: 25mm – 400mm (1″ – 15 3/4″)
Cutting capacity: 100mm (4″)
Wing working angles: 45° up / 15° down
Recommended tractor HP: 150hp (112kW)
Power take-off speed: 1000rpm
Gearbox(es): 6 x Cast Iron housing
Input shaft: 1 3/8″ Z20 SFT 10 tractor end
Gearbox lubricant [splitter]: EP80-90W or GL-4 / GL-5 oil
Gearbox lubricant [rotor]: 85W-140 oil
Gearbox oil capacity [splitter gearbox]: 2.7 litres (4.7 pints)
Gearbox oil capacity [centre gearboxes]: TBC
Gearbox oil capacity [rotor gearboxes]: 4 x 4.3 litres (7.6 pints)
Deck construction: All welded construction
Deck material thickness: 5mm (3/16″)
Side skirt material thickness: 6mm (1/4″)
Skid construction: Replaceable bolt on skid shoes
Anti-scalp dish: 6mm (1/4″) round pan with blade holder bar
Blades standard: 15 x 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction. Handed
Blades Starcut: 15 x 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction. Non-handed
Blade bolts: M24 C/W shank grade 8.8
Blade tip speed: 79mps (15551fpm)
Driveline: ASAE Category 8
Driveline protection: 2/4-way slip clutches on rotor gearboxes. Overrun on input shaft
Tailwheel mount assemblies: Tubular welded axles
Tailwheels: 8 x 10.0/80 x 12 – AW – 909 TL 10 PLY pneumatic tyre with steel rim***
Front guard: Looped chain guards on each deck
Rear guard: Looped chain guards on each deck
Options: 20, 6 or 21 spline input driveshaft / Swivel eye or K80 towing eyes / Front flap kit / Rear drawbar kit & hoses / Air brakes
* Weights may vary dependent on machine specification
** Underside of deck to skid
*** Standard fitment, other options available
