Overview
Ideal for farmers and contractors who need a compact machine, the Stubble Master 500 provides a perfect balance.

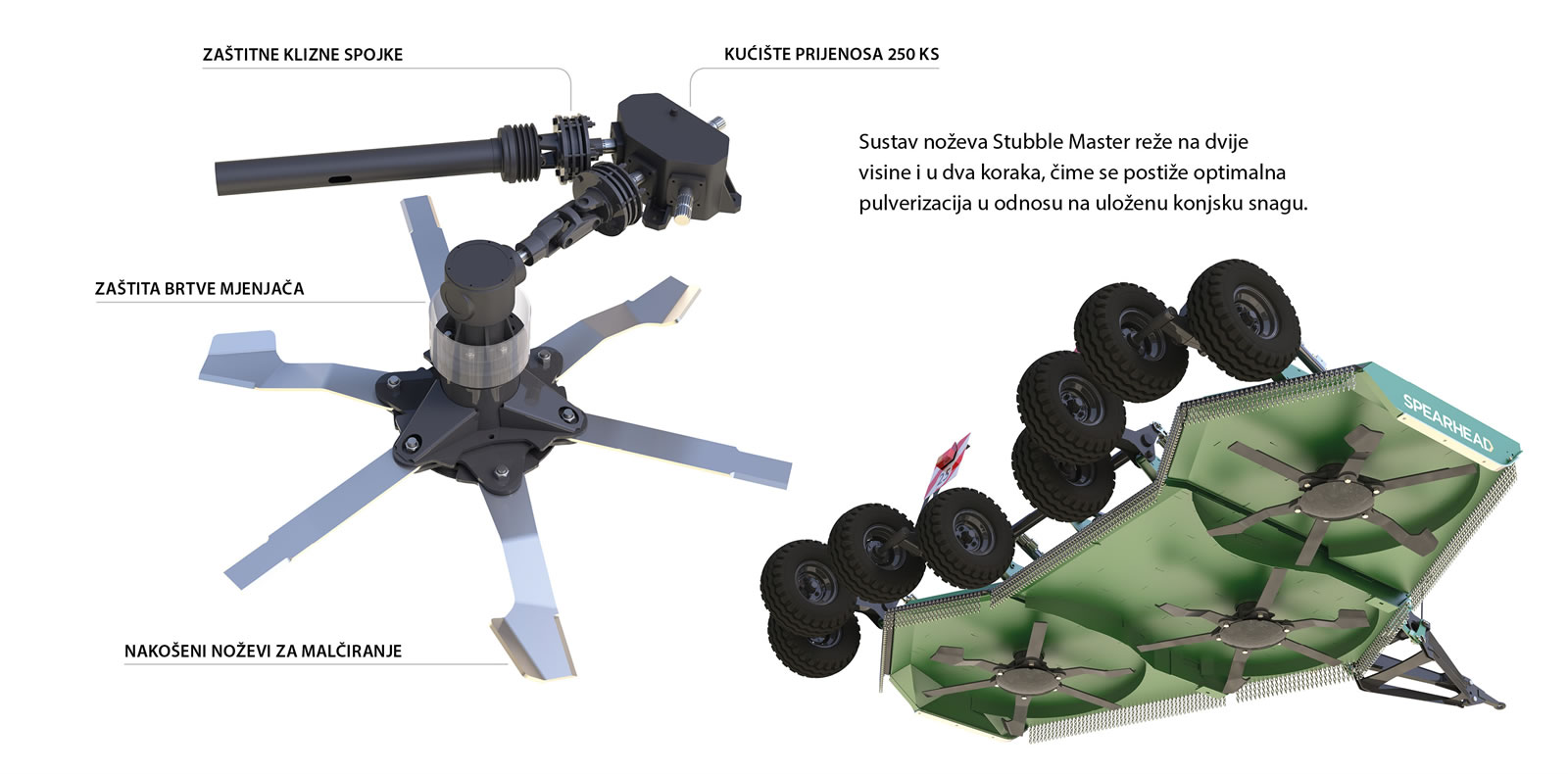

Cutting five metres in one pass, it charges through your stubble – three rotors each handling six blades. Clever angles flare the material and promote faster decomposition.
Stubble Master boasts a monocoque structure. With an enhanced weight to strength ratio, it absorbs impact while improving fuel efficiency.
- A compact workhorse to support farmers and contractors.
- Angled blades speed up decomposition.
- Easy cleaning thanks to flat upper (and under) deck.
Watch the video
| AGRICULTURE |
| PASTURE |
| LIGHT SCRUB |
| HEAVY SCRUB |
| AIRFIELD |
| STUBBLE MANAGEMENT |

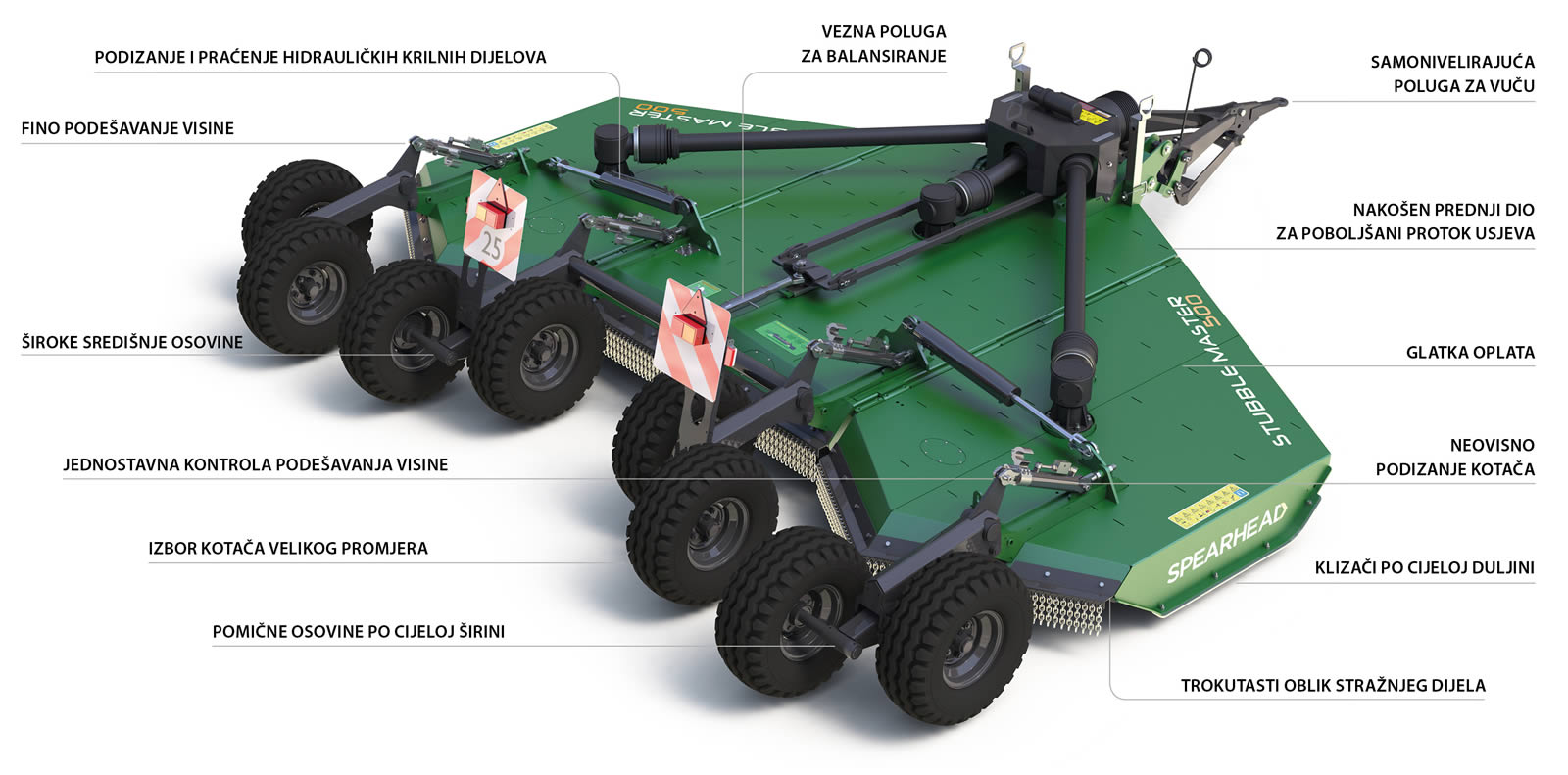

Features
Specifications
STUBBLE MASTER 500 WORKING DIMENSIONS
STUBBLE MASTER 500 TRANSPORT DIMENSIONS
Machine weight*: 2920kg (6438lbs)
Hitch: Multi-positional drawbar
Cutting width: 5.06m (16′ 7″)
Working machine width: 5.20m (17′ 1″)
Transport machine width: 2.97m (9′ 9″)
Maximum working length: 5.83m (19′ 2″)
Transport length: 5.78m (19′)
Transport height: 2.19m (7′ 3″)
Deck height**: 0.26m (11″)
Cutting height: 0mm – 300mm (0″ – 11 13/16″)
Cutting capacity: 100mm (4″)
Recommended tractor HP: 120hp (89kW)
Wing working angles: 30° up / 7.5° down
Power take-off speed: 1000rpm
Gearbox(es): 4 x Cast Iron housing
Input shaft: 1 3/8″ Z21 or Z6 SFT 8 tractor end or 1 3/4″ Z20 or Z6 SFT 8 tractor end
Gearbox lubricant [splitter]: EP80-90W or GL-4 / GL-5 oil
Gearbox lubricant [rotor]: 85W-140 oil
Gearbox oil capacity [splitter gearbox]: 3.5 litres (6.2 pints)
Gearbox oil capacity [rotor gearboxes]: 3 x 4.3 litres (7.6 pints)
Deck construction: All welded construction
Deck material thickness: 3mm (1/8″)
Side skirt material thickness: 8mm (5/16″)
Skid construction: Replaceable bolt on skid shoes
Anti-scalp dish: 5mm (3/16″) with blade holder bar
Blades Standard: 9 x 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction. Handed.
Blades Starcut: 9 x 12mm (1/2″) 30 Carbon Boron hardened and tempered. Free swinging high lift – low friction. Non-handed.
Blade bolts: M24 C/W shank grade 8.8
Blade tip speed: 80mps (15748fpm)
Driveline: ASAE Category 5
Driveline protection: 2-way slip clutch on rotor gearboxes. Overrun on input shaft
Tailwheel mount assemblies: Tubular welded walking axles
Tailwheels: 8 x 265/70 R16.5 stubble resistant tyre with steel rim on rear
Front guard: Looped chain guards on each deck
Rear guard: Looped chain guards on each deck
Options: 20, 6 or 21 spline input driveshaft / Standard, swivel eye or K80 towing eye / Front flap kit / Rear drawbar kit & hoses / Air brakes
* Weight may vary dependent on machine specification
** Underside of deck to skid
