Der Sniper Offset-Schlegelmäher ist für den Einsatz an Böschungen und Hängen konzipiert und bietet eine hohe Qualität und einen gleichmäßigen Schnitt bei Material bis zu 40 mm. Es ist die perfekte Wahl für die Pflege und Instandhaltung von Pflanzbereichen an Wasserstraßen und Autobahnen.

Die Sniper Offset-Reihe ist in Arbeitsbreiten zwischen 1,6 und 2,3 Metern erhältlich, mit zusätzlicher Betriebsflexibilität durch variable parallele Verstellarme bis zu einem Maximum von 1,5 m, um der Arbeitsumgebung gerecht zu werden. Darüber hinaus verfügt die Maschine über eine verstellbare Aufhängung, um das Nachfolgen von Bodenkonturen zu erleichtern.

Diese robuste Maschine verfügt über hochbelastbare Hammerschlegel, die auf einem elektronisch ausgewuchteten Rotor angebracht sind, der auf gekapselten, selbstausrichtenden Lagern montiert ist. Der Riemenantrieb sorgt für eine zuverlässige Kraftübertragung und eine 140 mm breite, einstellbare und selbstreinigende Heckwalze mit Abstreifer und Gummischürze sorgt für einen Qualitätsschnitt und eine gut verteilte Oberfläche.

LANDWIRTSCHAFT
WEIDEN
EINRICHTUNGEN
LEICHTES GESTRÜPP
AUTOBAHNEN
WASSER­STRASSEN

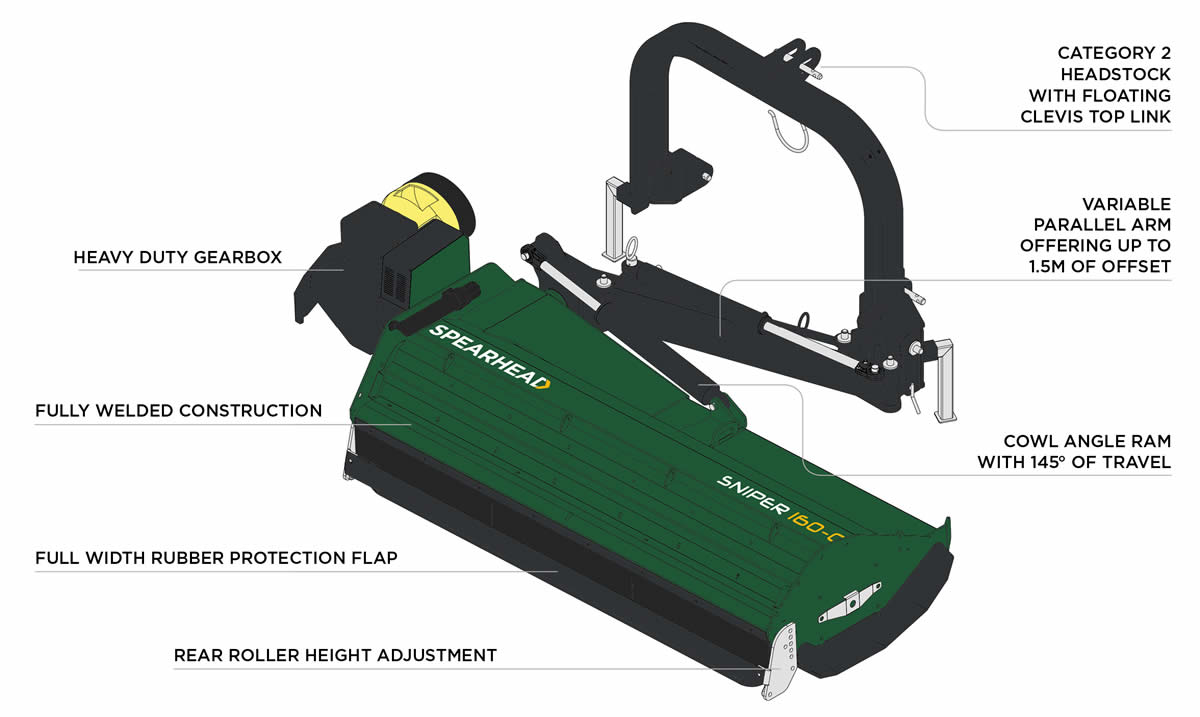

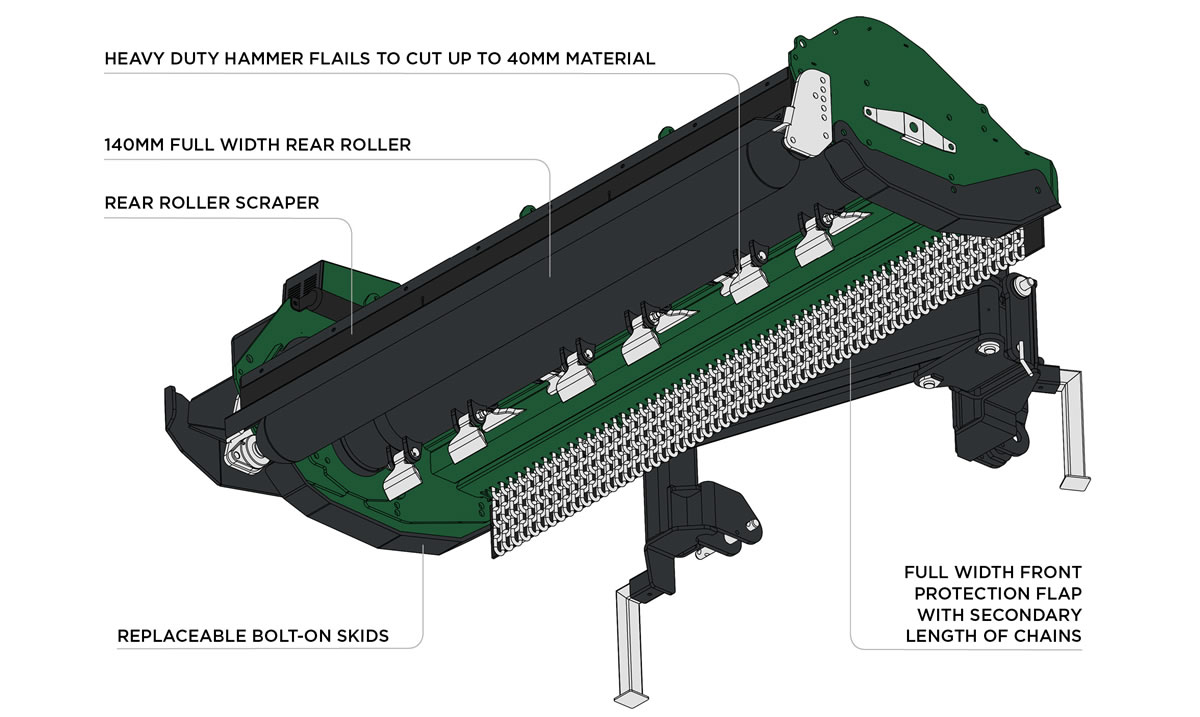

MERKMALE

Sniper Flail Offset Mower
Sniper Flail Offset Mower

TECHNISCHE DATEN

Machine weight: 680kg (1499lbs)
Hitch: Cat 2 with floating clevis top link
Hitch position: Rear mount only
Cutting width: 1.60m (5′ 3″)
Working width:2.18m (7′ 2″)
Overall length: 1.68m (5′ 6″)
Cowl height: 480mm (1′ 7″)
Transport width: 1.55m (5′ 2″)
Transport height: 2.19m (7′ 3″)
Cutting height: 10mm – 30mm (0.4″ – 1.2″)
Cutting capacity: 40mm (1.6″)
Maximum offset distance: 1.46m (4′ 9″)
Wing working angles: 90° up/55° down
Recommended tractor HP: 80hp (60kW)
Power take-off speed: 540/1000rpm
Gearbox: Cast iron housing
Input shaft: 1-3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 1.2 litres (2.1 pints)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail: Heavy duty hammer flail
Flail quantity: 20
Flail tip speed: 48m/s (9448 fpm)
Rotor diameter: 159mm (6.3″)
Roller diameter: 140mm (5.5″)
Number of belts: 3

Machine weight: 710kg (1565lbs)
Hitch: Cat 2 with floating clevis top link
Hitch position: Rear mount only
Cutting width: 1.90m (6′ 3″)
Working width:2.48m (8′ 2″)
Overall length: 1.68m (5′ 6″)
Cowl height: 480mm (1′ 7″)
Transport width: 1.55m (5′ 2″)
Transport height: 2.49m (8′ 3″)
Cutting height: 10mm – 30mm (0.4″ – 1.2″)
Cutting capacity: 40mm (1.6″)
Maximum offset distance: 1.46m (4′ 9″)
Wing working angles: 90° up/55° down
Recommended tractor HP: 90hp (67kW)
Power take-off speed: 540/1000rpm
Gearbox: Cast iron housing
Input shaft: 1-3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 1.2 litres (2.1 pints)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail: Heavy duty hammer flail
Flail quantity: 24
Flail tip speed: 48m/s (9448 fpm)
Rotor diameter: 159mm (6.3″)
Roller diameter: 140mm (5.5″)
Number of belts: 4

Machine weight: 790kg (1742lbs)
Hitch: Cat 2 with floating clevis top link
Hitch position: Rear mount only
Cutting width: 2.25m (7′ 5″)
Working width:2.73m (9′)
Overall length: 1.68m (5′ 6″)
Cowl height: 480mm (1′ 7″)
Transport width: 1.55m (5′ 2″)
Transport height: 2.79m (9′ 2″)
Cutting height: 10mm – 30mm (0.4″ – 1.2″)
Cutting capacity: 40mm (1.6″)
Maximum offset distance: 1.51m (4′ 11″)
Wing working angles: 90° up/55° down
Recommended tractor HP: 100hp (75kW)
Power take-off speed: 540/1000rpm
Gearbox: Cast iron housing
Input shaft: 1-3/8″ Z6
Gearbox lubricant: EP80-90W or GL-4 / GL-5 oil
Gearbox oil capacity: 1.2 litres (2.1 pints)
Cowl construction: All welded construction
Skid construction: Replaceable bolt-on skid
Flail: Heavy duty hammer flail
Flail quantity: 28
Flail tip speed: 48m/s (9448 fpm)
Rotor diameter: 159mm (6.3″)
Roller diameter: 140mm (5.5″)
Number of belts: 5
