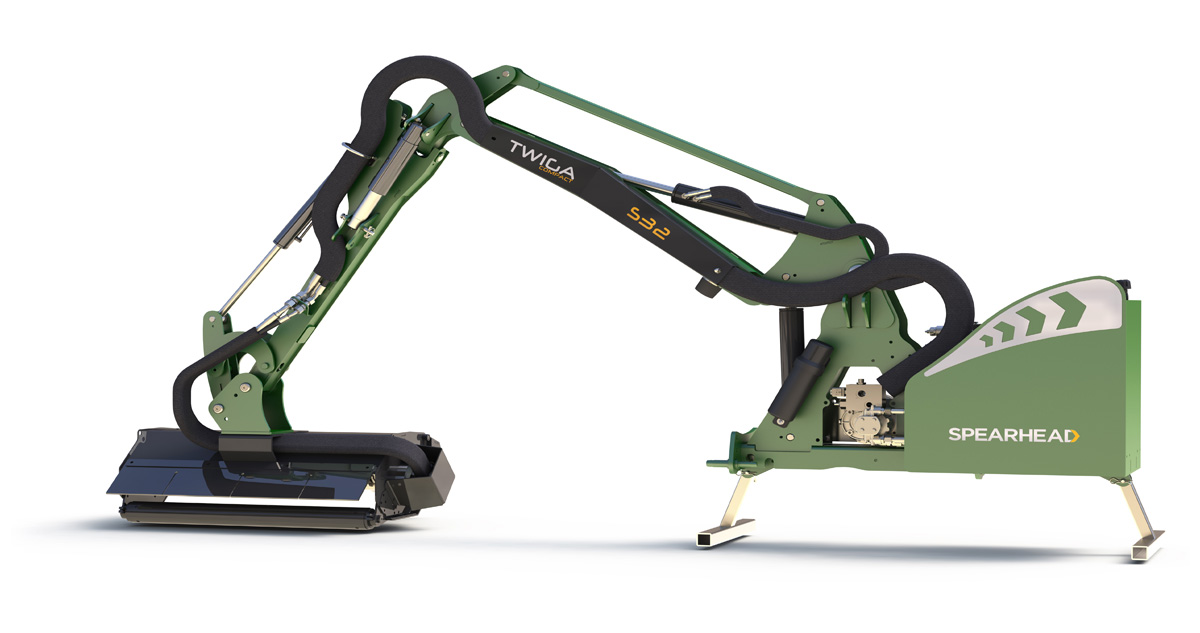

Spearhead’s Twiga Compact Series Reach Arm mower incorporates the same robust technology as larger models in the Spearhead range to bring enhanced levels of durability and reliability in a compact package.

Available with sideways reach options of 3.2, 3.6, 4.2 and 4.6 metres and a choice of front or rear mounting, the Twiga Compact Series is specified with a potent 35hp hydraulic system that provides exceptional output.

The Twiga Compact Series is offered with either Progressive Cable or Minipilot Electric Proportional controls to give you responsive fingertip action of the arm and head movements.  Both options are easily fitted within the close confines of compact tractor cabs.



AGRICULTURE
AMENITY
AIRFIELD
HIGHWAYS

Options

  • Front or rear mount
  • Minipilot
  • Left or right hand build option
  • Arm float kit
  • Counterweight
  • Oil cooler kit
  • Dual direction rotot
  • Mechanical quick release kit
  • Hydraulic quick release kit
  • LED lighting kit
  • Hydraulic oil


Attachments

  • 0.9m Compact Flailhead
  • Quadsaw
  • HL Cutterbar
  • RC Rotary hedgecutter


Specifications

Tractor power required: 25hp
Tractor weight: 1300kg
Maximum reach: 3.2m (10ft 6in)
Cutting width: 0.9m (2ft 11in)
Transport width: 1.8m (5ft 11in)
Oil tank capacity: 60 litres
3-point linkage mounting: Standard
Controls: Progressive cable

Tractor power required: 25hp
Tractor weight: 1300kg
Maximum reach: 3.6m (11ft 8in)
Cutting width: 0.9m (2ft 11in)
Transport width: 2.0m (6ft 6in)
Oil tank capacity: 60 litres
3-point linkage mounting: Standard
Controls: Progressive cable

Tractor power required: 40hp
Tractor weight: 2000kg
Maximum reach: 4.2m (13ft 9in)
Cutting width: 0.9m (2ft 11in)
Transport width: 1.8m (5ft 11in)
Oil tank capacity: 60 litres
3-point linkage mounting: Standard
Controls: Progressive cable

Tractor power required: 40hp
Tractor weight: 2000kg
Maximum reach: 4.6m (15ft 1in)
Cutting width: 0.9m (2ft 11in)
Transport width: 2.5m (8ft 2in)
Oil tank capacity: 60 litres
3-point linkage mounting: Standard
Controls: Progressive cable
